Detail Zmct103c 5A / 5mA sensor transformer Arus Mikro Presisi
Feature:
Product model: ZMCT103C
Rated Input Current: 5A
Rated output current: 5mA
Ratio: 1000:1
The linear range: 0-10A(100 ohm)
Linearity :0.2%
Isolation voltage: 3000V
Uses: For Current and power measurement
Sealing material: epoxy resin
Installation method: printed board installation
Working temperature: -40 to +70 degrees
Package Include:1pc

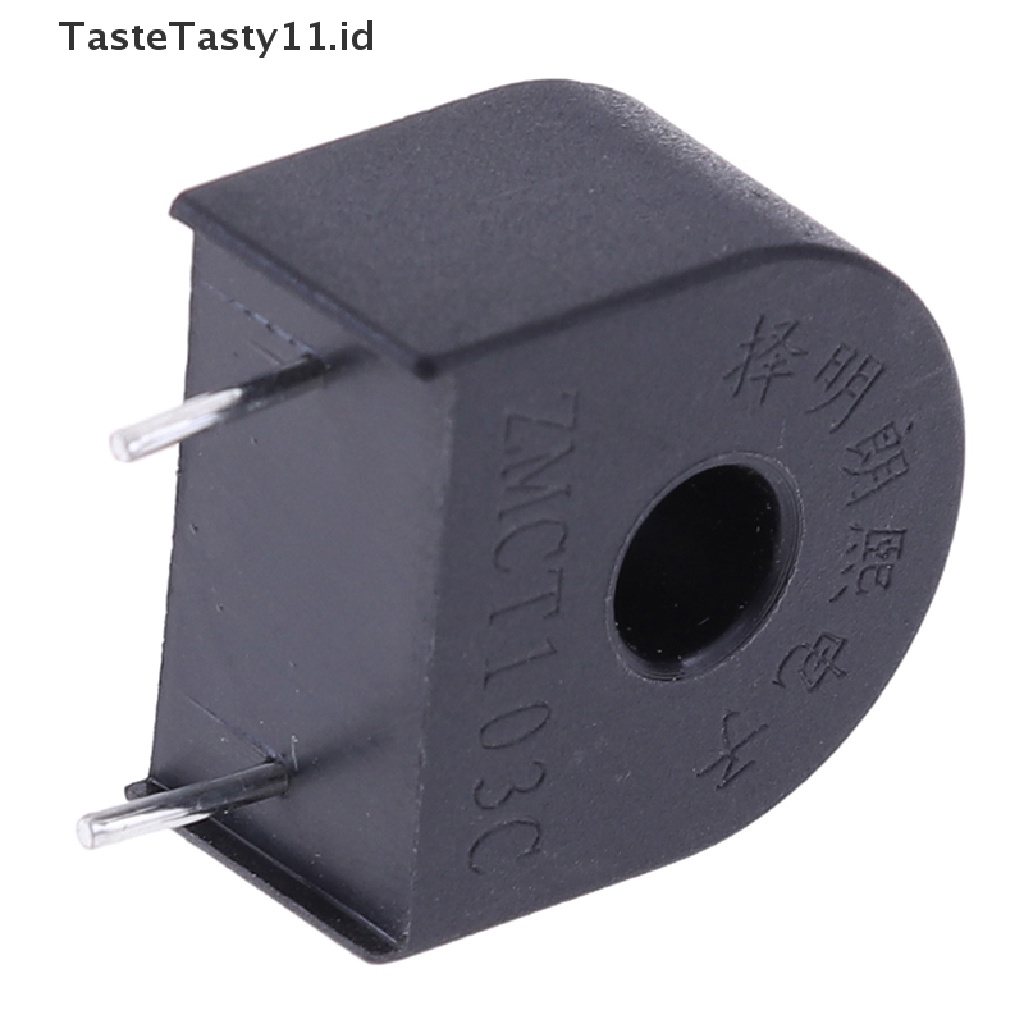

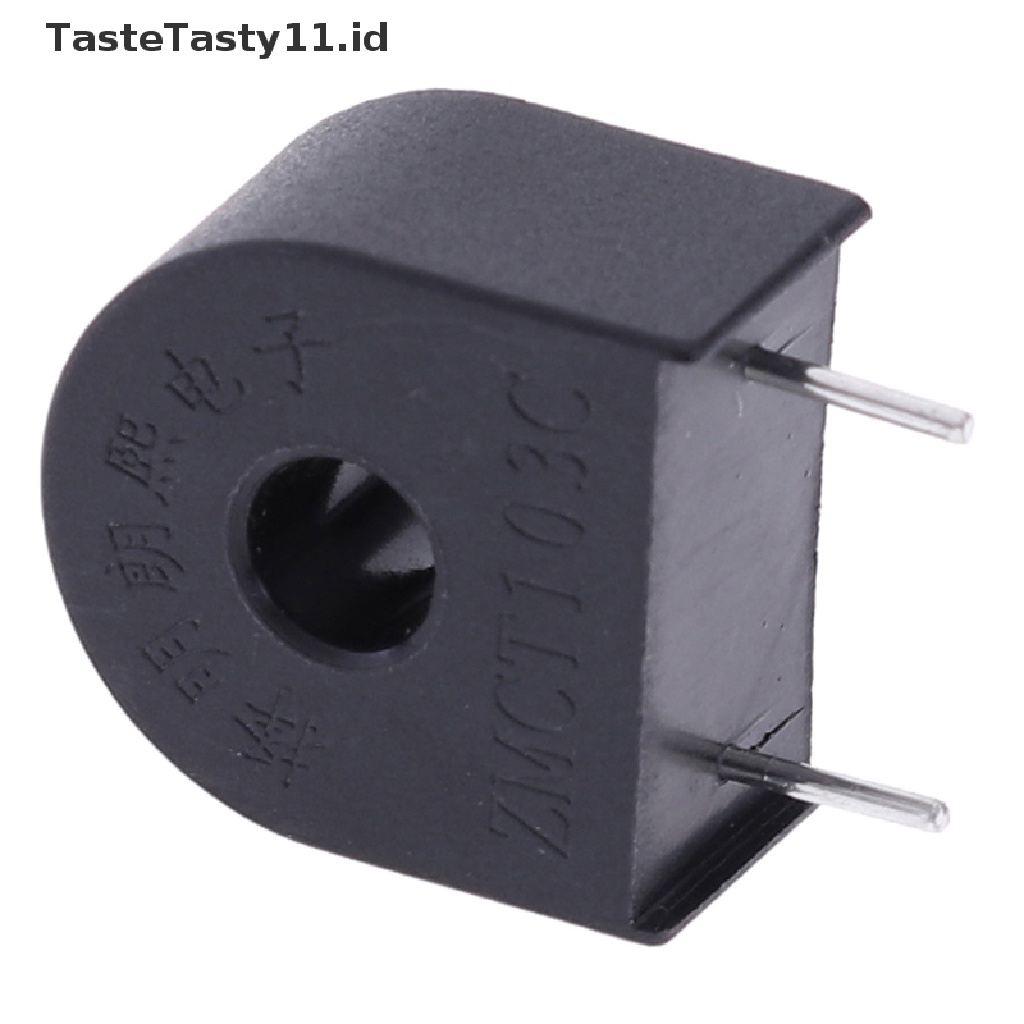

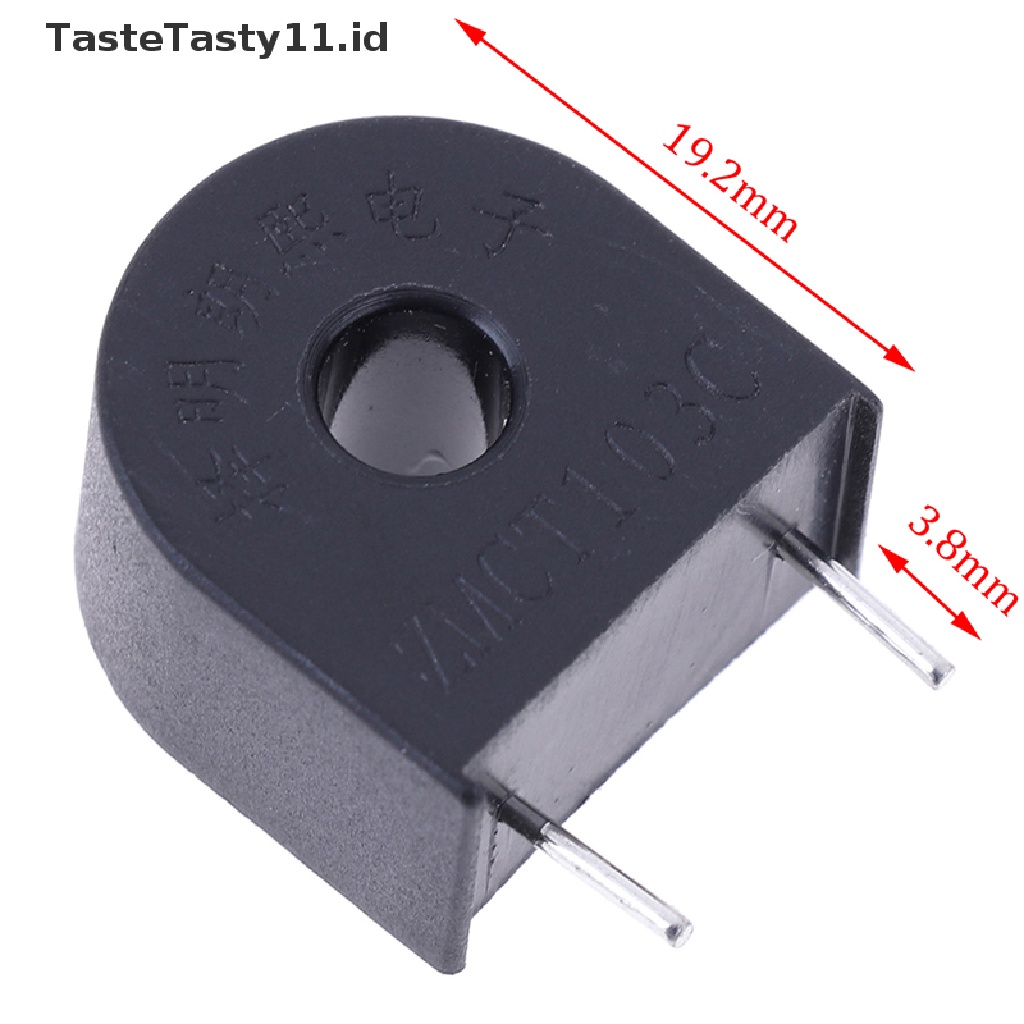

Gambar produk
Zmct103c 5A / 5mA sensor transformer Arus Mikro Presisi
Zmct103c 5A / 5mA sensor transformer Arus Mikro Presisi
Zmct103c 5A / 5mA sensor transformer Arus Mikro Presisi
