ZKTeco SLK20R USB2.0 Fingerprint Reader Scanner 2MP Sidik Jari Live20R

Detail ZKTeco SLK20R USB2.0 Fingerprint Reader Scanner 2MP Sidik Jari Live20R

ZKTeco SLK20R
-
Pemindai sidik jari merk ZKTeco.

SLK20R is a leading fingerprint scanner designed by ZKTeco USA laboratory which
adopts the advanced optical design.

It has a superior ability to do fingerprint liveness detection and capture high-quality
fingerprint images by a 2-megapixel camera. It can be the most comfortable and
affordable desktop enrollment and identification device.

Features

- Stable operation under strong light
- Support fingerprint liveness detection function
- Large fingerprint capture area and high image performance
- Quick scan of dry, wet and rough fingerprints
- High speed USB 2.0
- Low-power idle mode
- SDK available for development

# Spesifikasi

Model Name: SLK20R
Material: Optical
CPU: 280MHz DSP
Flash: 32 MB
SoC: RTOS [image out only]
Image Quality: 2-megapixel pixels CMOS
Encrypted Fingerprint Data: Yes
Water Splash Proof: Yes
Power Consumption: 5V:200mA Scanning; 5V:60mA idle (waiting for finger)
Fingerprint Liveness Detection: Yes
LED: White
Product Certifications: FCC, CE, RoHS, PIV
Power Voltage: 5V (USB)
Power Current: 200mA
Communication: USB 2.0 / USB1.1
Interface Socket: USB Type A
Image Resolution: 500 dpi
Effective Collecting Area: 15.24 * 20.32 mm (FAP20)
Collecting Area: 16.5 * 23 mm
Image Size: 300 * 400 pixels (FAP20 )
Dimensions (L * W * H): 49 * 44 * 20.1mm
Image Formats: RAW, BMP, JPG
Template: ZKFinger V10.0 ; ISO19794-2 ; ANSI-378
Template Size: 1- 4KB (ZKFinger V10.0); 1,568 B (ISO 19794-2)
Grayscale: 256 (8-bit)
Weight: 0.12kg
Operating Environment: -20 °C ~ +50 °C; 90% r.h.

SDK Bisa download electron dot id

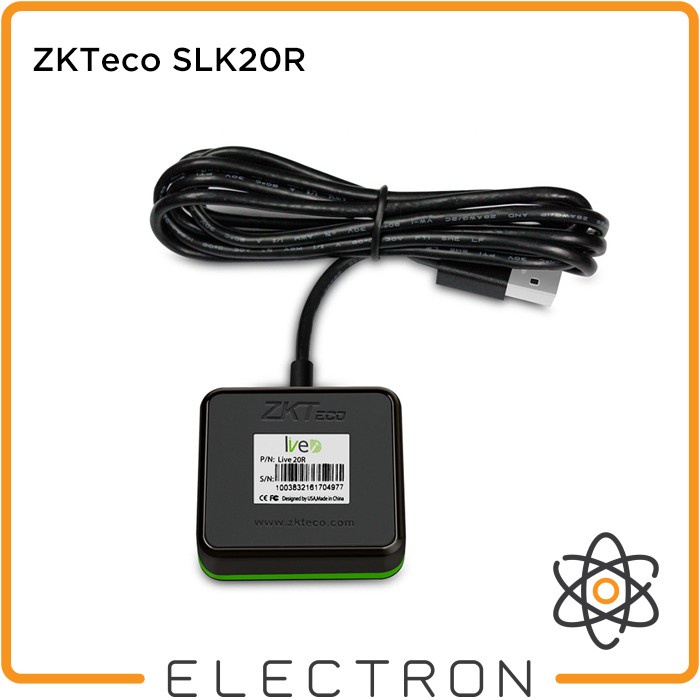

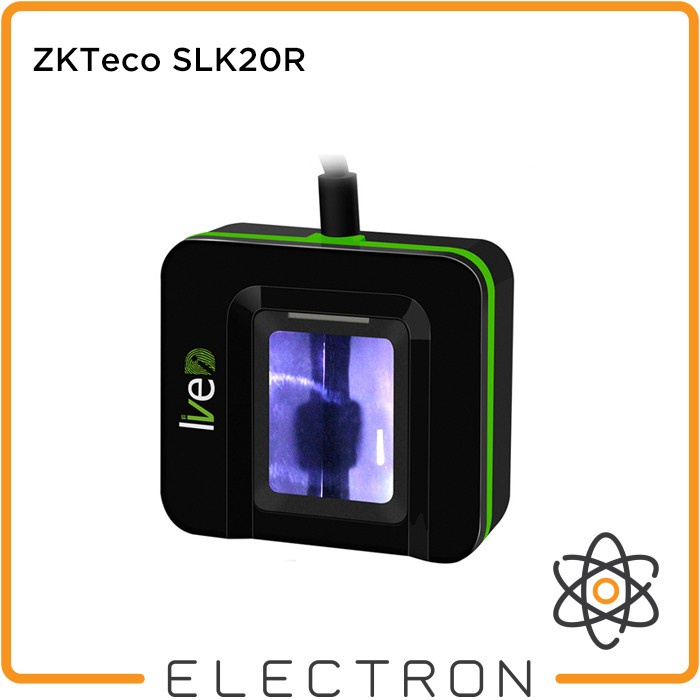

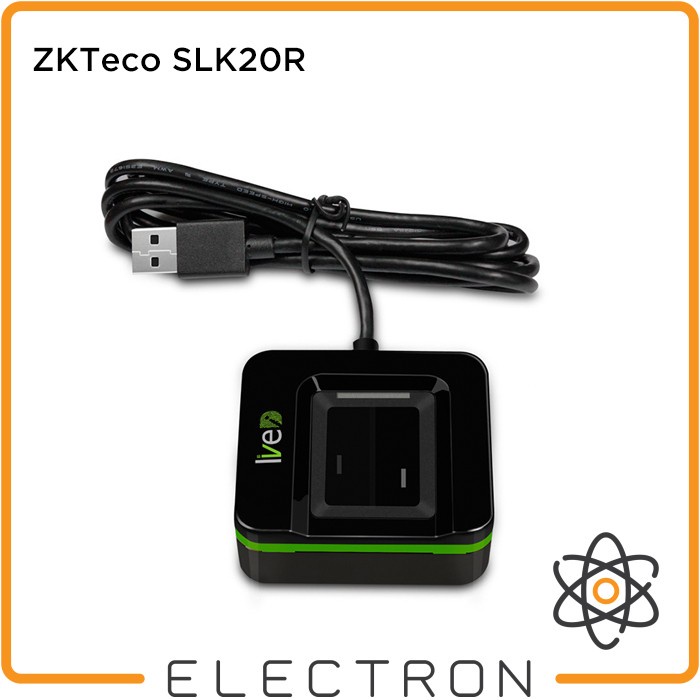

Gambar produk
