ZK-TB22P TPA3116D2 TWS Potentiometer External Connection 50W*2+100W 2.1 Channel BT 5.1 Audio Amplifier Power AMP Wuzhi Audio

Detail ZK-TB22P TPA3116D2 TWS Potentiometer External Connection 50W*2+100W 2.1 Channel BT 5.1 Audio Amplifier Power AMP Wuzhi Audio

Video perkenalan produk ZK-TB22P TPA3116D2 TWS Potentiometer External Connection 50W*2+100W 2.1 Channel BT 5.1 Audio Amplifier Power AMP Wuzhi Audio. Sumber: Shopee.

Brand: Original Wuzhi Audio
Model: ZK-TB22P
Amplifier Chip: American chip 2X TPA3116D2
Adapter Power supply: DC15~24 V, 5A-10A
Bluetooth Version: 5.1 Support TWS

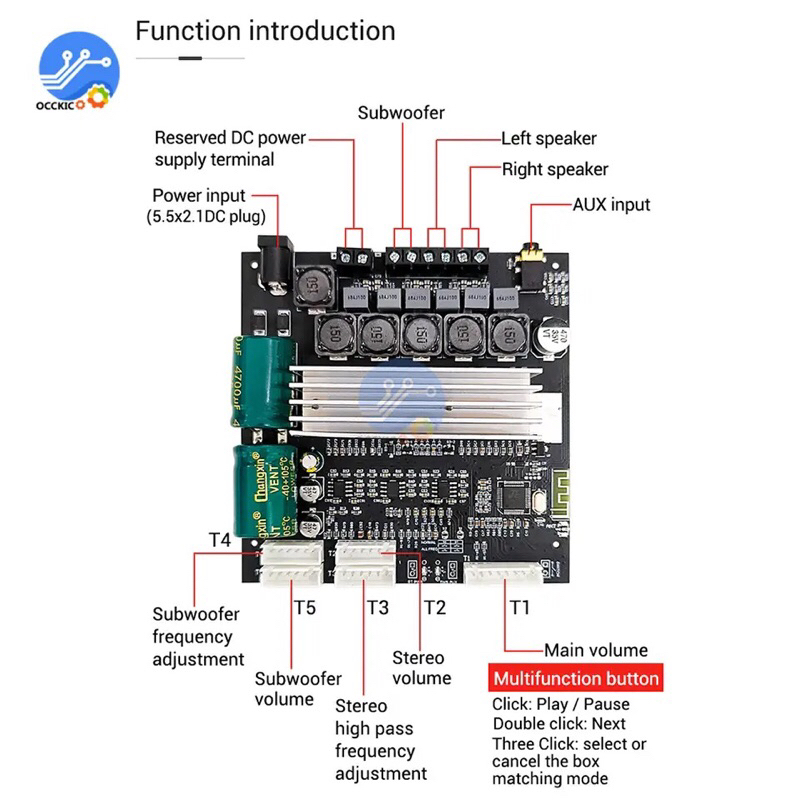

Audio Input: AUX + BT+U disk + USB sound card
Audio Output: 2.1CH 2X50W + 100W
Adapter Speaker: L&R 20-50W, 4-8O Subw20-100W, 4-8O
Protection Mechanism: Overheating, overcurrent, short circuit, anti-static protection.

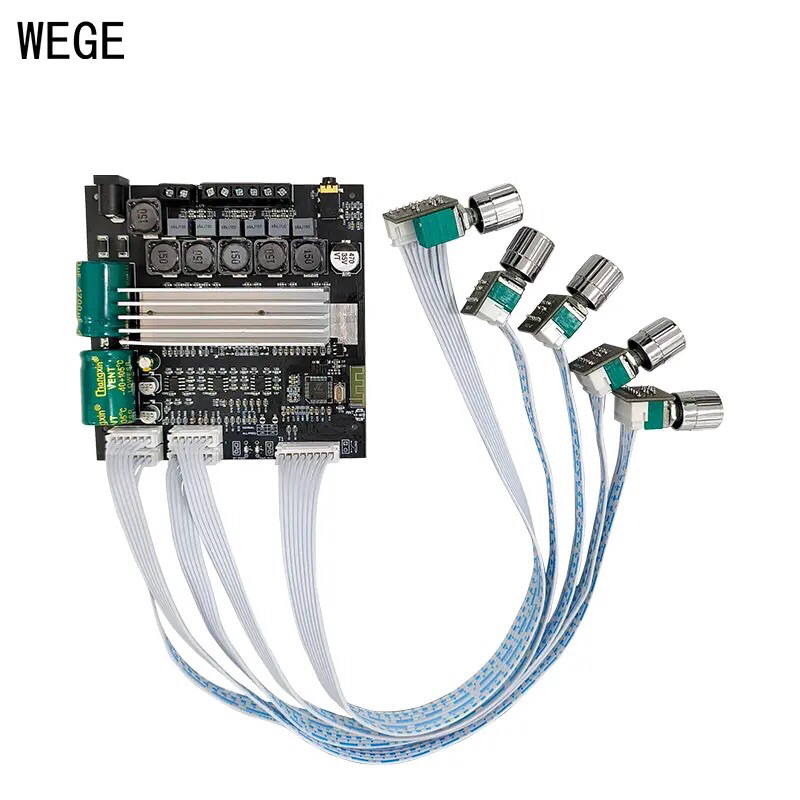

((Hubungkan Ground dari pcb ke setiap bodi potensio / di bagian mur/ring potensio ))

Product Features

1. Support Wuzhi Audio APP,
APP comes with situational music,
support to modify BT name, set BT password, prompt tone,
volume adjustment / switch prompt tone, Lullaby + timed shutdown,
sound effect adjustment, support to customize 10 sound effects,
which can be adjusted arbitrarily. USB flash disk, music selection, playlist.
2. Multiple audio input modes, BT + AUX + USB flash disk + USB sound card.

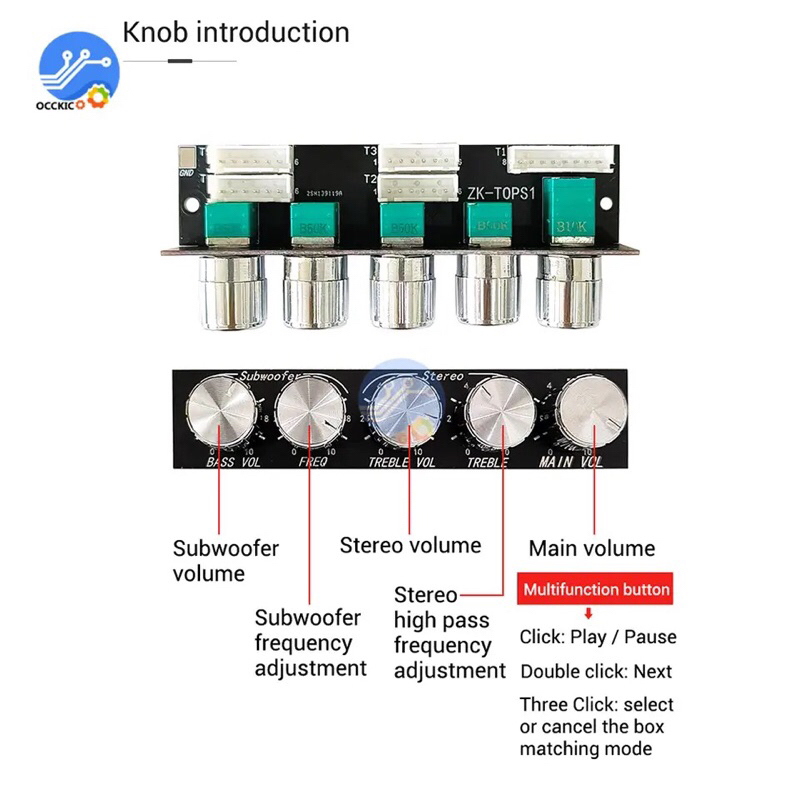

3. With treble and bass tone.

Wuzhi Audio APP Function :

- Change BT name:
- Change BT password:
This function can be turned off.
- Adjust the volume of prompt tone:
- ON / OFF prompt tone:
The prompt tone can be turned on or off.
- USB flash disk play music playlist function

Gambar produk
