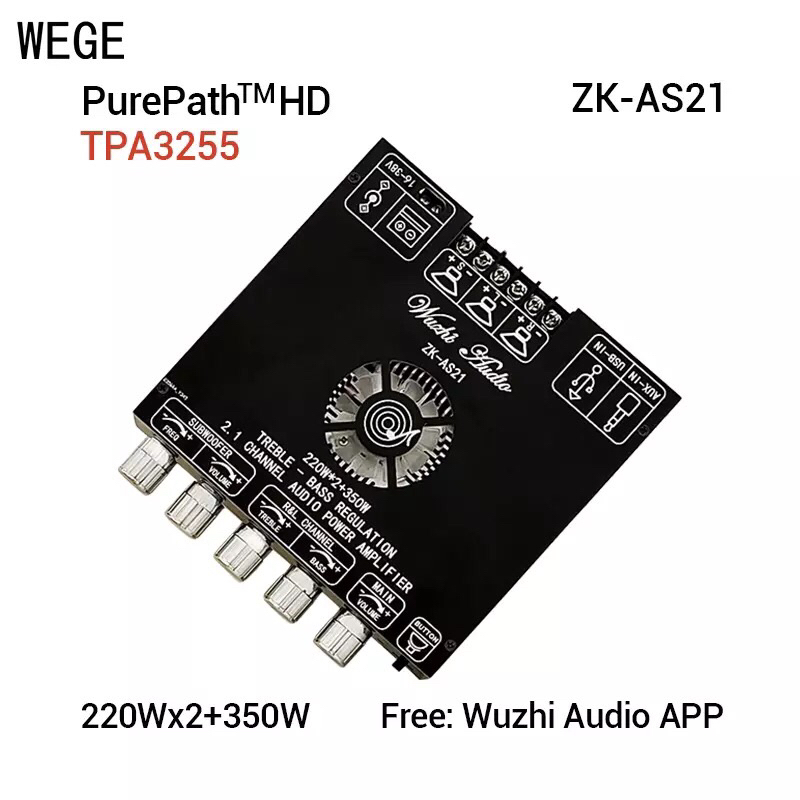

ZK-AS21 Wuzhi 2.1 Channel BT Digital Power Amplifier Board TPA3255

Detail ZK-AS21 Wuzhi 2.1 Channel BT Digital Power Amplifier Board TPA3255

Video perkenalan produk ZK-AS21 Wuzhi 2.1 Channel BT Digital Power Amplifier Board TPA3255. Sumber: Shopee.

Brand: Wuzhi Audio

( Jangan ragu karena kami memastikan barang yg di terima berfungsi dengan baik dan vidio test kita lampirkan di chat )

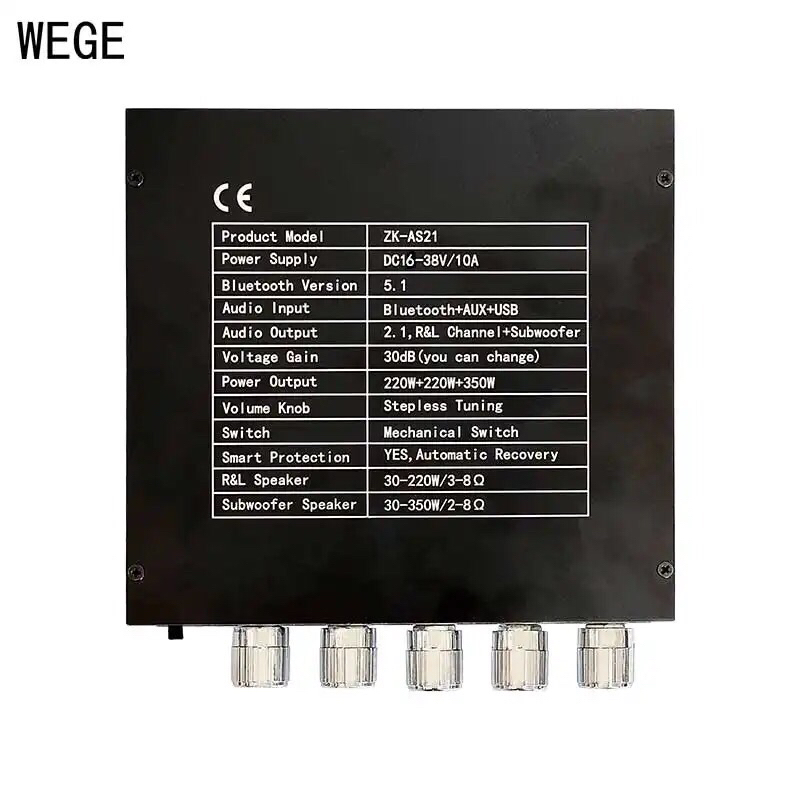

Product Name: 2.1 channel BT power amplifier

Product Model: ZK-AS21

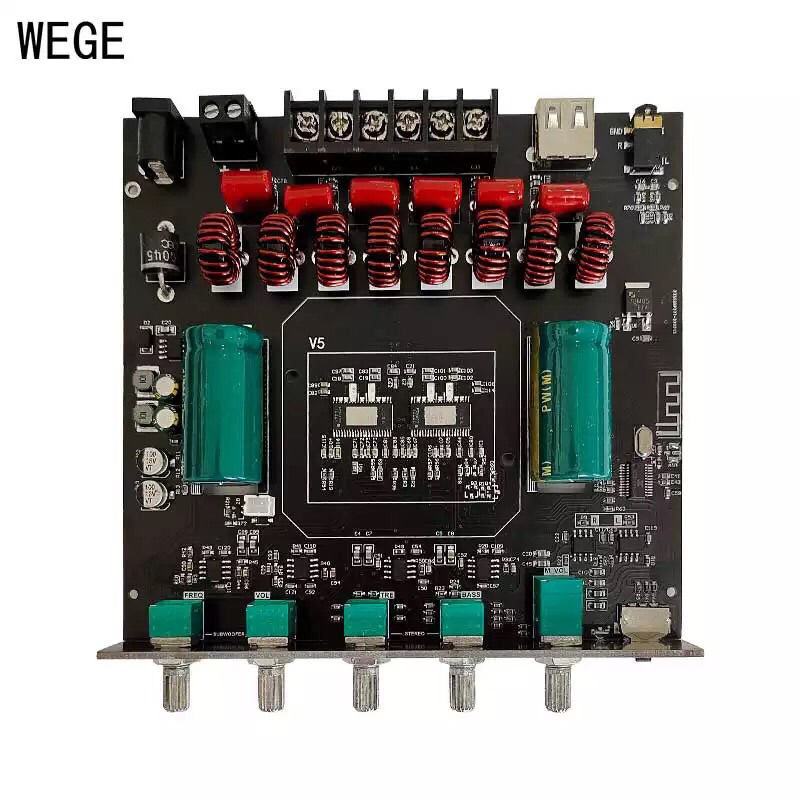

Amplifier Chip: TPA3255

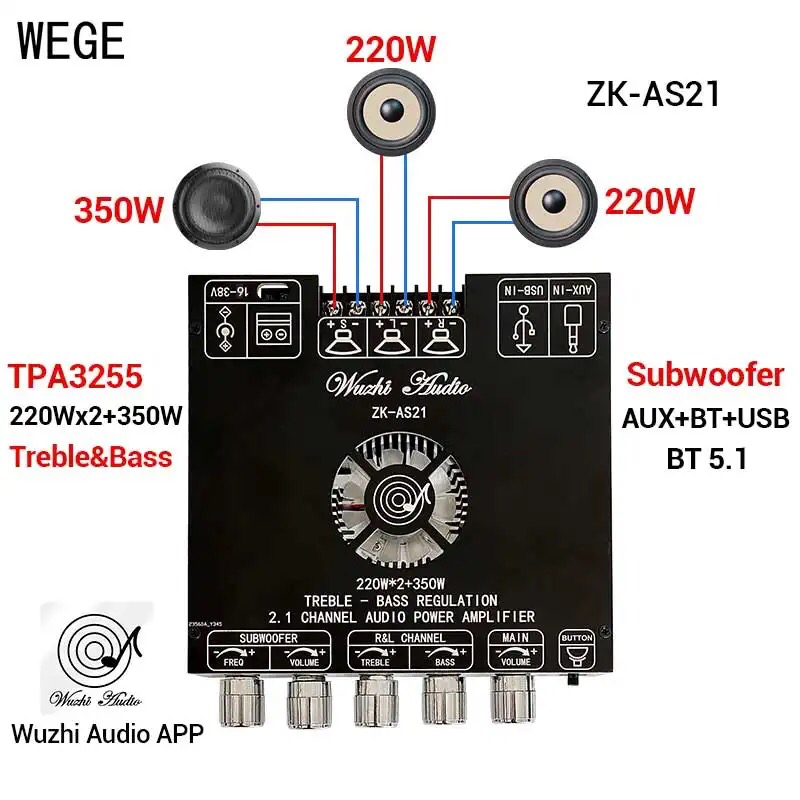

Channels: 2.1 channel (left channel + right channel + subwoofer)

Audio Input: AUX + BT+USB disk + USB sound card

BT Version: 5.1

Switching Mode: Mechanical switch(without long press and wait)

Adaptive Power supply: DC16~38 V ,≥10A

Adapter Speaker:
L&R channels 30-220W，3-8Ω
Subwoofer30-350W，2-8Ω

Output power:
R&L channel≤220W,
subwoofer≤350W

Protection Mechanism: Protection against reverse connection, undervoltage, overheating, overcurrent and short circuit (automatic recovery without restart)

Voltage gain: 30dB

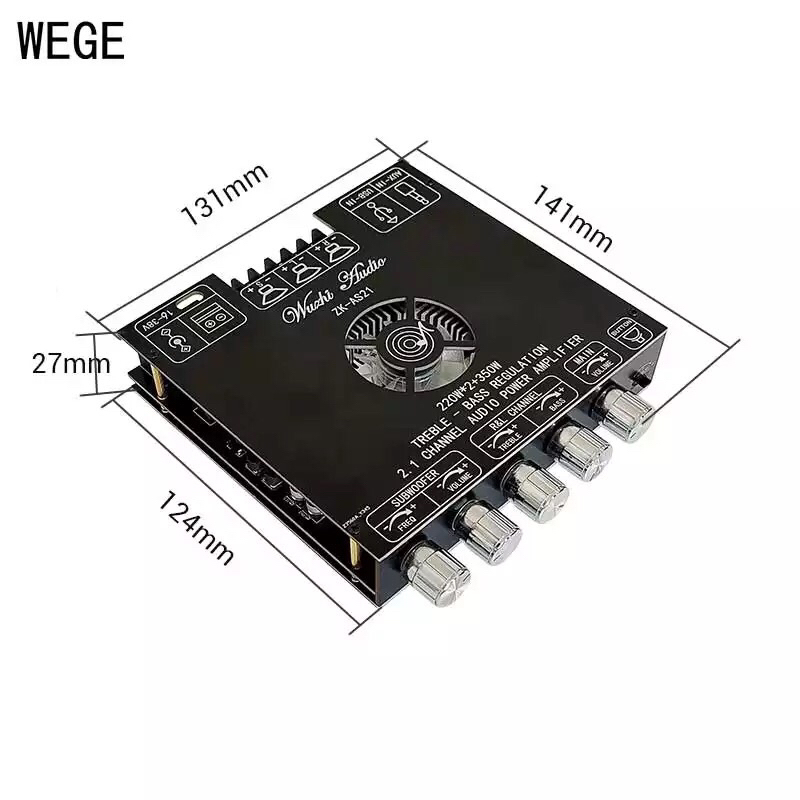

Product Size: 141*131*27mm

Product Weight: about 346g

Package Weight: about 408g

Tip: when the audio signal input is large enough and the power supply voltage / current is large enough, there will be enough output power!

The higher the power supply voltage, the greater the output power, the smaller the speaker impedance, and the greater the output power!

Please ensure that the power of the adaptive power supply is greater than the actual working power of the power amplifier!

Gambar produk
