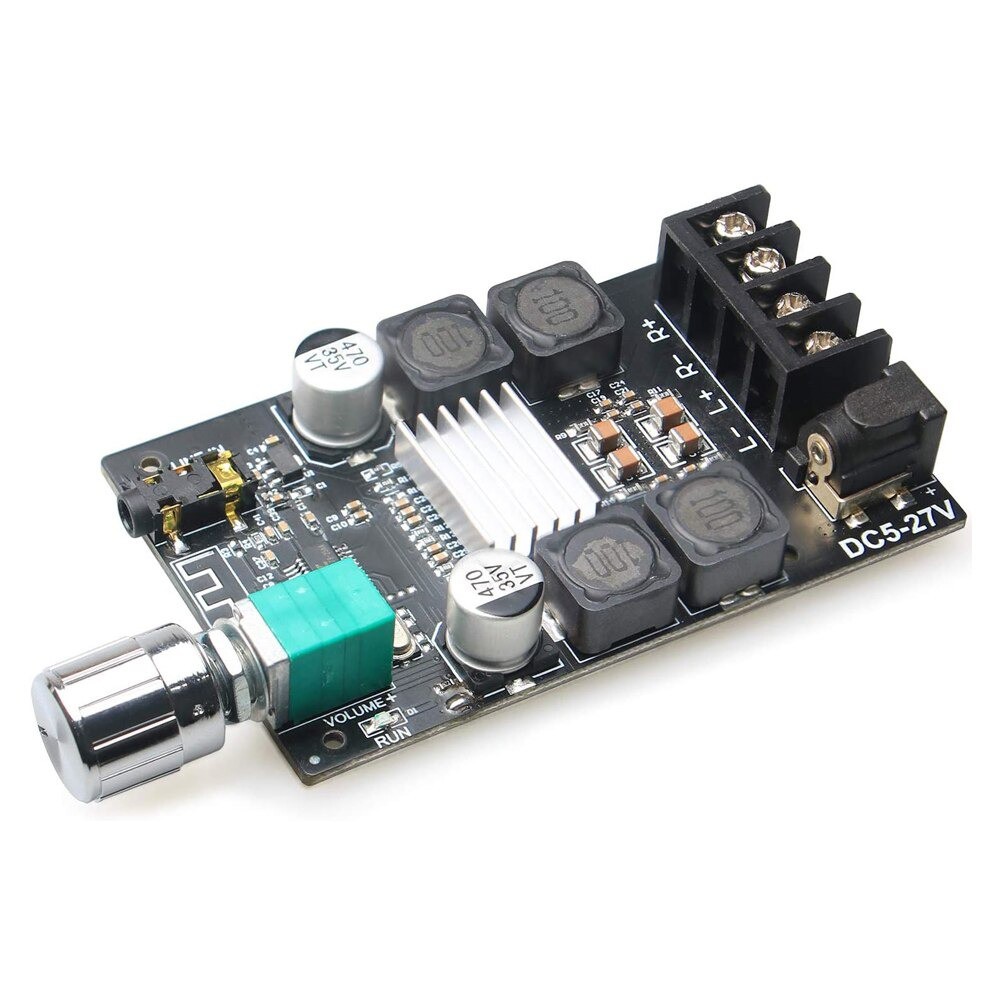

ZK-502C TPA3116 HIFI DIGITAL POWER AMPLIFIER STEREO 50W X2

Detail ZK-502C TPA3116 HIFI DIGITAL POWER AMPLIFIER STEREO 50W X2

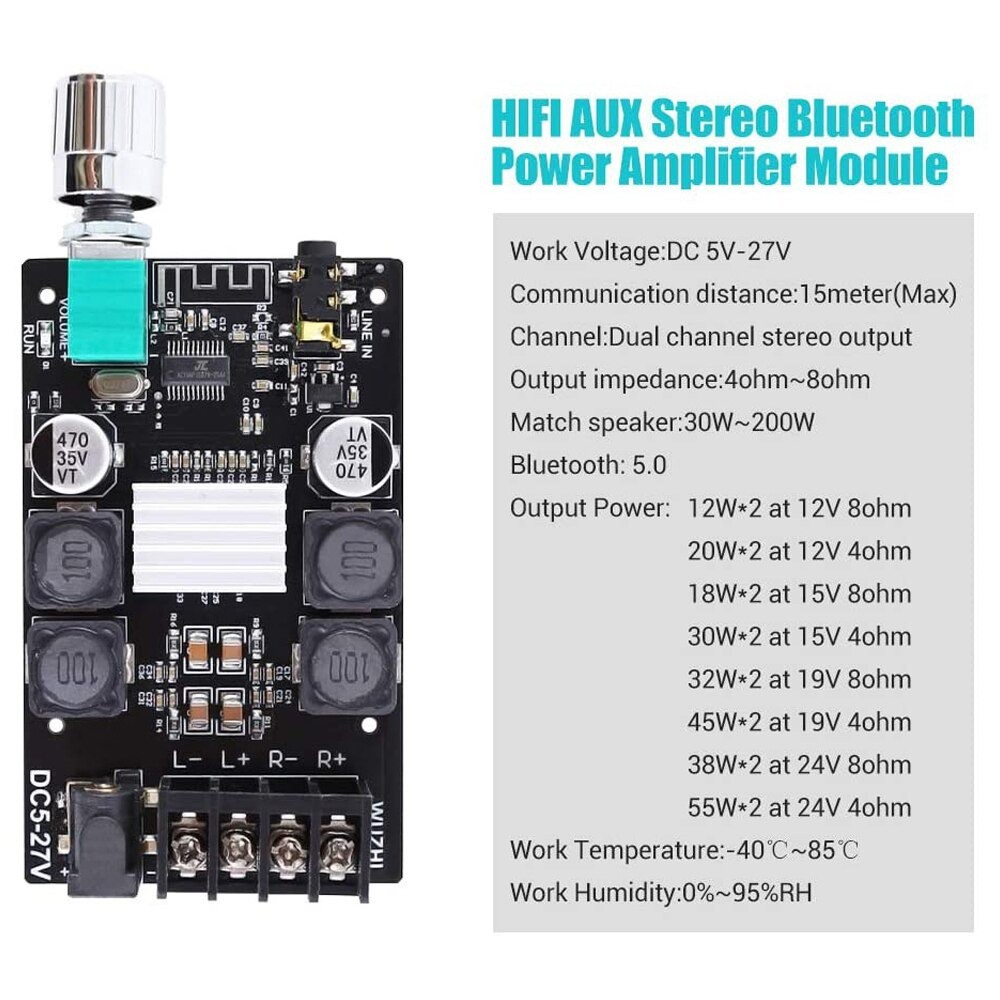

Parameter:
Input Mode: Bluetooth, AUX
Work Voltage: DC 5V-27V(Above 2A)
Channel: 2 CH Stereo Output
Bluetooth version: Bluetooth 5.0
Bluetooth transmission distance: 50 Ft
MAX Power Output: 50W x 2
Terminating Impedance: 4 Ohm-8 Ohm
Match Speaker: 30watt-200watt
Work Humidity:0%~95%RH
DC socket: 5.5*2.1mm

How to connect the speaker?
Step1-Use the screwdriver to loosen the speaker terminals on the amplifier.
Step2-Insert the speaker wires.
Step3-Install the screws to secure the speaker wires

Isi Paket :
1. Stereo Bluetooth Power Amplifier Module * 1
2. Acrylic shell * 2
3. 12mm Copper column * 4; 4. 8mm Screw * 8
5. Steel nut, screw mat * 1
6. 20cm power cable * 1; 7. Screwdriver * 1
8. Knob * 1; 9. Heat sink * 1

Gambar produk
