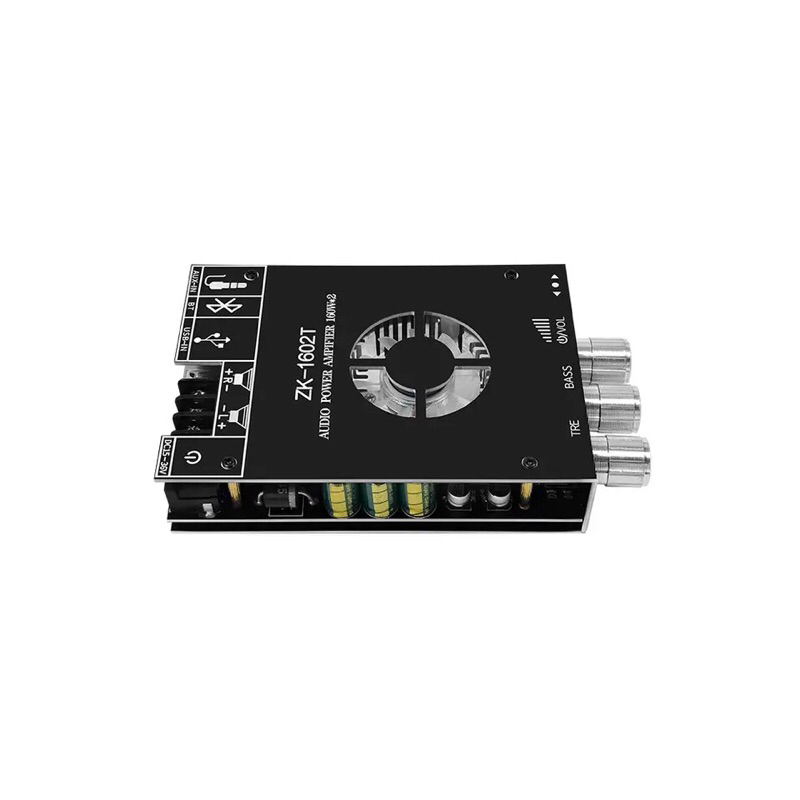

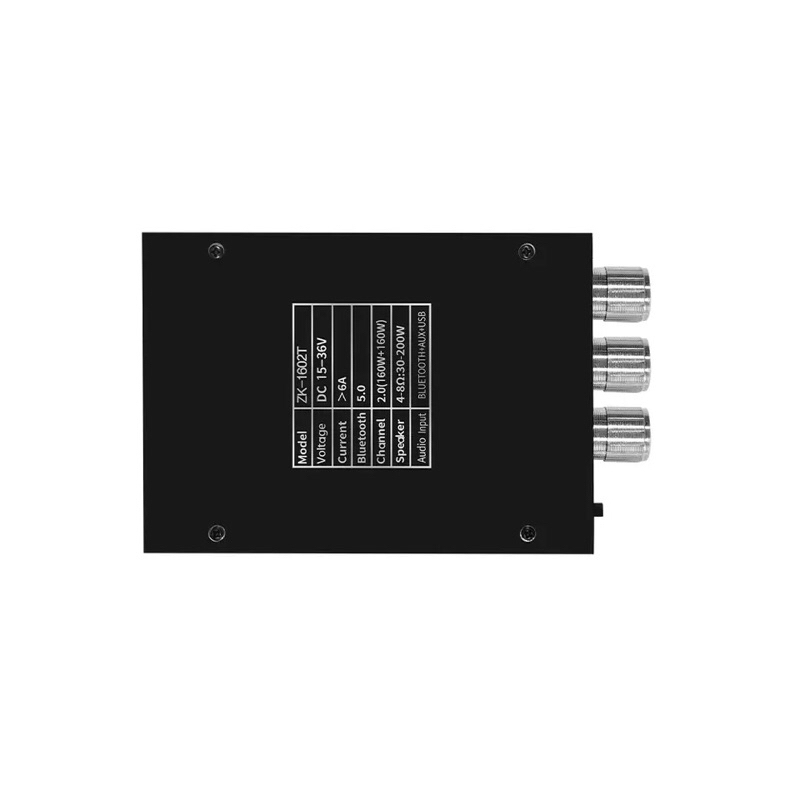

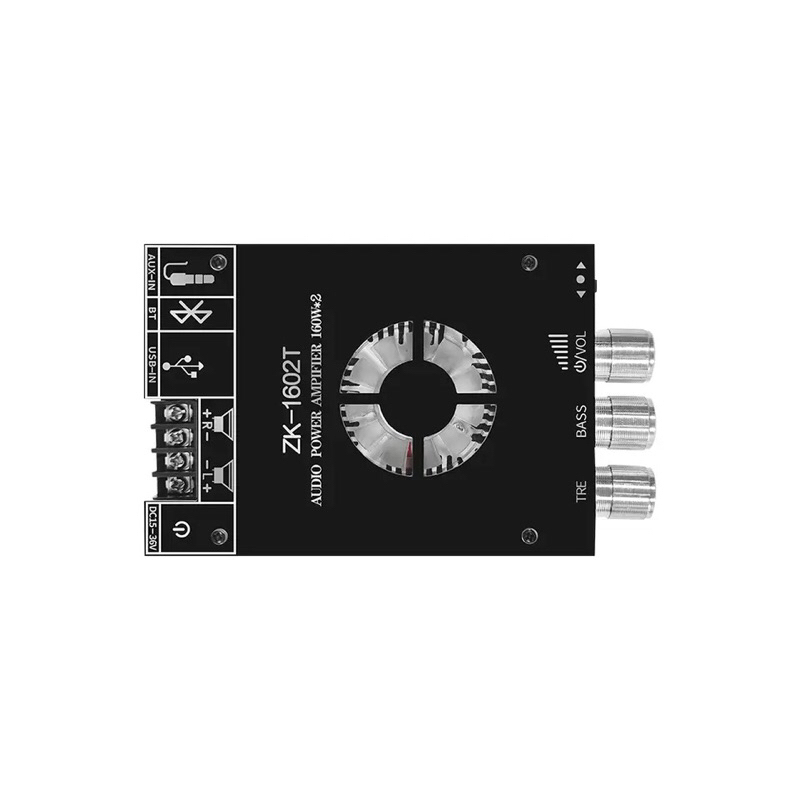

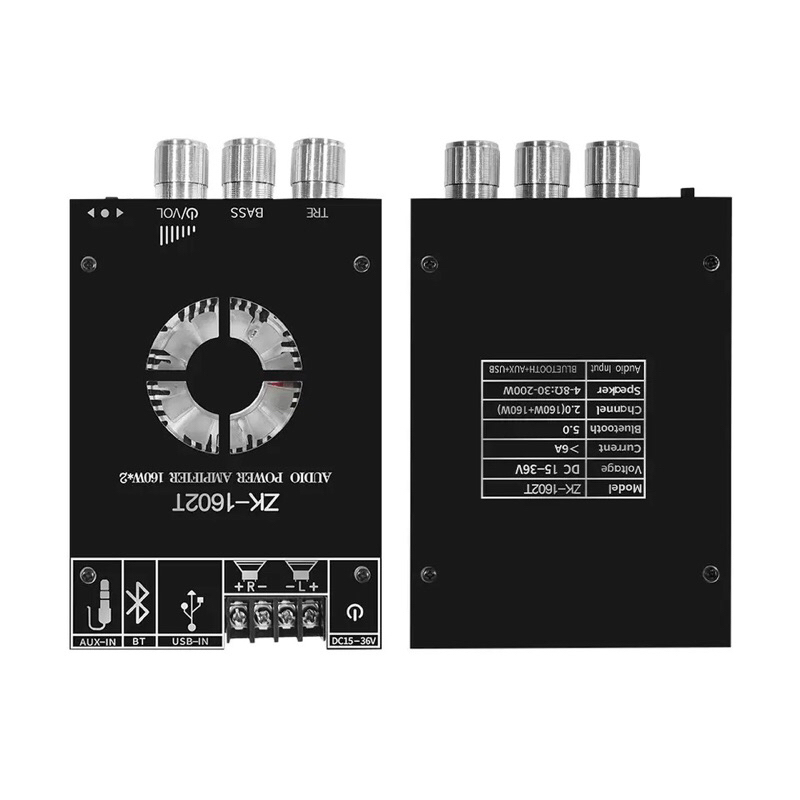

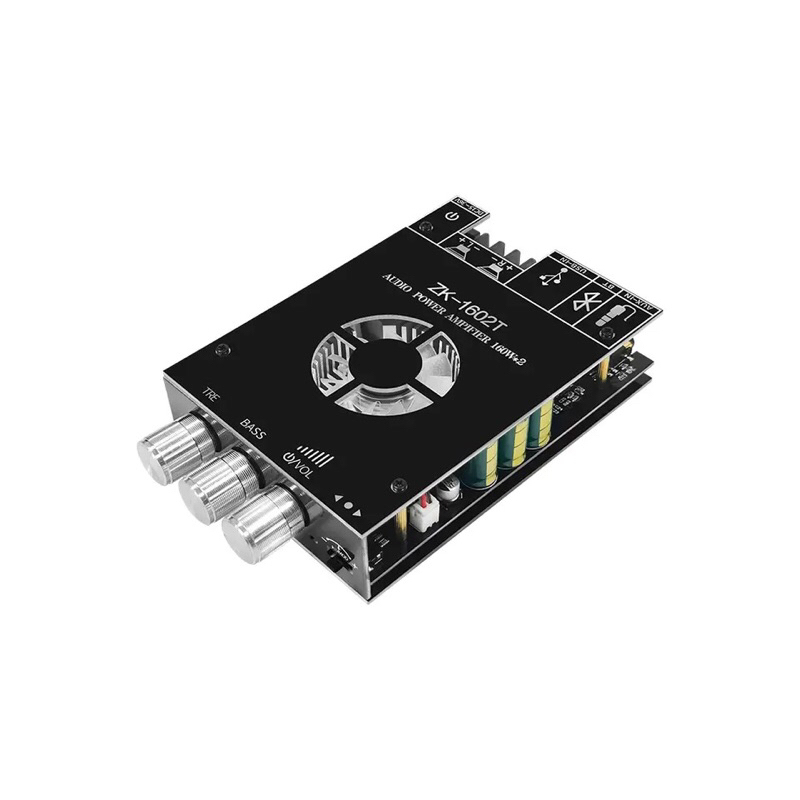

ZK 1602T TDA7498E Amplifier Board Module 160WX2 High And Bass Adjustment Bluetooth Audio Power Amplifier Board Module

Detail ZK 1602T TDA7498E Amplifier Board Module 160WX2 High And Bass Adjustment Bluetooth Audio Power Amplifier Board Module

Video perkenalan produk ZK 1602T TDA7498E Amplifier Board Module 160WX2 High And Bass Adjustment Bluetooth Audio Power Amplifier Board Module. Sumber: Shopee.

1: Power amplifier chip: TDA7498E
2: Widely used
3: Protection mechanism: anti-reverse connection, undervoltage, overheating, overcurrent, short circuit protection
4: Long-life ultra-quiet fan (blocked rotor does not burn, no noise)
5: Simple to use and easy to understand

Product parameters:

Product name: 2.0 channel Bluetooth audio power amplifier module
Product model: ZK-1602T
Bluetooth version: 5.0 (unobstructed, 10 meters)
Input method: AUX + for Bluetooth + USB (switching mode and song by dial button)
Number of channels: 2.0 channels (left channel + right channel)
Amplifier chip: TDA7498E
Adapter power supply: DC15~36 V (under voltage protection below 9V, 12V power supply can also be supported)
Adapted speaker: 30-200W, 4-8Ω
Output power: left and right channels ≤160w
Protection mechanism: anti-reverse connection, undervoltage, overheating, overcurrent, short circuit protection
Product size: 134*80*28mm
Product weight: net weight 209g, including packaging 257g


Tip: When the audio signal input is large enough and the power supply voltage/current is large enough, there will be enough output power!

Checklist

1*Power amplifier board module
