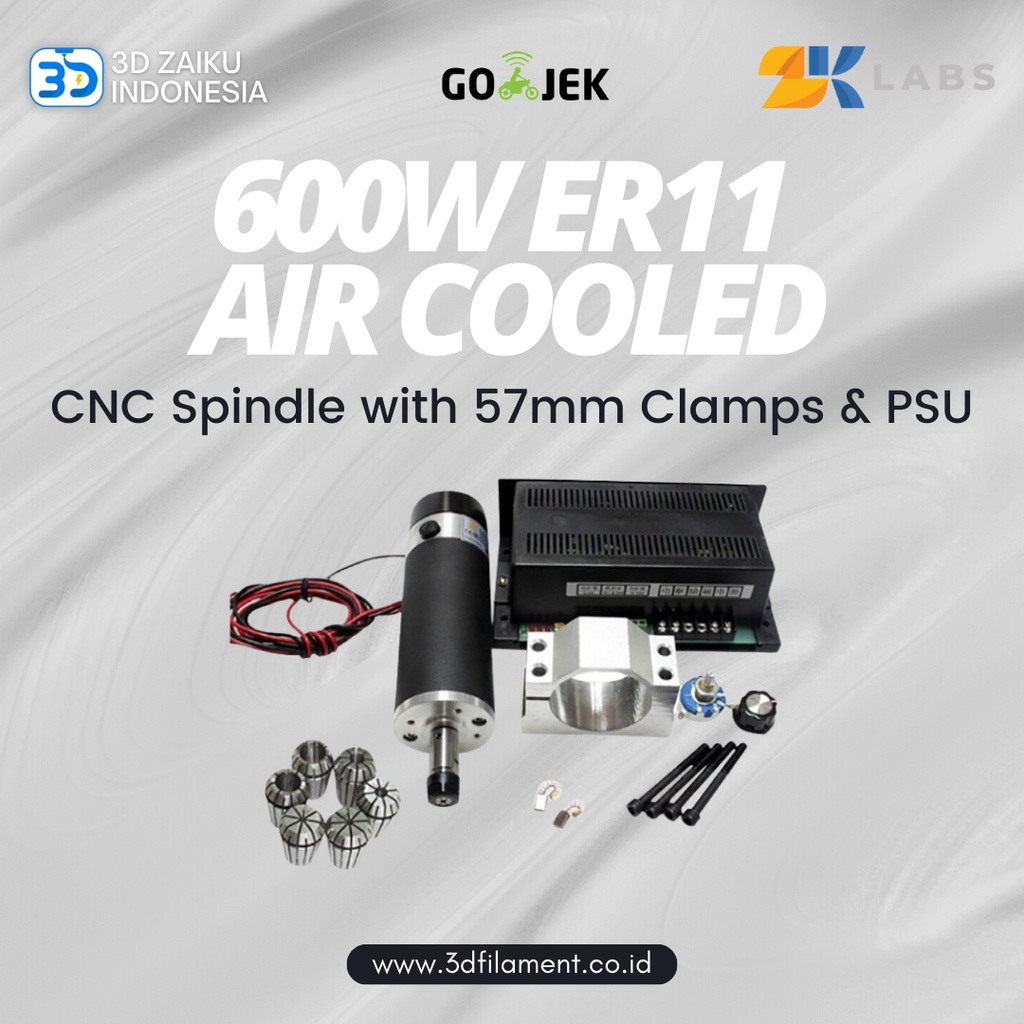

Features : Spindle Motor: Work voltage: 24-110VDC Rotation speed: 2000-13000r/min Power: 600W Torque: 600mN.m Insulation resistance:>2Megohm Dielectric strength:400V Motor Length : 175mm Diameter:57mm Axis collet Length: 43mm Diameter of Axis collect holder:16mm Repeat accuracy: 0.01-0.05mm ER11 collect: 3.175mm
Power supply Specification:
Power Supply: dukungan untuk Mach3 sistem Yang sesuai dengan motor power: 50 W ~ 500 W Dimensi: 190mm x 105mm x 60mm Output : 10A Eksitasi tegangan output: DC110V Angker tegangan output: DC0 ~ 52 V Tegangan Input: AC220V/110 V
