Zaiku CNC Spindle Motor 2.2KW ER20 Water Cooling 80 mm Complete Kit

Detail Zaiku CNC Spindle Motor 2.2KW ER20 Water Cooling 80 mm Complete Kit

3D Zaiku Indonesia

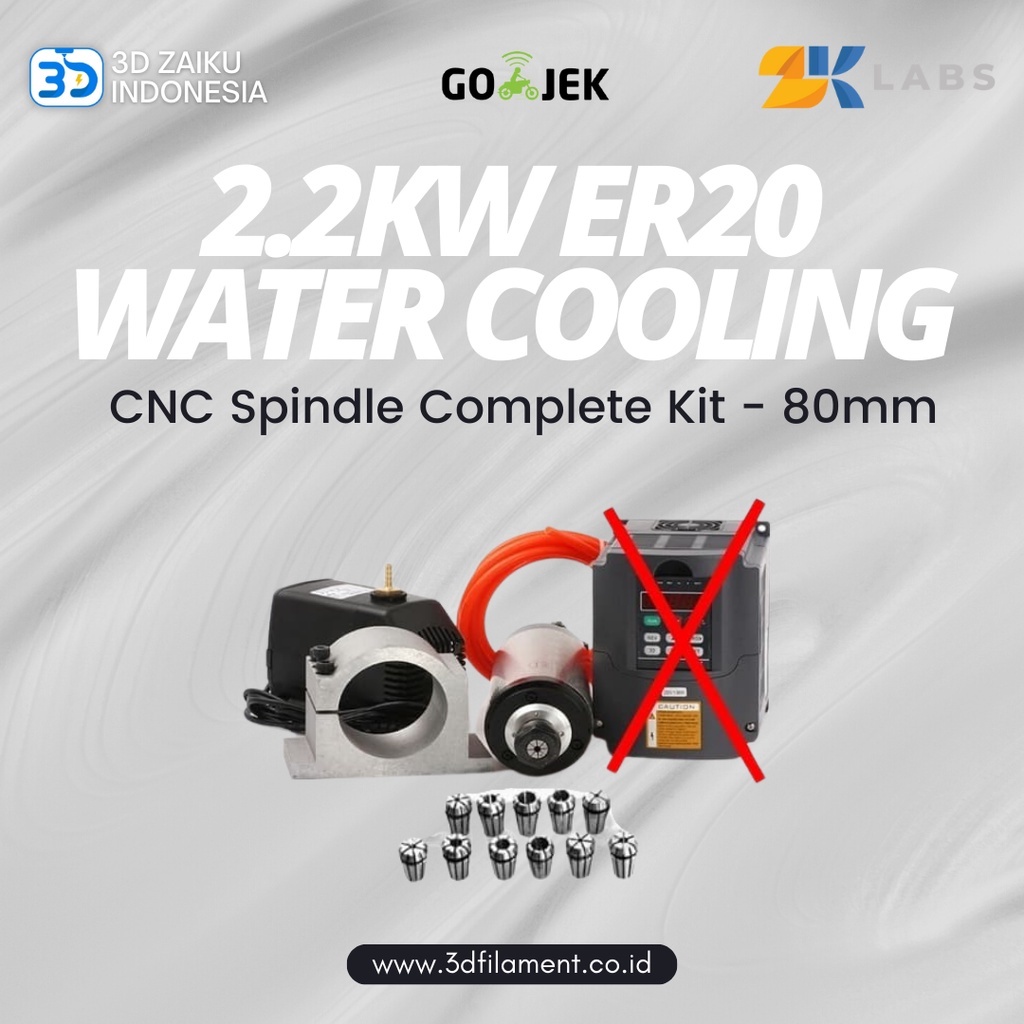

Water Cooled Spindle Kit 2.2KW CNC Milling Spindle Motor + 80mm clamp + water pump/pipe +13pcs ER20 for CNC Router

SKU : Zaiku A22-W

MAX 24000 RPM

Package include:
1 x 2.2KW CNC Water Cooled Spindle Motor
1 x 3.5M Water Pump
1 x 5M Water Pipes
1 x 80mm Spindle Clamp
13 x ER20 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)


Specification :
1. CNC Spindle Motor
Size:80mm
Power:2.2KW
Voltage:220V
Frequency:0-400Hz
Speed:0-24000rpm
Water Cooling
ER20 collet
Runout off:less than 0.005mm
Grease Lubrication
4pcs bearing C7005X2 C7002X2

2.Water pump
Special engraving machine spindle motor cooling water pump, 3.5m, 80w high power!
Voltage: 220v (can be directly connected to the household power supply)
Head: 3.5 m
Flow: 3500L / h
Power: 80w
Usage: placed directly after the pumps and pipes connected to the tank, the tank water level height should be more than 2.5 times the height of the pump of the best! Avoid dry dry!

3. collet : 1set er20 13pcs (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)
4. clamp: 80mm clamp
5. 5M Water pipe: Size:5M 6mm (ID)*8mm (OD)

Garansi 1 Bulan

Ready Stok
