Zaiku CNC Spindle Motor 1.5 kw ER16 Water Cooling 80 mm Kit

Detail Zaiku CNC Spindle Motor 1.5 kw ER16 Water Cooling 80 mm Kit

3D Zaiku Indonesia


Merek : Zaiku A15-W16
Tipe : Water Spindle 1.5KW ER16


MAX 24000 RPM


Basic parameter :
Size: 80x195mm (Middle body diameter:80mm x Length:195mm)
Material: 304 stainless steel jacket
Speed Ways: Through the inverter output voltage and adjust the operating frequency can be achieved 0-24000 stepless
Cooling: Water cooling mode
Power Interface: Optional H20 waterproof air plug, there are marked 1234,123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground
Power: 1.5Kw
Voltage: 220VAC
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout Off: Less than 0.01mm
4pcs bearings
Bearing type:27004C P4 DT & 27002C P4 DT
Collet: ER16
Clip Knifediameter: 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Water Cooling ER16 collet chunk
Grease Lubrication

Product package

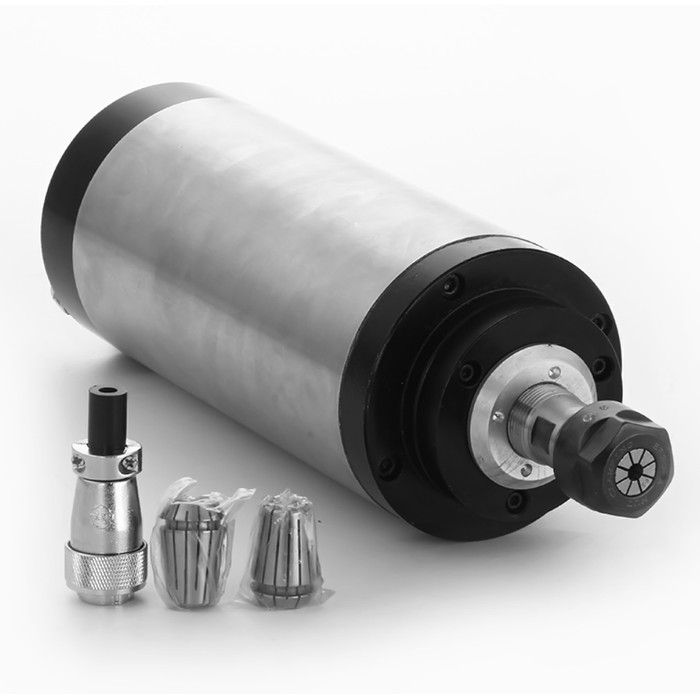

1 x 1.5KW CNC Spindle Motor

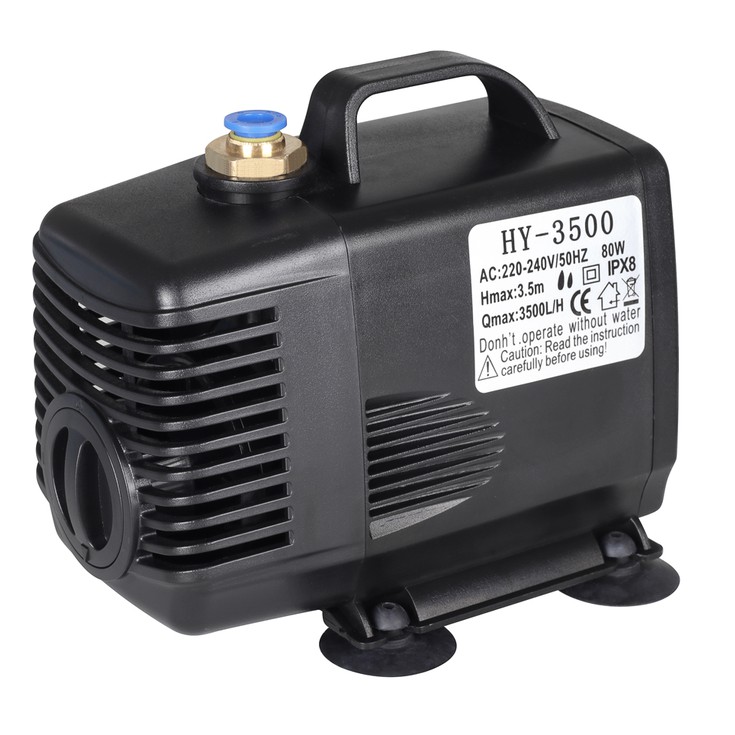

1 x 80W Water Pump
1 x 5M Water Pipes
1 x 80mm Spindle Clamp (Free 3pcs screws)

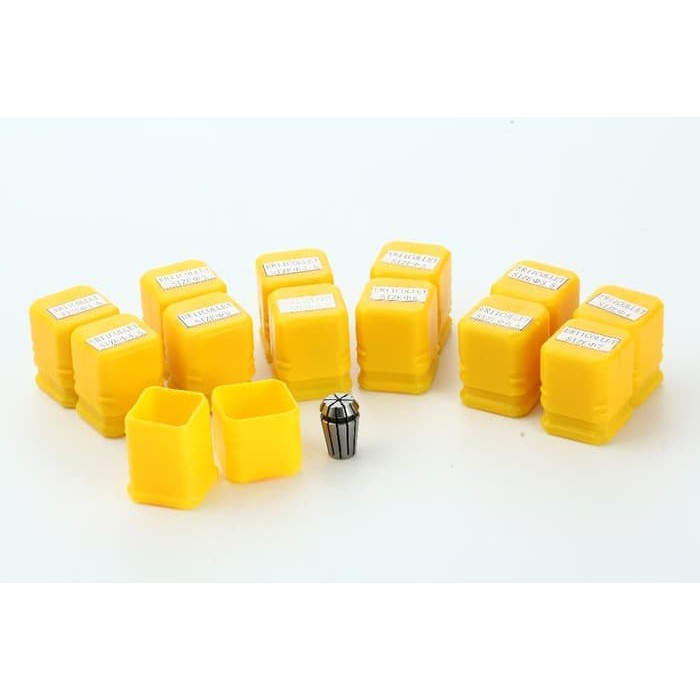

11 x ER16 Collet
(1mm,2mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,3.175mm)

Garansi 1 Bulan


Ready Stok

Gambar produk
