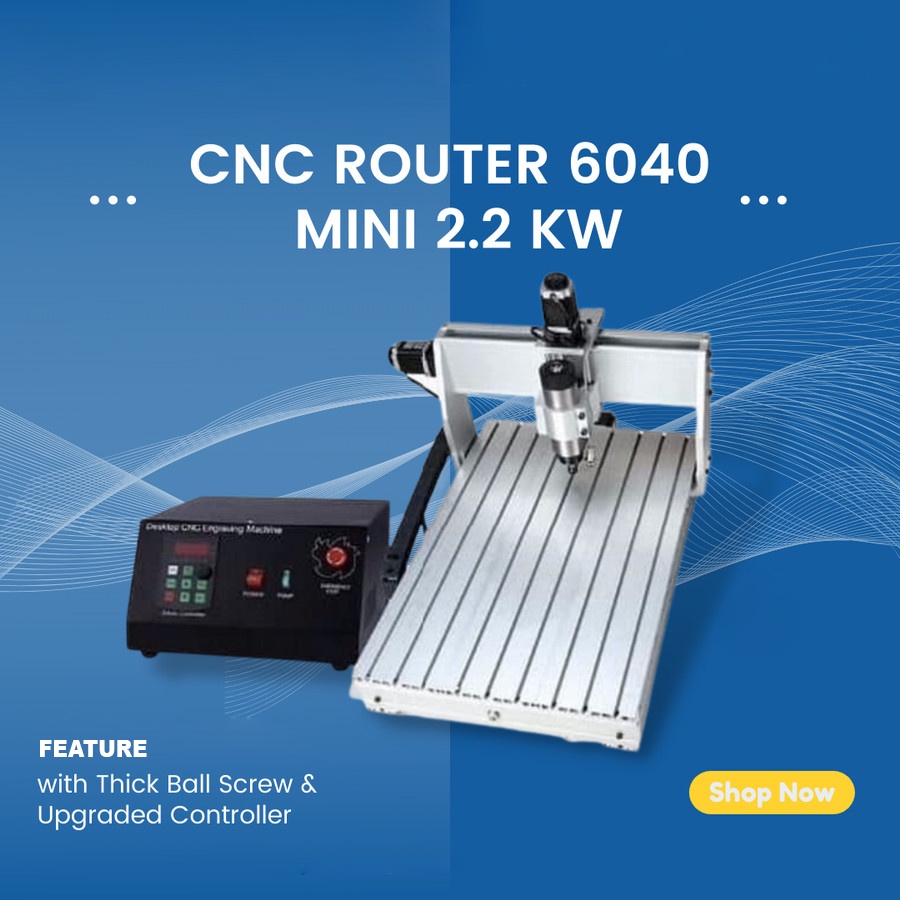

Zaiku CNC Router 6040 Mini Mesin CNC PCB Milling with 2.2 KW Spindle

Detail Zaiku CNC Router 6040 Mini Mesin CNC PCB Milling with 2.2 KW Spindle

2.2 KW CNC 6040 3 axis CNC router CNC wood carving machine USB Mach3 control Woodworking Milling Engraver Machine

(BARANG INI TIDAK DALAM KONDISI BARU)

SKU : Zaiku 6040-3A

- Set dengan 2.2 KW Air Spindle + inverternya
- Include Inverter 2.2 KW
- Include Bracket dan sudah terpasang tinggal pakai
- Menggunakan Ball Screw

Mesin bisa motong dan ukir triplek, akrilik, kulit, sampai bahan besi stainless steel

TECHNICAL SPECIFICATION
Tipe : 6040-3A
X,Y,Z Working Area: 600*400*75mm
Max. Feeding height: 75 mm

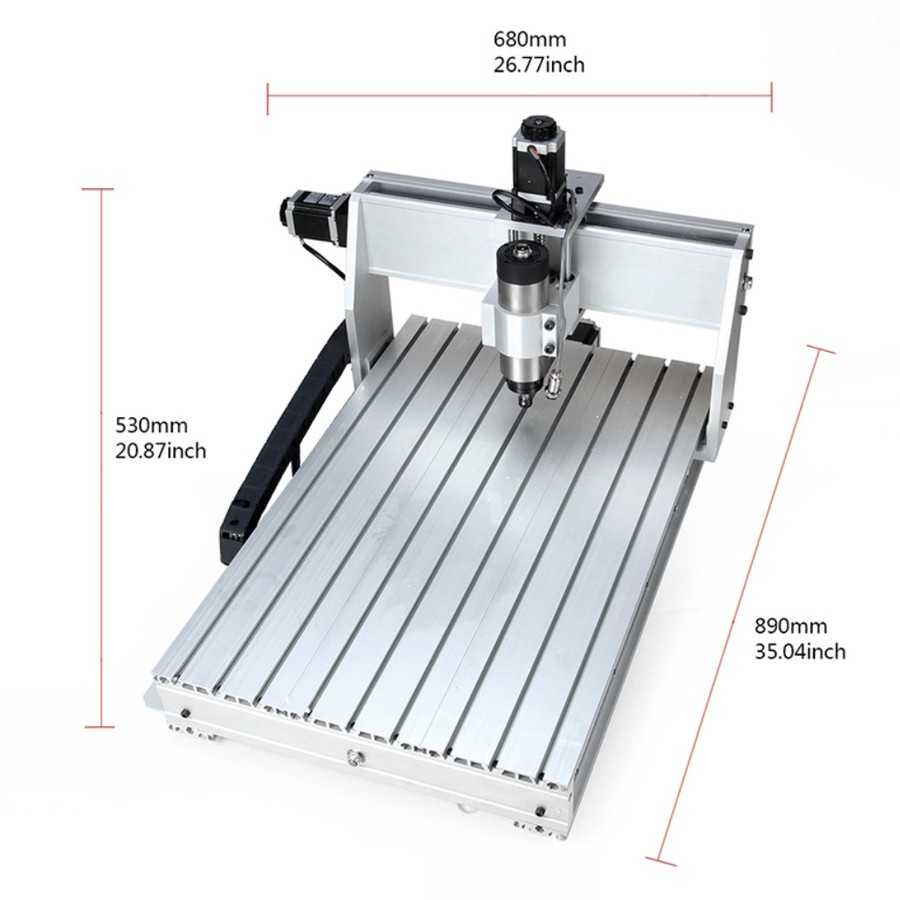

Outside dimension: 890mm*680mm*530mm
Table size: 480mm * 760mm
Lathe structure: 6061/6063 Aluminium alloy
Stepping motor: two-phase 57/1.8A
Drive unit: ball screw
Sliding unit:: Chromeplate shaft
Repeat positioning Accuracy: 0.05mm
Spindle motor: 2.2 KW Air Spindle
Spindle speed: 24000RPM/MIN
Cutting tool-holder: ER20/3.175mm

Interface:USB port

Sudah terakit jadi, siap pakai
Include Free Software Mach 3 Controller

Bisa dipakai untuk plastic, wood, acrylic, pvc, pcb, wood or the like material.

Package introduced
- 1 Engraving machine 600*400*75 mm
- 1 FREE mesin Spindle
- 1 Set Tensioner
- 3 Axis motors
- 1 Parallel cable

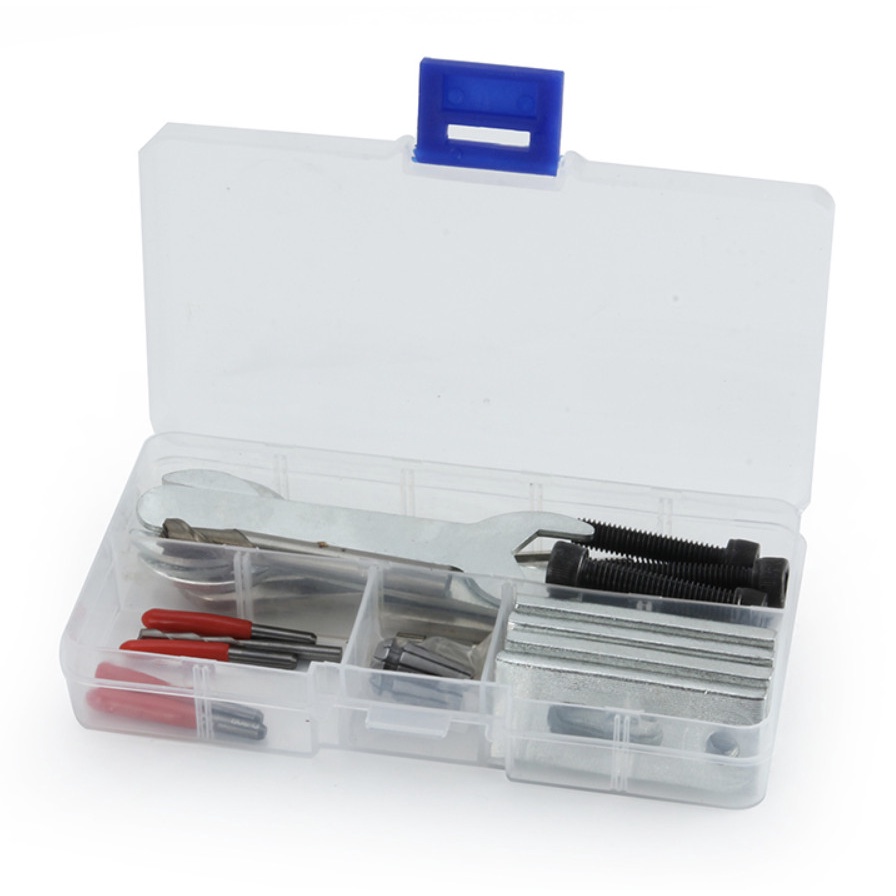

- 1 Tool box and tools
- 1 Control box (110v or 220v)
- 1 Power cable

Gambar produk
