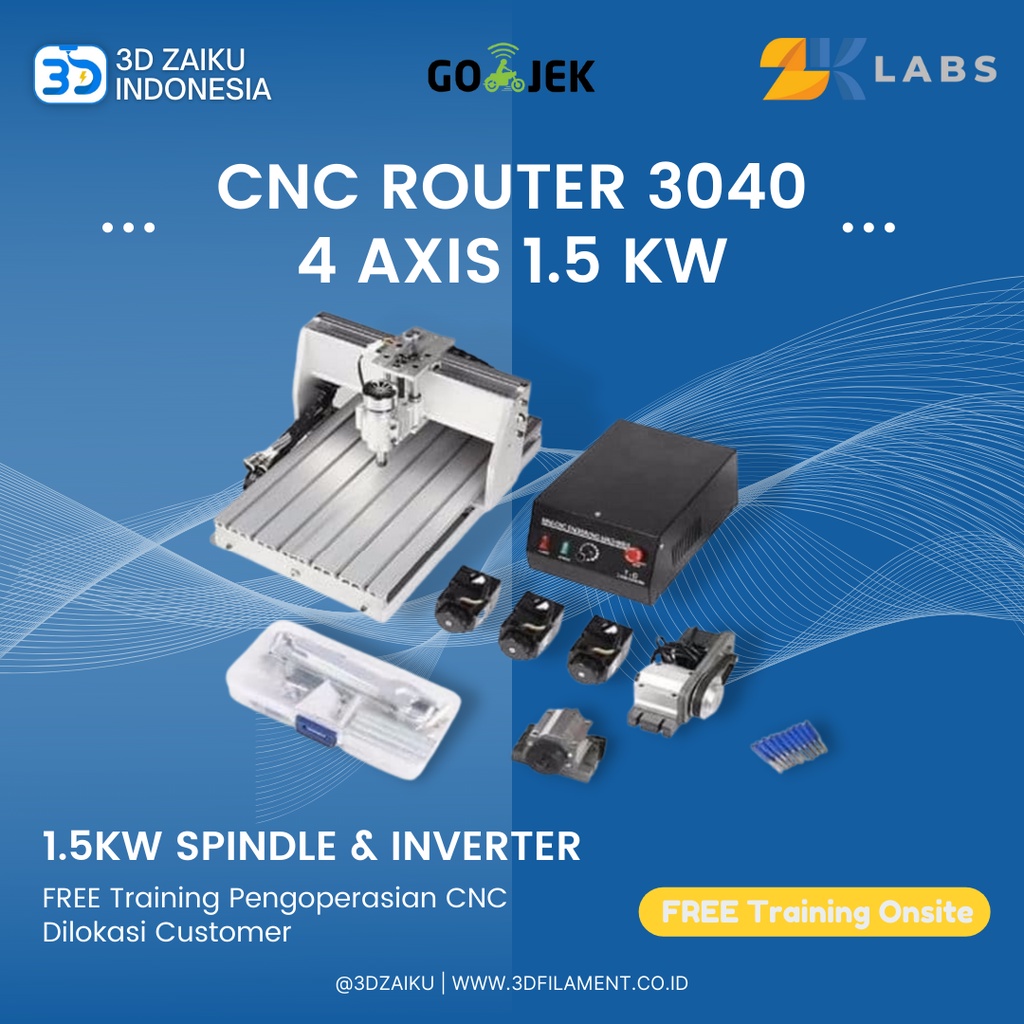

Zaiku CNC Router 3040 4 Axis PCB Milling with 1.5 KW Spindle

Elektronik > Elektronik Lainnya > Zaiku CNC Router 3040 4 Axis PCB Milling with 1.5 KW Spindle
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Zaiku CNC Router 3040 4 Axis PCB Milling with 1.5 KW Spindle

3D ZAIKU INDONESIA

1.5 KW 4-axis Threads Screw CNC Router Engraver Engraving Milling Drilling Cutting Machine CNC 3040 T-D

SKU : Zaiku 3040-4A
Garansi Full Sparepart 1 Tahun untuk semua merek Zaiku

- Set dengan 1.5 KW Air Spindle + inverternya
- Include Inverter 1.5 KW
- Include Bracket dan sudah terpasang tinggal pakai


FREE TRAINING ONSITE area Jakarta, Tangerang, Surabaya
untuk luar kota ada biaya tambahan transport dan akomodasi


Kenapa beli di 3D Zaiku :
1. Garansi sparepart mesin 1 tahun
2. FREE Briefing cara pemakaian mesin untuk pemula di toko kita yang khusus mesin cnc
3. FREE Konsultasi kebutuhan mesin dan upgrade mesin, ada mesin demo ditoko
4. FREE Training di lokasi customer buat area Jakarta dan Tangerang, luar kota ada biaya tambahan jika training di lokasi

Mesin bisa motong dan ukir triplek, akrilik, kulit, sampai bahan besi stainless steel


TECHNICAL SPECIFICATION
Tipe : 3040-4A
X,Y,Z Working Area: 390*280*55mm
Max. Feeding height: 70mm
Outside dimension: 615*485*390mm
Table size: 525*320mm
Lathe structure: 6061/6063 Aluminium alloy
Stepping motor: two-phase 57/1.8A
Drive unit: threads screw
Sliding unit:: Chromeplate shaft
Repeat positioning Accuracy: 0.05mm
Spindle motor: 1.5 KW Air Spindle
Spindle speed: 24000RPM/MIN
Cutting tool-holder: ER11/3.175mm

Interface:USB port


Sudah terakit jadi, siap pakai
Include Free Software Mach 3 Controller

Bisa dipakai untuk plastic, wood, acrylic, pvc, pcb, wood or the like material.


Package introduced
- 4 Axis motors, bisa buat barang 3D Model
- 1 FREE Tool box and tools
- 1 Power cable(we also stock 110V-220V power version and USA.UK.EU.AU.plugs for the country all over the world.)
- 1 Control box
- 1 FREE mesin Spindle
- 1 Set Tensioner
- 110V controller box come with Parallel port and USB port, 220V only USB port


Barang READY STOK
