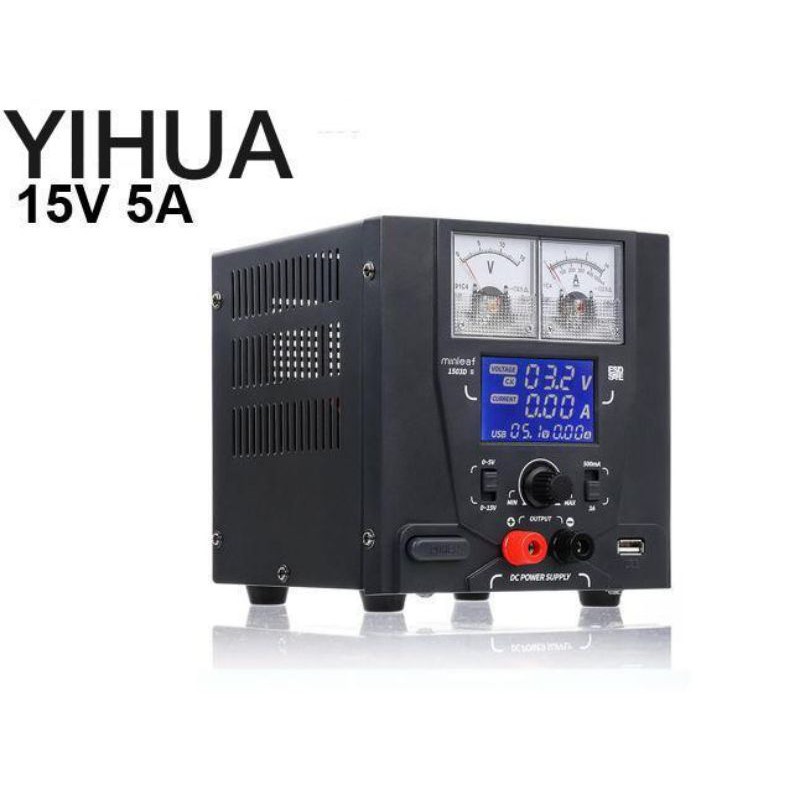

YIHUA 1505D II YIHUA 1503D ll DC Power Supply 5A Digital With Super Charger 3.0

Detail YIHUA 1505D II YIHUA 1503D ll DC Power Supply 5A Digital With Super Charger 3.0

POWER SUPPLY YIHUA 1505D 15V 5A WHIT USB FAST CHARGER ORIGINAL

Merek : Yihua
Model : Digital/Analog
Type : 1505D

Voltage : AC 220V-240V,50Hz
Rated power : 120W
The output voltage : DC 0-15V
Output Power : 75W
USB Output voltage : DC 5V/9V/12V ± 0.2V
USB Output Power : 20W
Dimension : L180xW152xH167mm±5mm
weight : 1.78kg30g
Working Conditions : Temperature 0-40°C,Relative humidity 80%
Storage Conditions : Temperature :-10-70°C,Relative humidity 70%
The output Voltage : Continously adjustable from 0-15V (resolution 0.1V)
Voltage accuracy : 0.1V
Current accuracy : 0.4%+10mA
Load stabulity : <0.2%+3mV
Ripple noise voltage : < 0.2%Vrms (10Hz-1MHz)
Temperature Coefficient : <300PPM/C
Protection curent : 1A/5A
USB Voltage accuracy : 0.1V
USB output voltage : 5V/9V/12V
USB current accuracy : 0.4%+10mA
USB protection current : 4A/2.5A/2A
