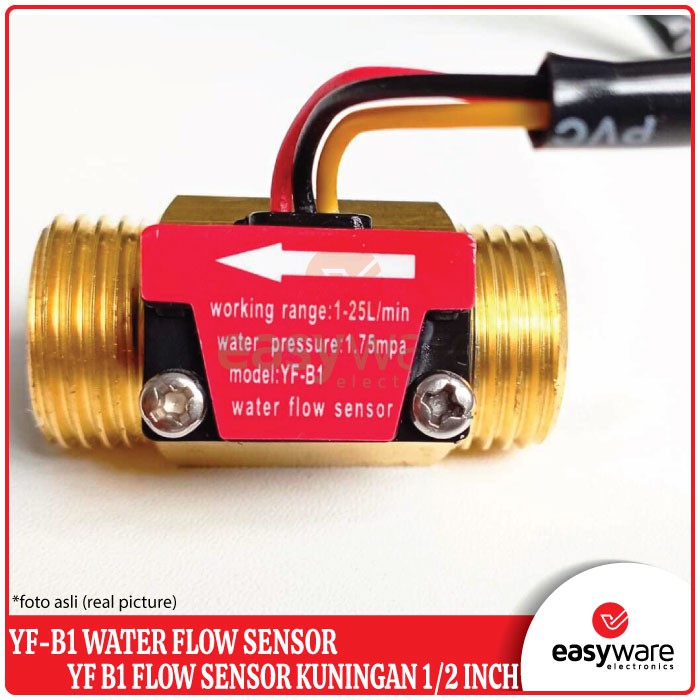

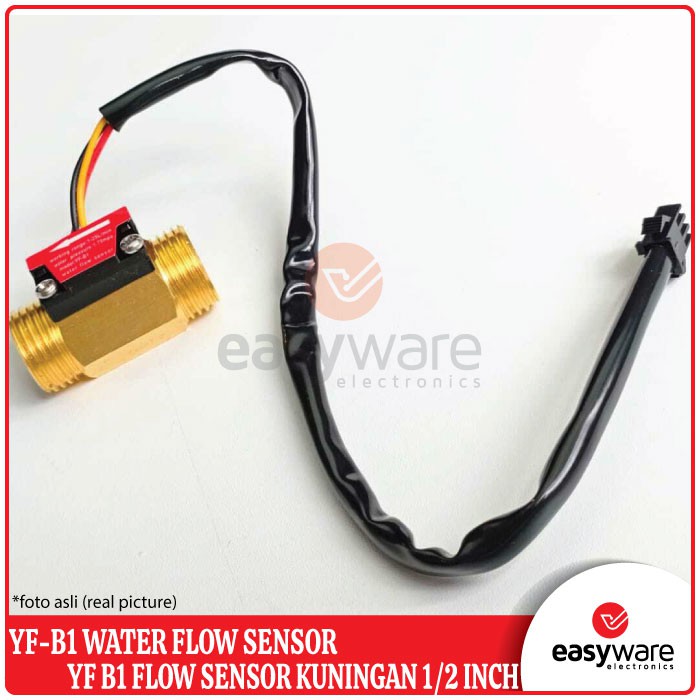

YF-B1 WATER FLOW SENSOR YF B1 FLOW SENSOR KUNINGAN 1/2 INCH

Detail YF-B1 WATER FLOW SENSOR YF B1 FLOW SENSOR KUNINGAN 1/2 INCH

**Selamat datang di EasyWare Electronics**
Mohon dibaca terlebih dahulu!
- Sebaiknya tanyakan stok terlebih dahulu
- Pengiriman via Gosend atau Grab sebaiknya dikomunikasikan terlebih dahulu
- Biasakan baca catatan toko dan deskripsi
- Kunjungi toko kami dan cek barang-barang keren lainnya
DESKRIPSI:

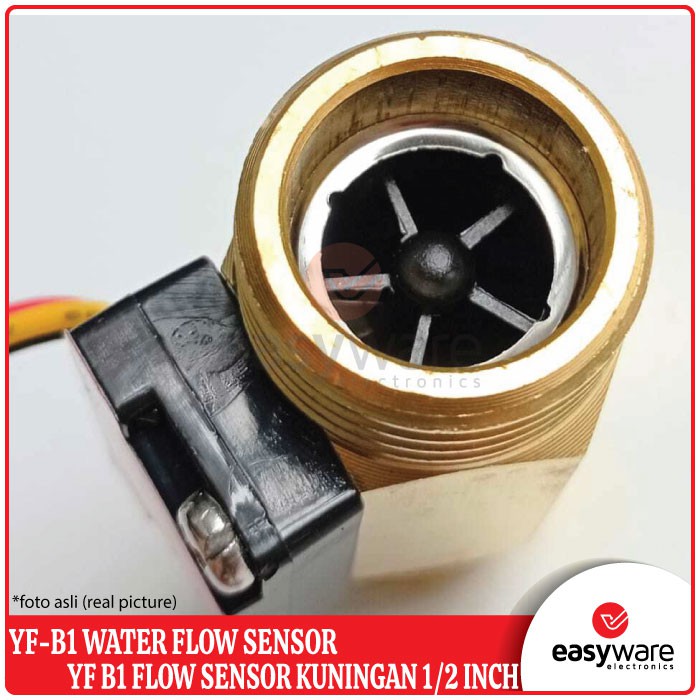

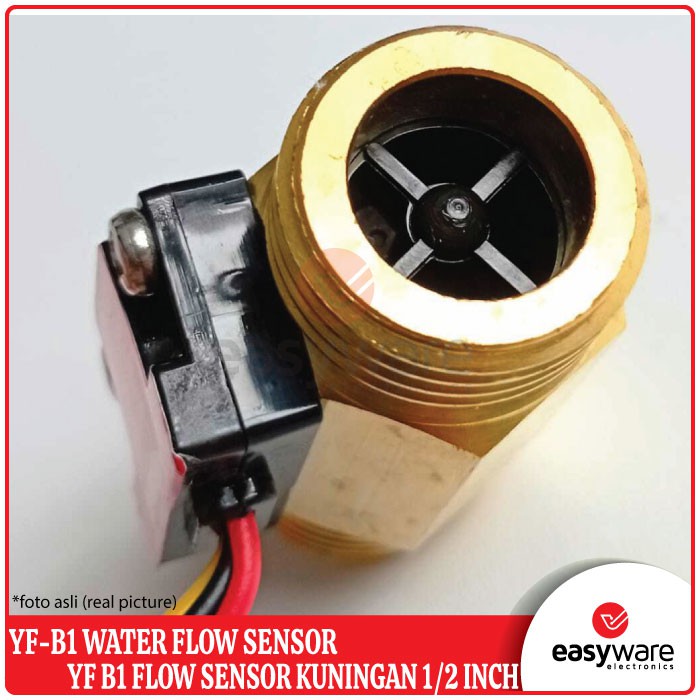

Water flow sensor consists of a copper body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.
Life is longer than plastic body.

FITUR :
- Compact, Easy to Install
- High Sealing Performance
- High Quality Hall Effect Sensor
- RoHS Compliant

SPESFIKIKASI :
Dimensions 0mm x0mm x0mm
- Weight G.W 100g
- Battery Exclude
- Mini. Wokring Voltage DC 4.5V
- Max. Working Current 15mA (DC 5V)
- Working Voltage DC 5V~15V
- Flow Rate Range 1~30L/min
- Frequency F=(6.6xQ)Q=L/MIN3%
- Load Capacity 10mA (DC 5V)
- Operating Temperature 0 ~ 80
- Liquid Temperature 120
- Operating Humidity 35%90%RH
- Water Pressure 1.75MPa
- Storage Temperature -25+ 80
- Storage Humidity 25%95%RH
- Interface Dimensions G1/2 Inch
- Error Range (1~25L\MIN) 3%
- Material Description H57Copper+POM
- Output Pulse High Level >DC 4.7V (Input Voltage DC5V)
- Output Pulse Low Level - Output Pulse Duty Cycle 50%10%

KELENGKAPAN :
- 1pcs YF-B5 water flow sensor

Gambar produk
