Detail Yescool TPA6120 Board Amplifier Headphone HiFi TPA6120A2 Channel Ganda
Description:TPA6120A is HIFI stereo headphone amplifier introduced by TI. It can provide 800mW power to 600Ω with a±12V voltage when (THD+N) is 0.00014%; Current feedback architecture; The dynamic range is greater than 120dB; the SNR is 120dB; the output noise at the gain of 2V/V is 5μV; the operating voltage range is ±5~±15V; the conversion rate is 1300V/μS; Built-in short circuit protection and thermal protection.
Features:
Name: TPA6120 Headphone Amplifier
Chip Type: TPA6120A2
Working Voltage: AC/DC Dual 12V-24V
Output Impedance: 8-600 ohms
Protection Function: Short circuit protection, overheat protection
Board Size: 80 x 52 x 2mm(3.15" x 2.05" x 0.08")
Packing List:
1pcs x TPA6120 Headphone Amplifier Board

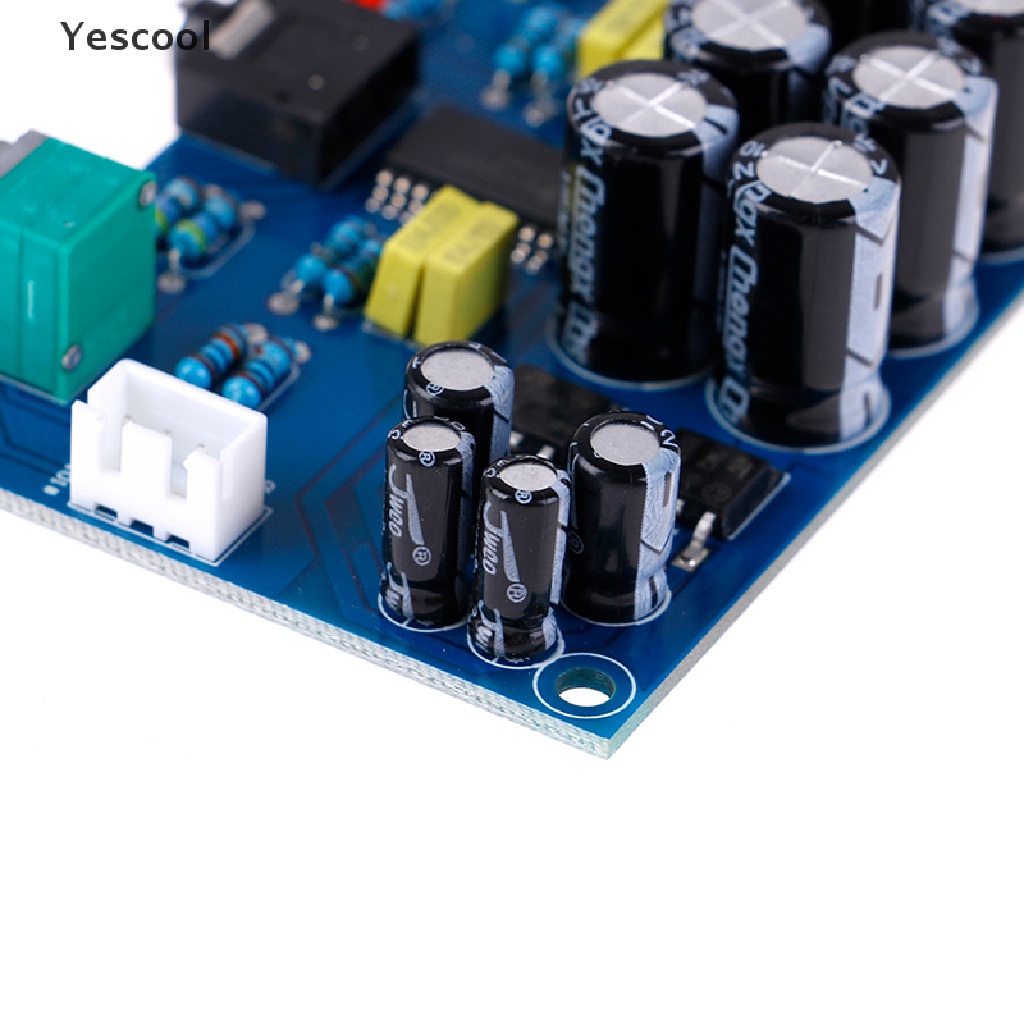

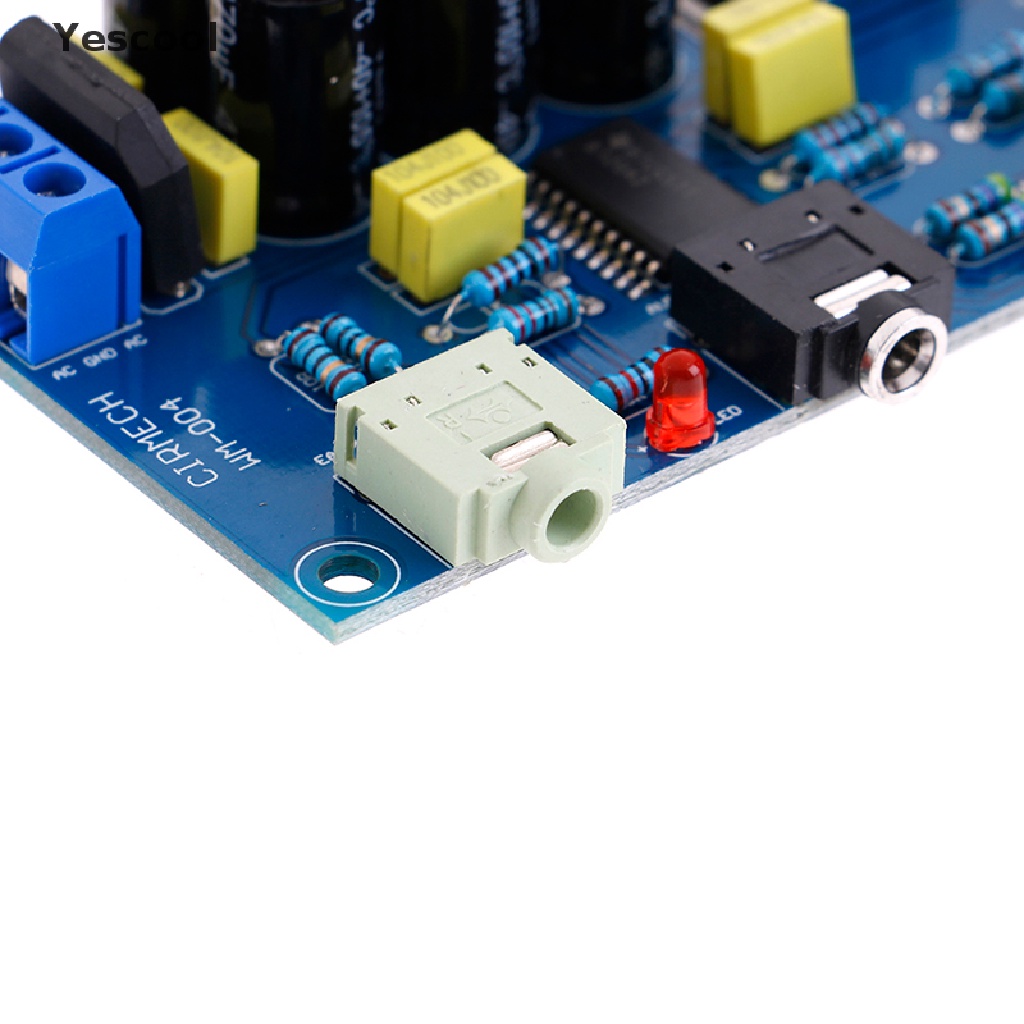

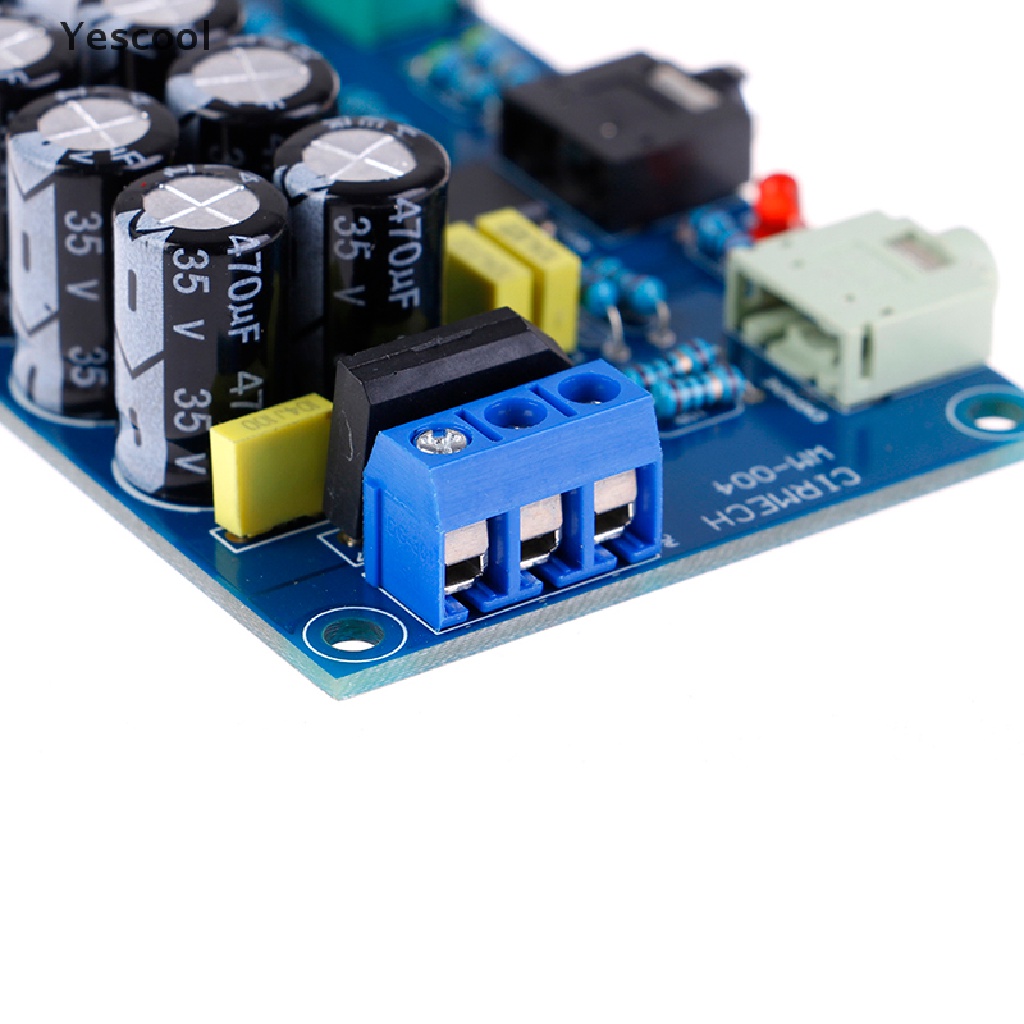

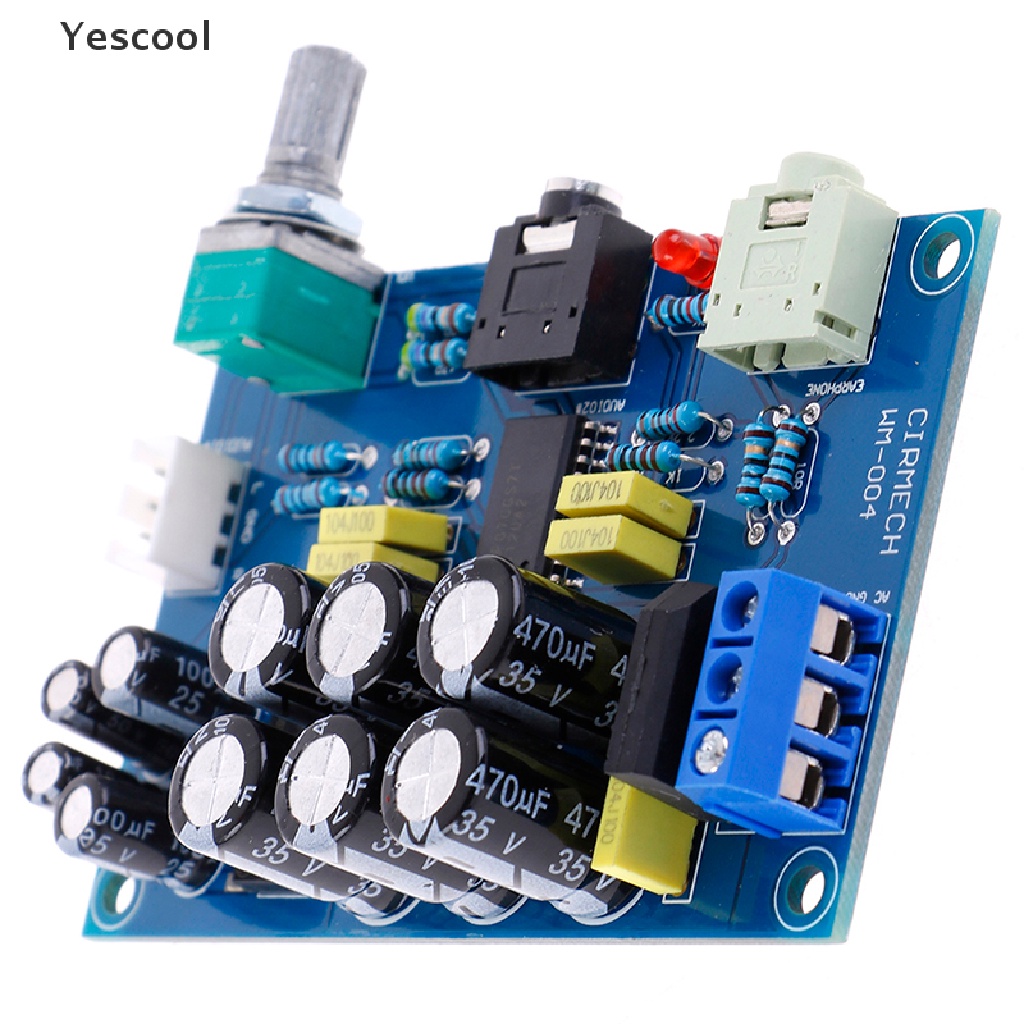

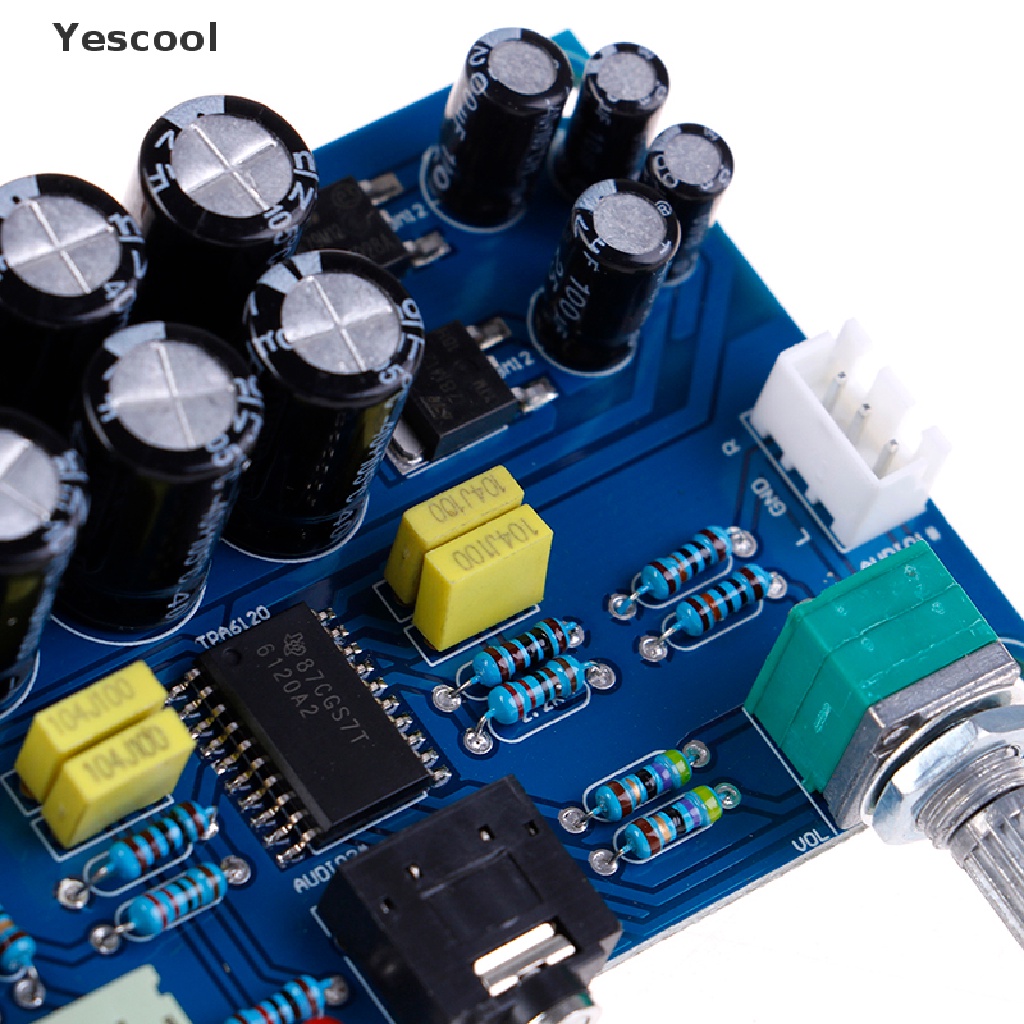

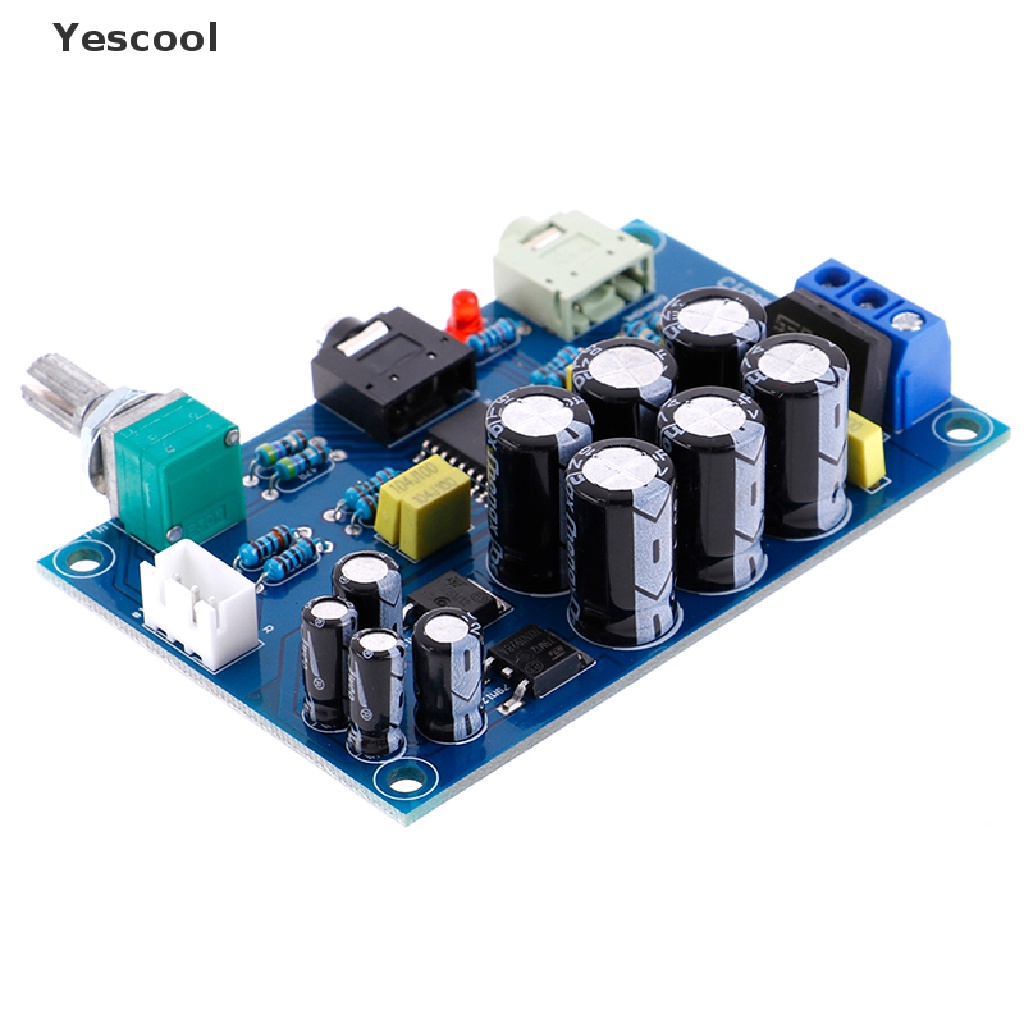

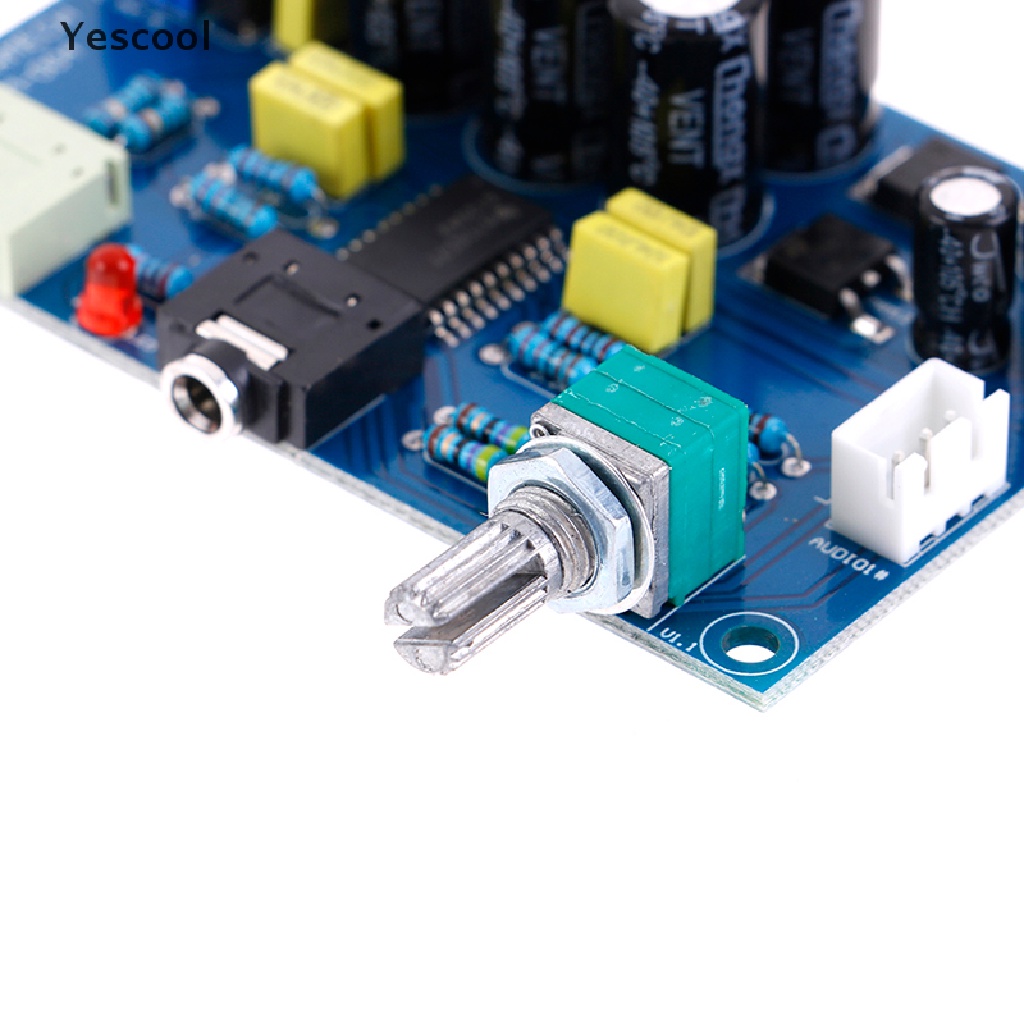

Gambar produk
