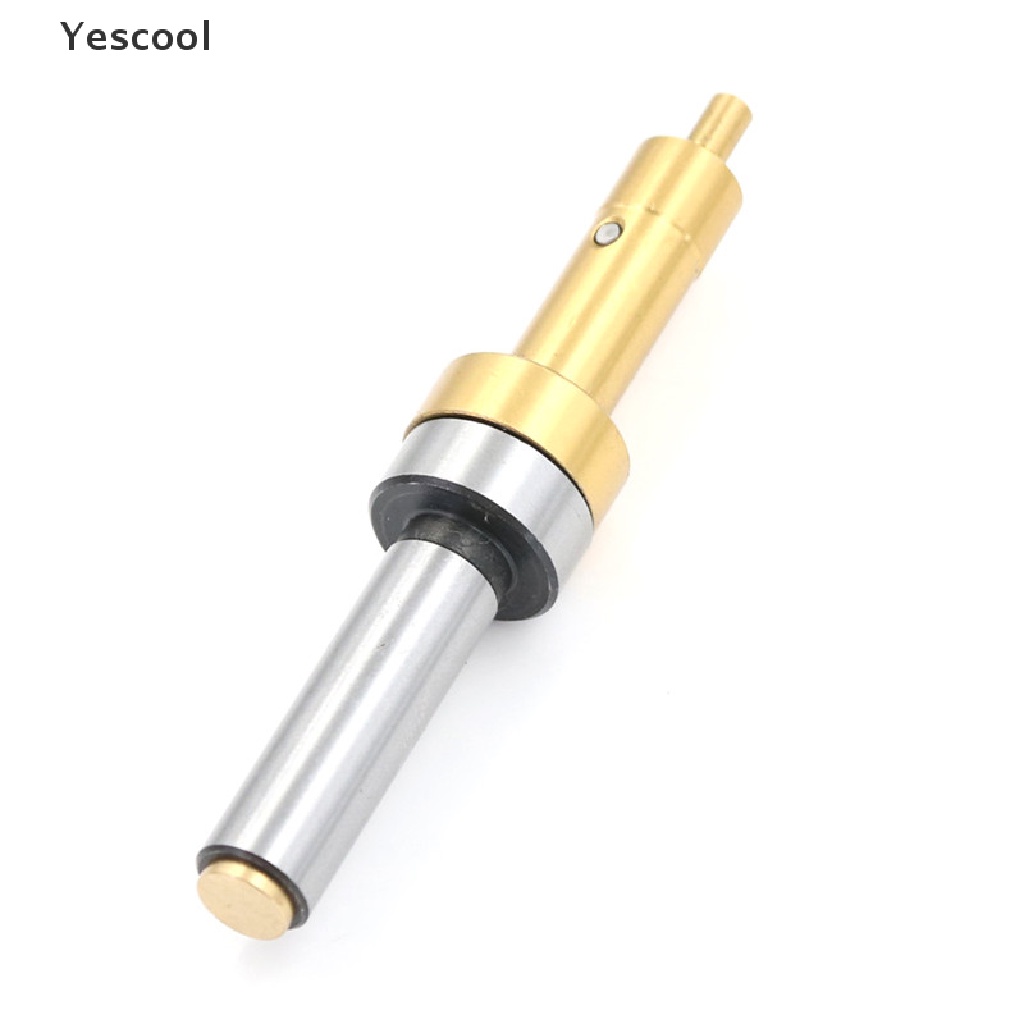

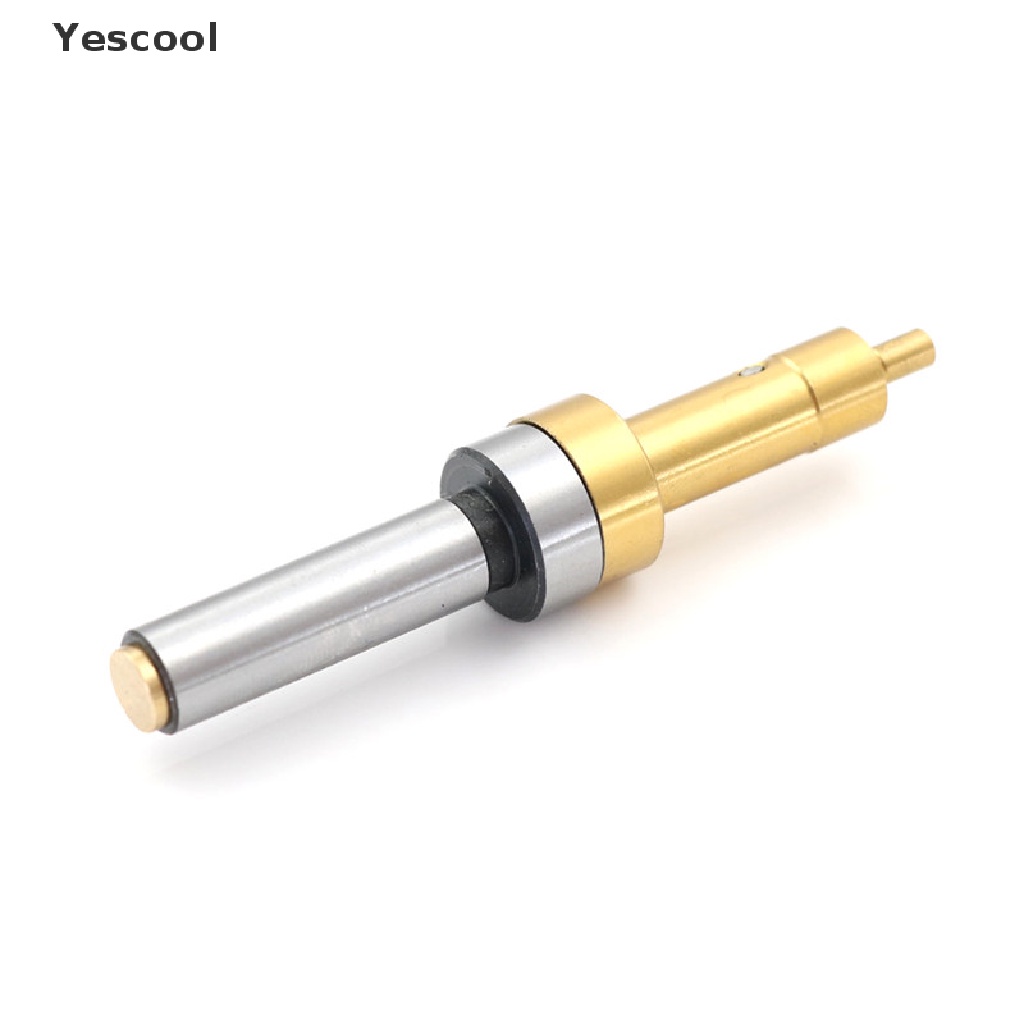

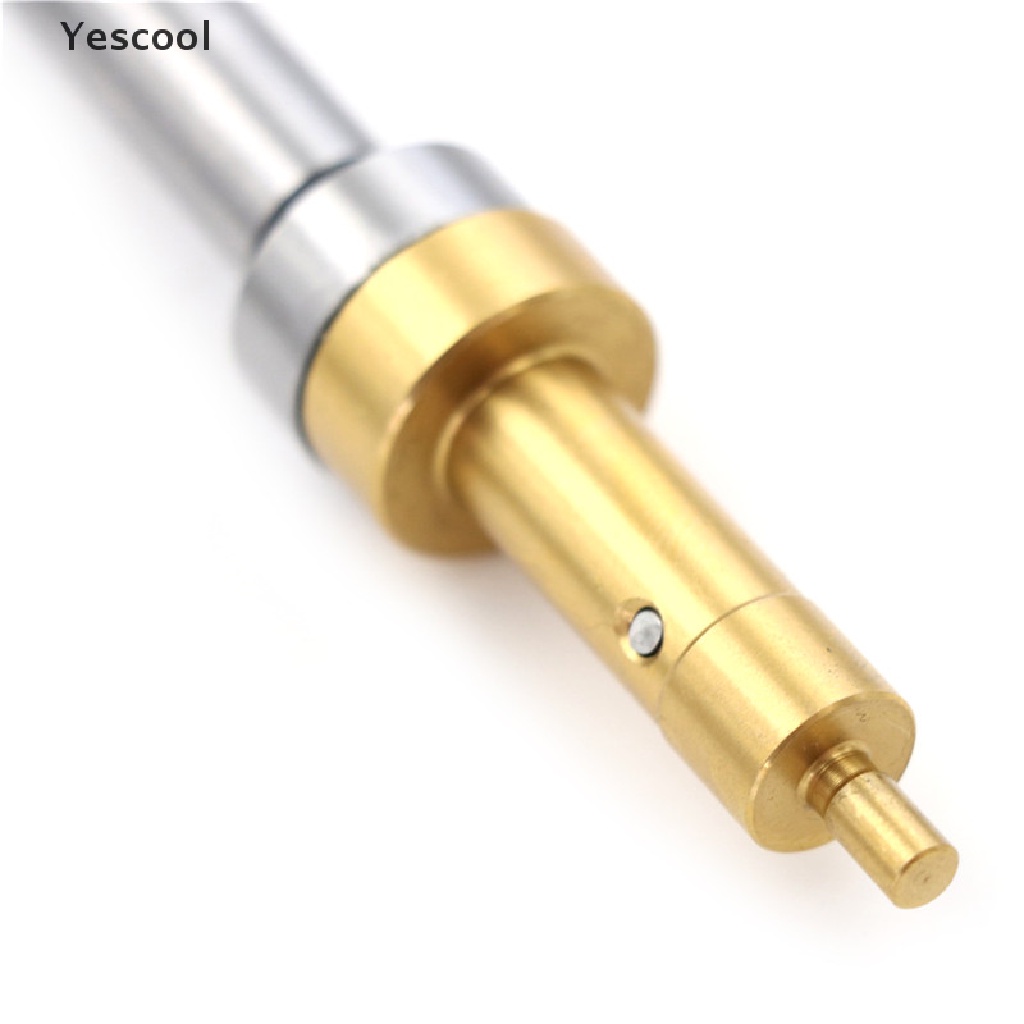

Yescool Edge Finder Shank 10mm 4mm Untuk Mesin Milling CNC

Detail Yescool Edge Finder Shank 10mm 4mm Untuk Mesin Milling CNC

This product is a high-precision measurement tool that can quickly and easily set mechanical spindle and workpiece datum

exact center position: accuracy and reproducibility of competent drilling, milling, boring and grinding jigs, etc.

The precision positioning work.


Specification:

Material:HSS

Dimensions:

probe：4mm(DIA)

total: 90x17.5mm(LXW)

shank： 10mm(DIA)

Unplug finder’s pins, the spring can be replaced.

Edge finder's role is to determine the position of the workpiece on the machine, which determine the working coordinate system.


Feature:

1, applies to traditional milling machines and machining centers

2, with the speed 400-600rpm use.

3, the mechanical rotation measurements,no clamping errors, repeat the measurement accuracy up to within 0.005mm.

4, specially designed probe 4mm, provide for a small aperture is narrow trench and measured using.

5, the lower end of the rotation part is magnetically shielded.


Package include:

1 x Precision Edge Finger


Note:Please allow 0-3cm error due to manual measurement. pls make sure you do not mind before you bid.
