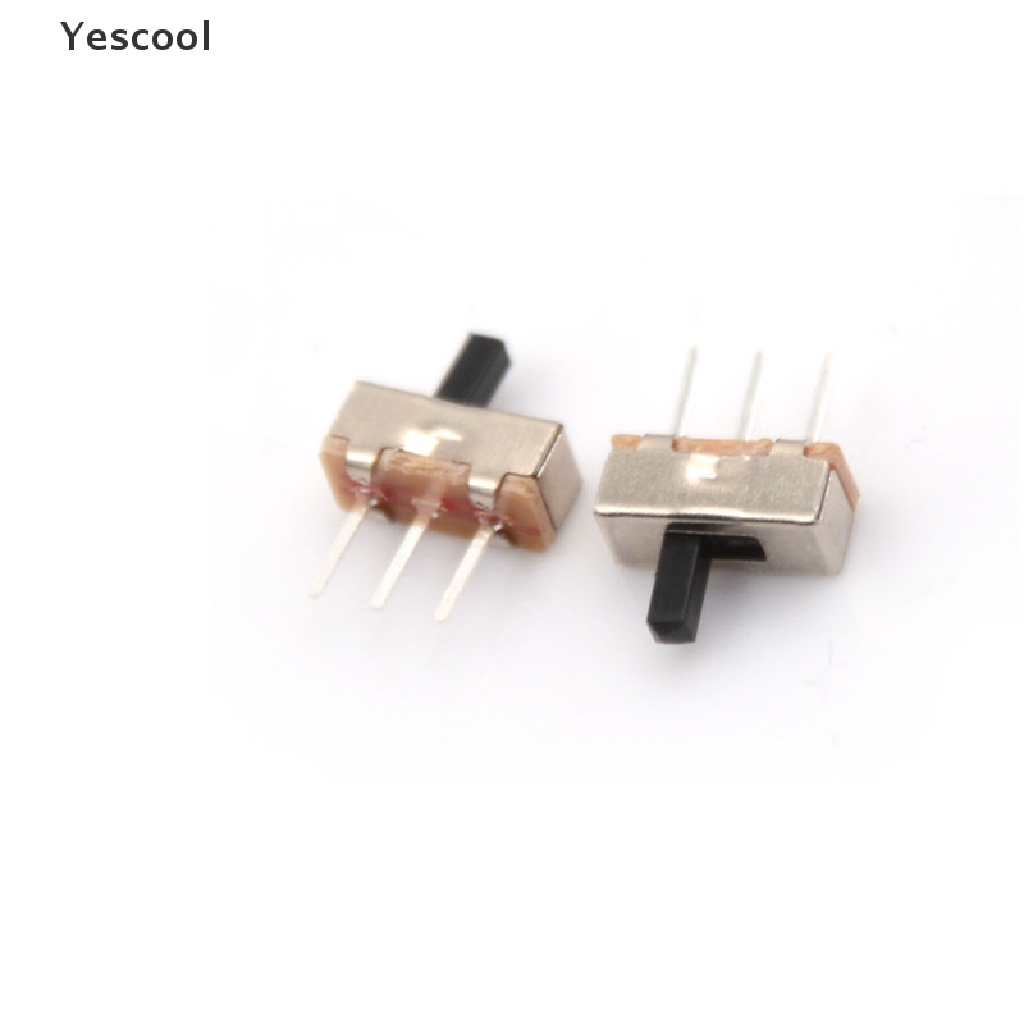

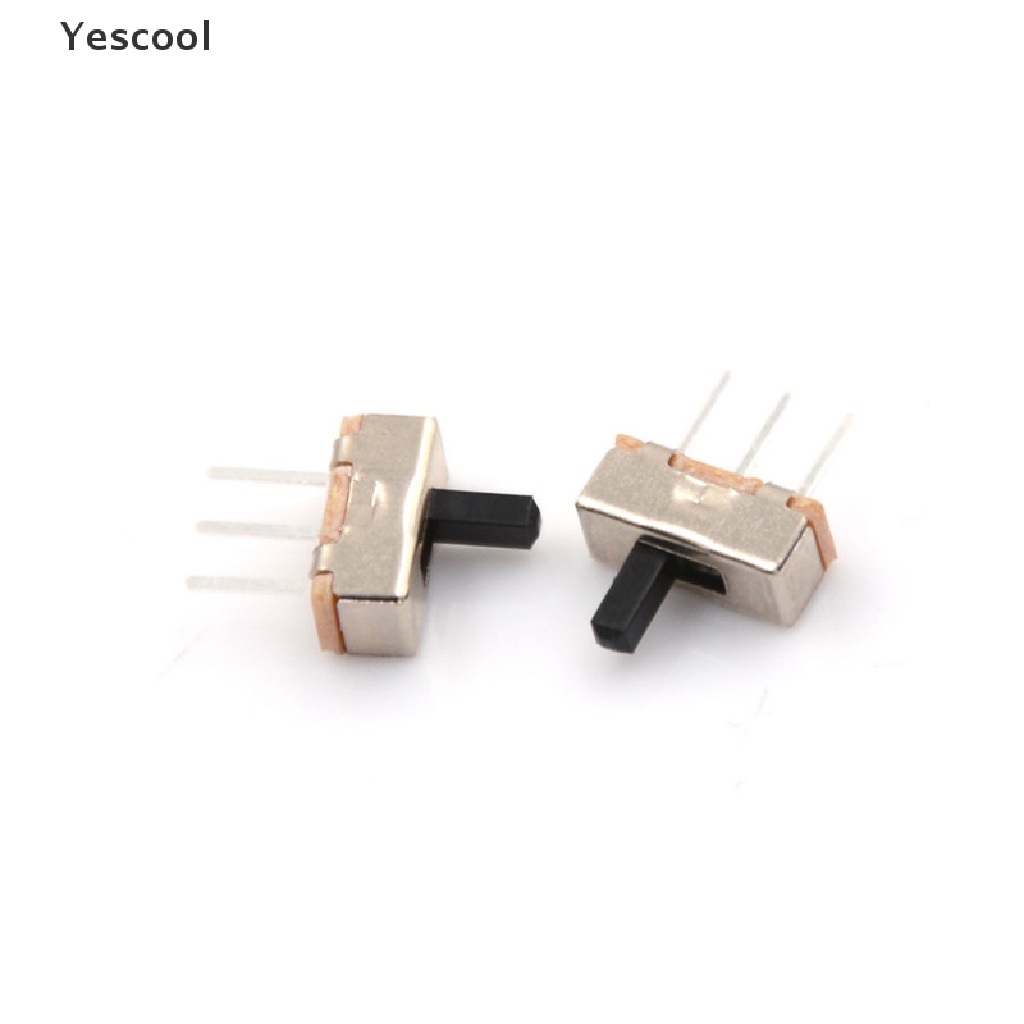

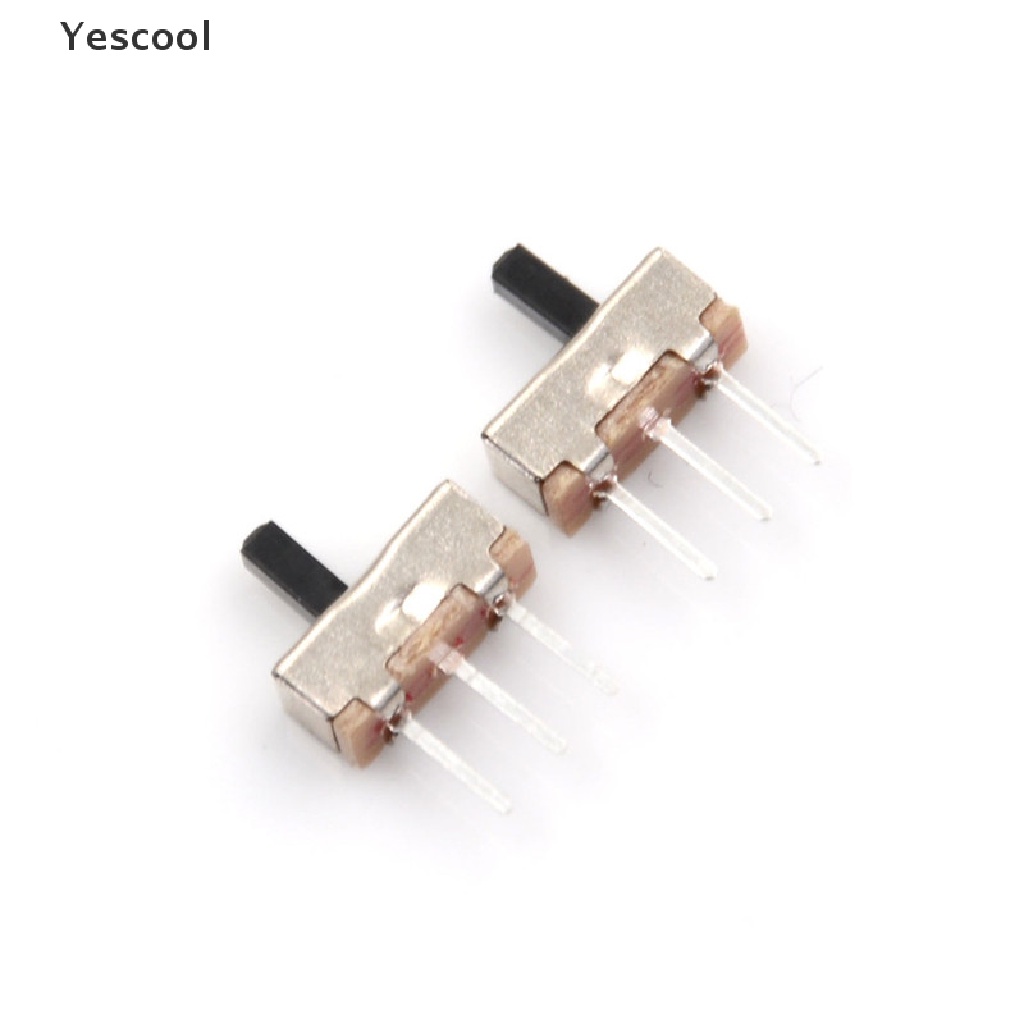

Yescool 10Pcs Saklar Slide Panel PCB Vertikal 2 Posisi SPDT 1P2T 3 Pin 4mm
Deskripsi singkat
Perlengkapan Rumah > Perkakas > Perkakas Lainnya > Yescool 10Pcs Saklar Slide Panel PCB Vertikal 2 Posisi SPDT 1P2T 3 Pin 4mm
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Yescool 10Pcs Saklar Slide Panel PCB Vertikal 2 Posisi SPDT 1P2T 3 Pin 4mm
Features:Easy Structure, Mini Body, 3 Terminal, Vertical Handle, 1 Pole 2 Position, Sliding Knob Actuator.Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.
Also a great component for DIY.
Size:4mm
Model : SS12d00;
Type : 1 Pole 2 Throw;
Terminal Quantity : 3 Pcs
Working Power : 0.5A 50V DC;Contact Resistance : 30m¦¸ Max;Insulation Resistance : 100m¦¸ Min at 500V DC;Withstand Voltage : AC 500V for 1 min
Terminal Length : 3mm/ 0.12";Pin Pitch : 2.54mm / 1";Main Body Size(not include Pins & Knob) : 8 x 4 x 3.8mm/ 0.31" x 0.16" x 0.15"(L*W*H)
Switch Total Size : 8 x 4 x 10mm/ 0.31" x 0.16" x 0.39"(L*W*H);Knob Size : 1.5 x 1.5 x 3mm/ 0.06" x 0.06" x 0.12"(L*W*H);

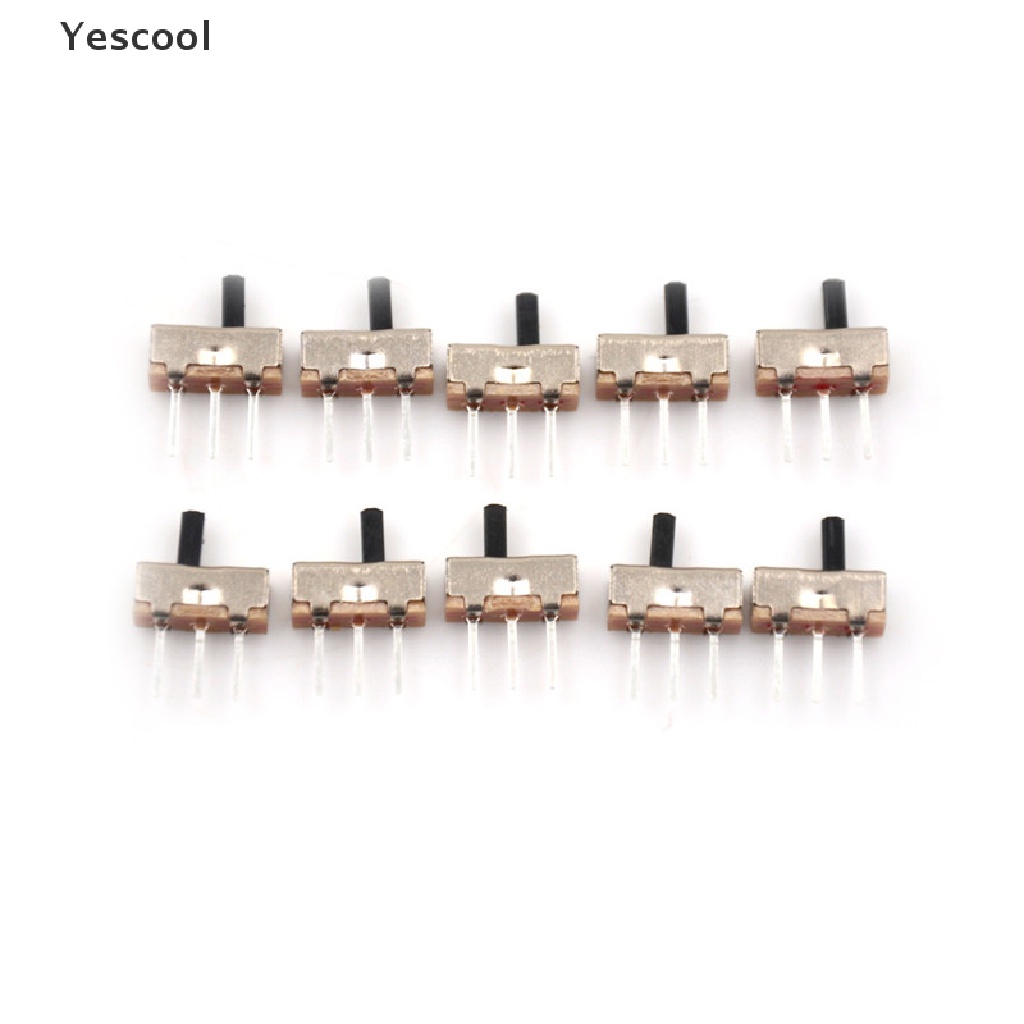

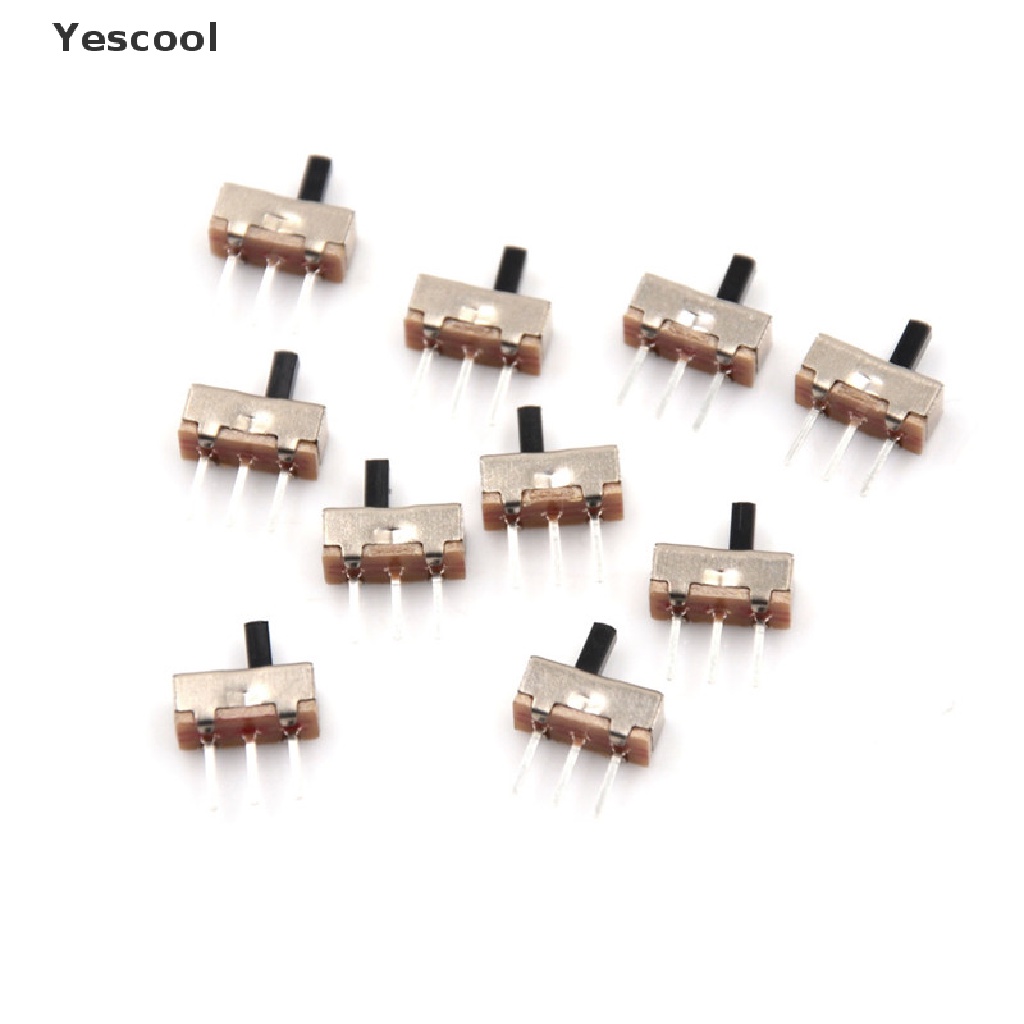

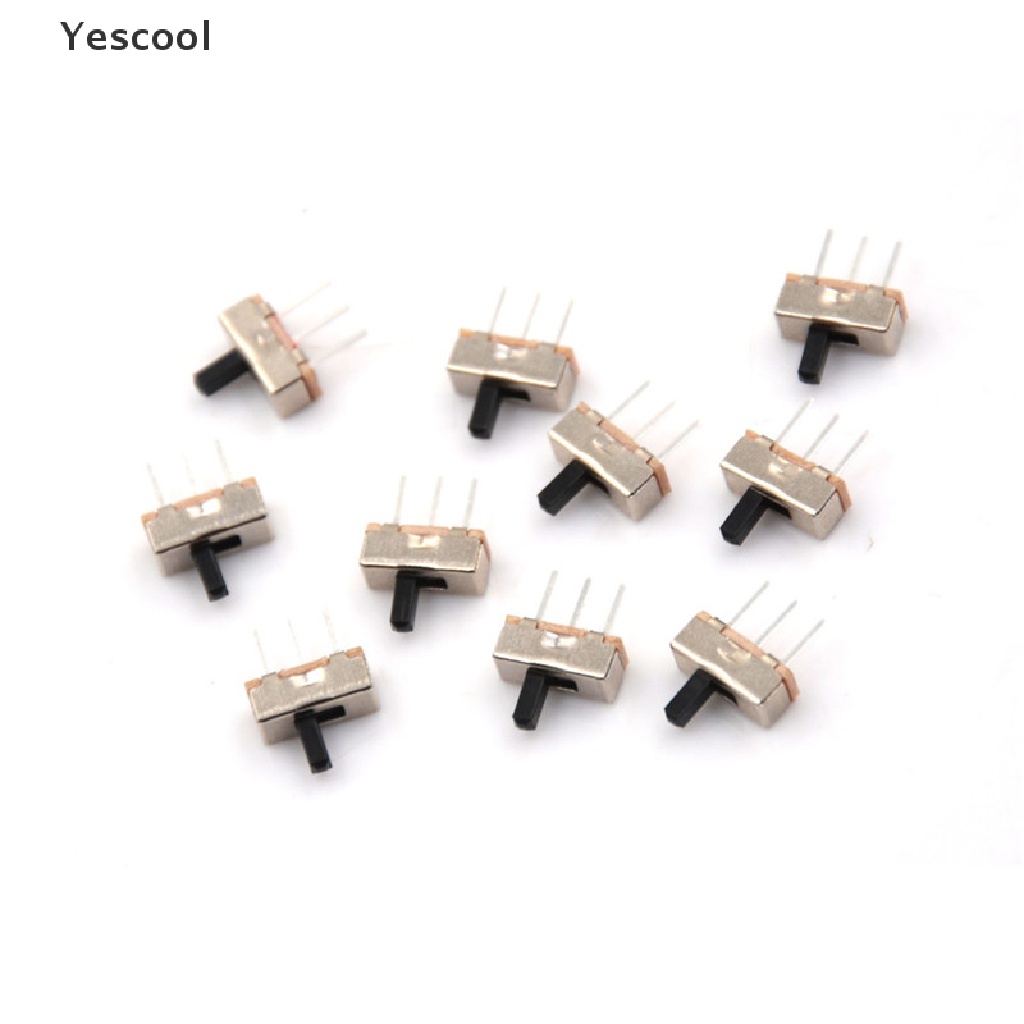

Package Content : 10pcs x Slide Switch
Gambar produk
