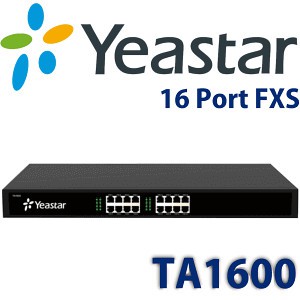

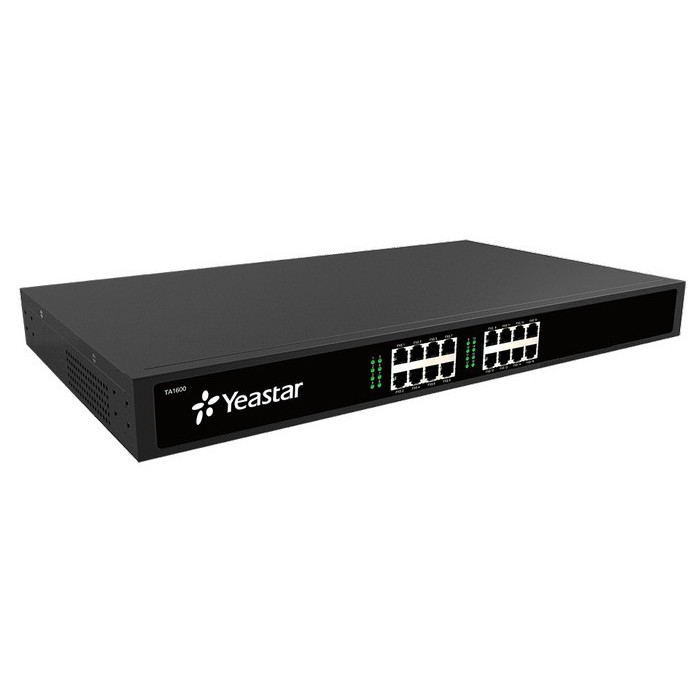

Yeastar NeoGate TA1600 - 16 FXS Analog VoIP Gateway

Detail Yeastar NeoGate TA1600 - 16 FXS Analog VoIP Gateway

Featuring 16 FXS ports, the Yeastar NeoGate TA1600 connects analog terminals, PBX or key systems to the IP network using FXS connectivity. The NeoGate TA1600 multi-port FXS gateway helps to preserve previous investments on legacy telephone systems and reduce communication costs significantly with the true benefits of VoIP

Yeastar TA1600 offers 16 FXS ports to connect TDM based telephony infrastructure to an IP network. TA1600 facilitates communication for small and medium sized businesses with a cost-effective and reliable solution

Keys Features and Functions:
Fully compliant with SIP and IAX2
Flexible calling rules
Reliable fax performance with T.38
Superb voice compression with industry standard codecs
Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
User-friendly Web GUI and intuitive operations for easy configuration and management
Excellent interoperability with a wide range of legacy and IP equipment
Tested and certified with Elastix, BroadSoft, and others
LED indicators present system and port status visually
Comprehensive call log, system logs, hardware logs, and debug logs

Specifications:
Ports 16 FXS Ports
Telephony Interfaces RJ11 and RJ21 50-pin Telco Connectors
LAN 1 10/100Mbps
Protocol SIP (RFC3261), IAX2
Transport UDP, TCP, TLS, SRTP
Codec G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice Capability ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
DTMF Mode RFC2833, SIP Info, In-band
Fax T.38 and Pass-through
Caller ID BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Compatibility Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
Mounting Desktop, Rack-mount
