Yamaha FWX120 Faster Internet Firewall

Detail Yamaha FWX120 Faster Internet Firewall

Yamaha FWX120 Internet Firewall Faster

Faster WAN, License-free Security, Stress-free Management All Combined in a Single Unit!

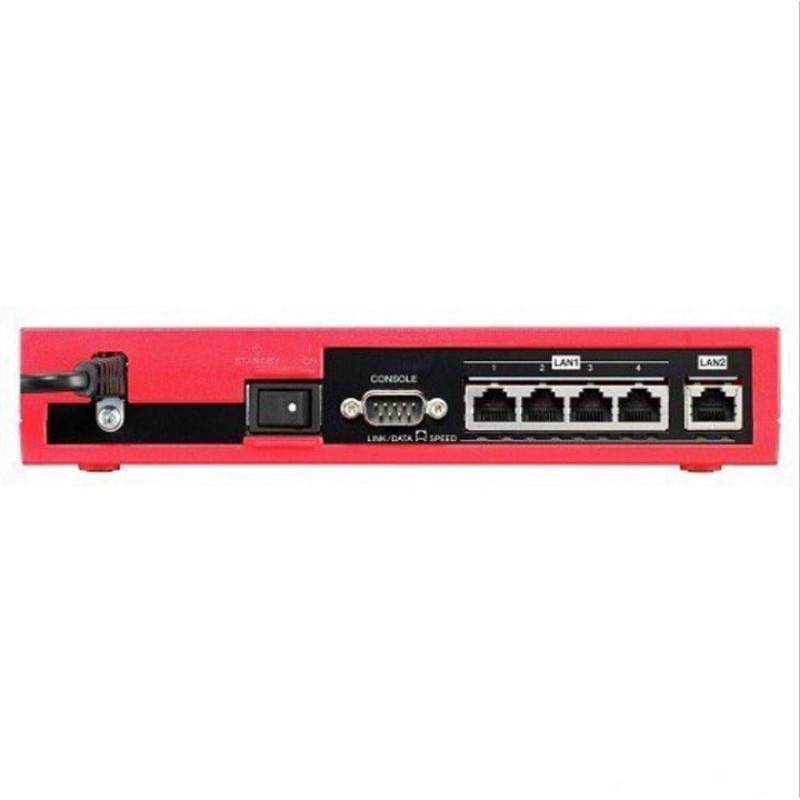

WAN > 1 port (10BASE-T/100BASE-TX/1000BASE-T, St raight/Cross auto-distinction) *Labeled as LAN2 on the rear panel of the unit.

LAN > 4 port switching hub (10BASE-T/100BASE-TX/1000BASE-T, Straight/Cross auto-distinction) *Labeled as LAN1 on the rear panel of the unit.

LAN switching function > Port separation, LAN segmentation (Port base VLAN), Port mirroring

microSD slot > 1 (Up to 32GB)

USB port > 1 (USB2.0 Type-A, Feed current: Max. 500 mA, Available with USB flash drive/USB 3G modem)

Console port > 1 (D-sub 9 pin, DTE fixed, 9,600bit/s)
Flash ROM > 16MB
RAM > 256MB
Status LED > Front: 6 (POWER, STATUS, LAN1, LAN2, microSD, USB), Back: 10 (LINK5, SPEED5)
Power supply input range > AC100 to 240 V (50/60 Hz)
Maximum power consumption > 11W

Accessories > LAN cable (3 m, RJ-45, straight) (x1), Users Manual, CD-ROM (x1)
(Users Manual, Operation Manual, and Command Reference are included in it.)

Throughput > Up to 1.0Gbit/s
IPsec throughput > Up to 200Mbit/s
IPv4 routing protocol > RIP, RIP2, OSPF, BGP4
IPv6 routing protocol > RIPng
WAN protocol > PPPoE (Up to 5 sessions)
