Yamaha DBR12 DBR-12 DBR 12 Speaker Aktif 12 Inch Yamaha Original

Detail Yamaha DBR12 DBR-12 DBR 12 Speaker Aktif 12 Inch Yamaha Original

HARGA 1 SET ATAU 2 UNIT
BARANG BARU & ORIGINAL YAMAHA
GARANSI RESMI YAMAHA INDONESIA

FEATURES
1000 watts class D power
Lightweight enclosure
Broad coverage

SPECIFICATIONS
DBR12 Powered Speake
Type: 2-way, Bi-amp powered speaker, Bass-reflex type:
Frequency range (-10dB): 52Hz - 20kHz
Nominal coverage, H: 90°, V: 60°
Components: Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Crossover: 2.1kHz: FIR-X tuning (linear phase FIR filter)
Output power: Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis): 131dB SPL
I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation: Fan cooling, 4 speeds
Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption: 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material: Plastic
Finish: Black
Handle: Side x 2
Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket: 35mm (Bottom x 1)
Dimensions: 376mm (14.8")
H: 601mm (23.7")
D: 348mm (13.7")

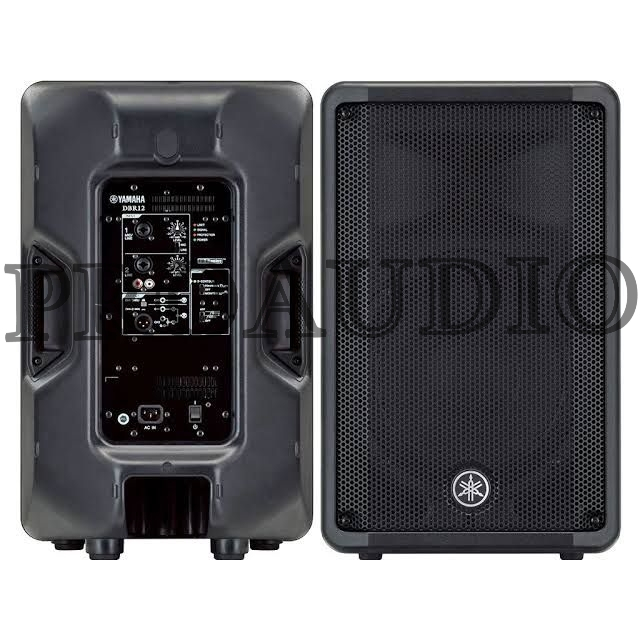

Gambar produk
