YAESU FT-710

Detail YAESU FT-710

YAESU FT-710

- HF/50MHz band 100W Compact SDR Transceiver
- SDR circuit configuration emphasizes Receiving Performance which is enabled by the same high-resolution A/D converter and FPGA used in YAESU high-end SDR transceivers.
- Powerful RF Front-End and Low Noise Oscillator System enable Phenomenal Multi-Signal Receiving Characteristics*
RMDR:113dB+ BDR:127dB+
3rd IMDR:102dB+ TX Phase Noise: -143dBc/Hz
*Multi-Signal Receiving Characteristic: 14MHz band/2kHz separation *TX Phase Noise: 100W, CW mode
- Band-Pass-Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals
- Built-in High-speed Automatic antenna tuner with 100 channel memory
- Effective QRM rejection afforded by Dual-core 32-bit high speed floating decimal point DSP

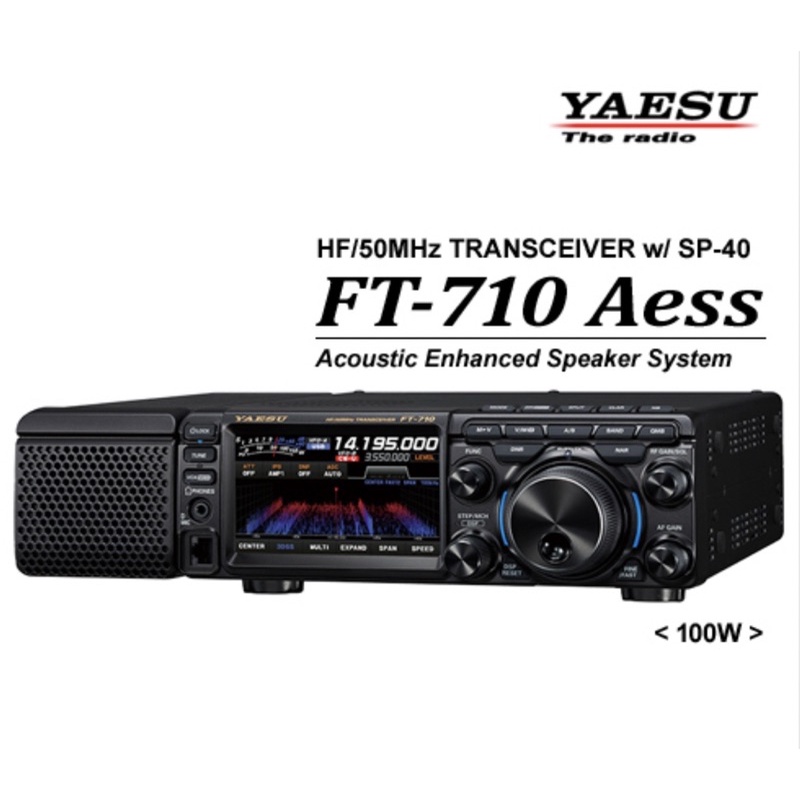

- AESS (Acoustic Enhanced Speaker System) with the supplied SP-40 speaker to create High-fidelity audio output

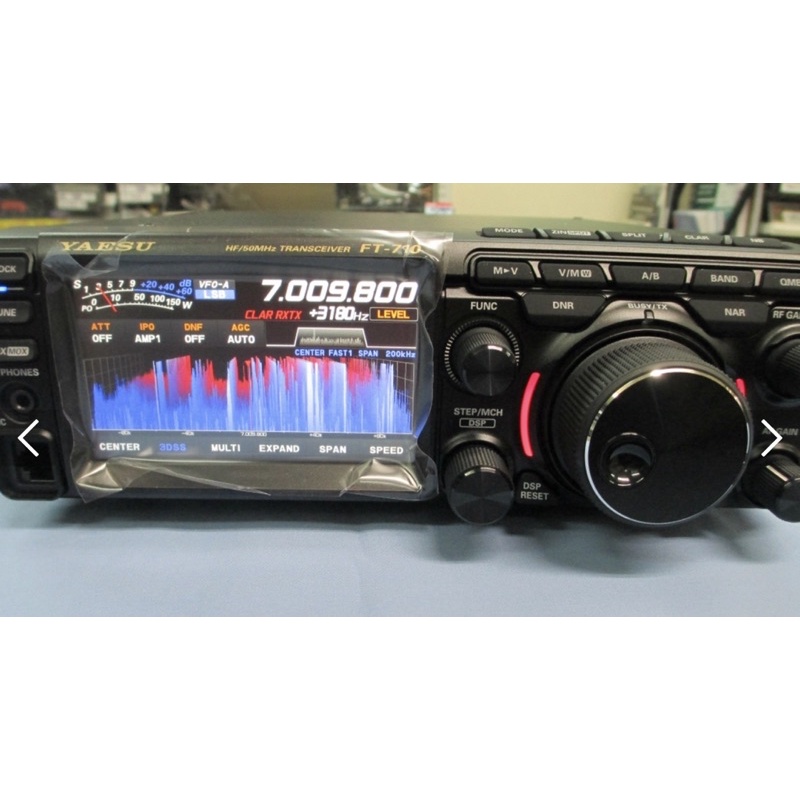

- High Resolution 4.3-inch TFT Color Touch Panel Display

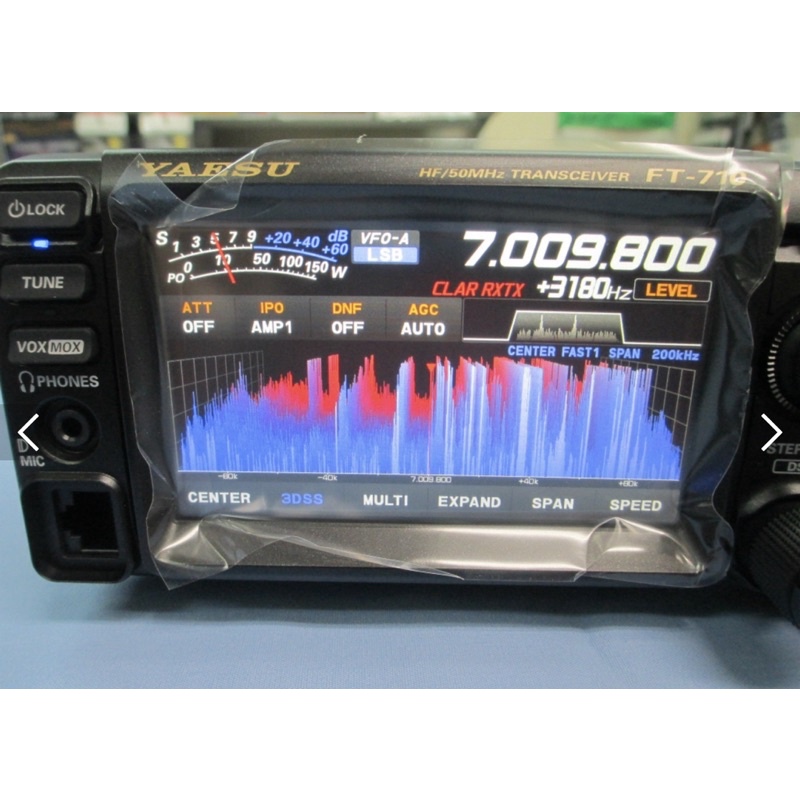

- 3DSS, real-time 3-Dimensional Spectrum Stream presentation
- VMI (VFO Mode Indictor) shows the current operating mode (VFO-A, VFO-B, Memory Mode and Clarifier/Split operation) at a glance
- PRESET Mode functions most suitable for FT8 operation
- Equipped with the External Display terminal (DVI-D)
- Two (2) USB Ports (Type-A and Type-B)
- SD Memory Card Slot
- Support the FC-40 Auto Antenna Tuner
- Remote Operation with Network Remote Control System (Available in the near future)

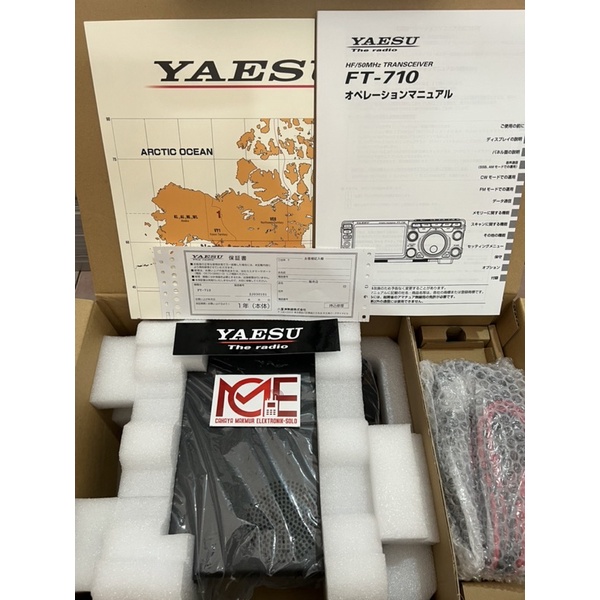

Supplied Accessories:

External Speaker SP-40
Microphone SSM-75E
DC Power Cable w/Fuse Spare Fuse
Operating Manual

Specifications:
Frequency Ranges: RX 30kHz - 75MHz (Operating)
1.8MHz - 29.699999MHz (Specified performance, Amateur bands only)
TX 1.8MHz band - 50MHz band (Amateur bands only)
Modulation Type: A1A(CW), A3E(AM), J3E(LSB,USB), F3E(FM)
Frequency Stability: 0.5ppm (after 1 minute @ +32F to +122F / 0C to +50C)
Supply Voltage: DC 13.8V 15%
RF Power Output: 5W - 100W (5W - 25W : AM Carrier)
Dimensions (W x H x D): 9.4" x 3.1" 9.7" (239 x 80 x 247mm)
