Detail XXD 30A ESC Brushless Motor Speed Controller untuk RC Airplane Helicopter
Function: 1. Safe power on function: When the power is on, the motor will not be started immediately no matter the throttle rocker is in any position to avoid personal injury; 2. Throttle stroke calibration function: adapt to the difference of throttle stroke of different remote control, improve the linearity of throttle response, with smooth, delicate speed control feel and first-class speed regulation linearity; 3. Program setting items: Battery type: Li-xx (lithium battery) / Ni-xx (nickel cadmium or nickel metal hydride), the default value is Li-xx (lithium battery). Low Voltage Protection Mode: Reduce power/turn off the output, the default is to reduce power. Low Voltage Protection Threshold: Low/medium/high, the default is Cut-off discharge voltage. When the Li-xx battery is set, the number of lithium batteries will be automatically determined. Under low/medium/high conditions, the cut-off voltage of each battery is respectively 2.6V, 2.85V and 3.1V. When the Ni-xx battery is set, the voltage of the battery pack will be automatically detected when the power is turned on. In low/medium/high cases, the cut-off voltage is 0%, 45% and 60% of the input voltage at startup (0% means no low-voltage protection). Startup mode: normal/soft/super soft startup, default is normal startup. Normal start is suitable for fixed wing, can start the motor quickly in 0.2 seconds Soft start/super soft start for helicopter; The initial rotation speed of soft start and super soft start is relatively low, it takes 1 second and 2 seconds from start to full speed respectively, but if the throttle is turned off after start and the starting again within 3 seconds, the starting will be in normal mode, so as to avoid falling down due to slow reaction during some stunt actions. Timing: Low/medium/high, the default is the middle value. In general, the low Timing can accommodate more motors, but to improve efficiency, it is recommended to use a low-Timing for a 2-pole motor and a medium-Timing for a motor with more than 6 poles. To increase the speed, the Timing can be set to a high value. After improving the Timing setting, you should test it on the ground before flying.
Process Features: 1. The power input terminal adopts ultra-low impedance large-capacity electrolytic capacitor, which greatly improves the anti-interference ability; 2. The output MOSFET power tube is equipped with an independent heat sink to reduce the temperature rise of the device and improve the system's high current working capacity; 3. Using single-chip control; 4. The single-chip microcomputer adopts an independent voltage-stabilizing chip to avoid power supply interference caused by BEC load change and improve the working stability of the single-chip microcomputer.

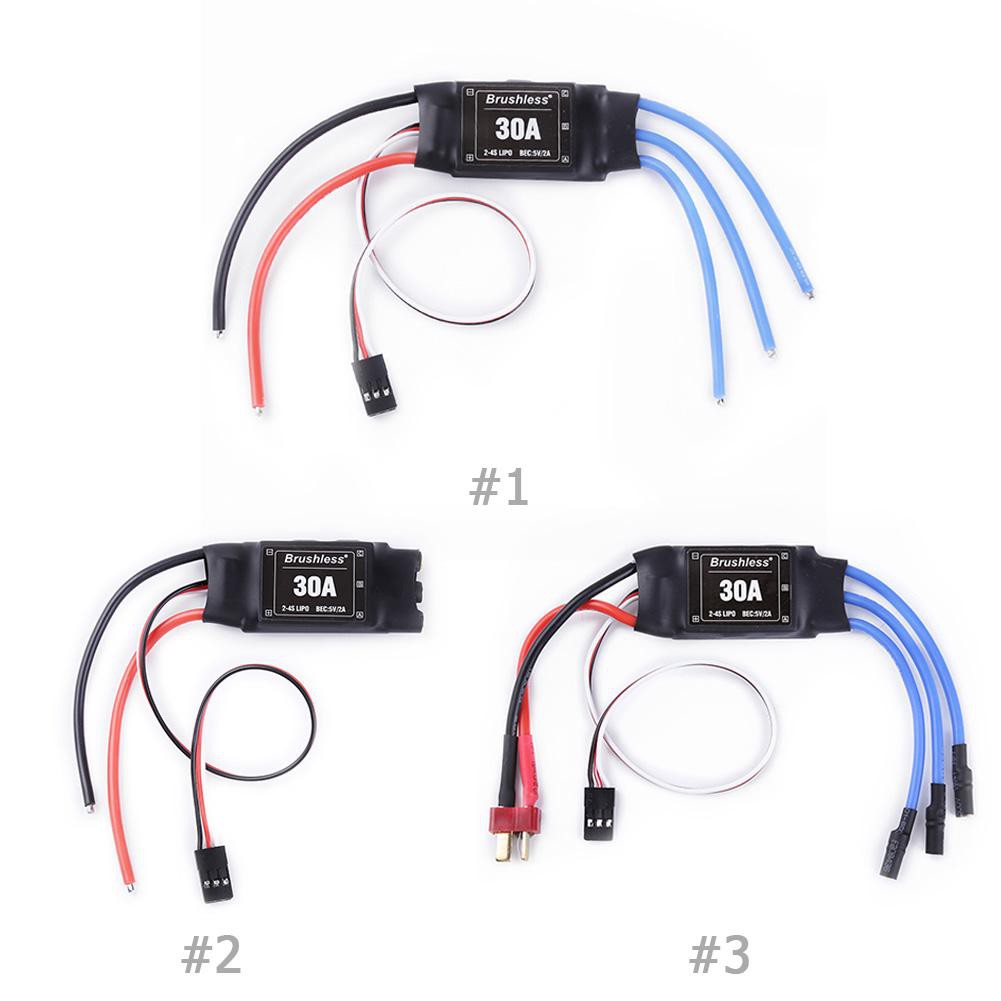

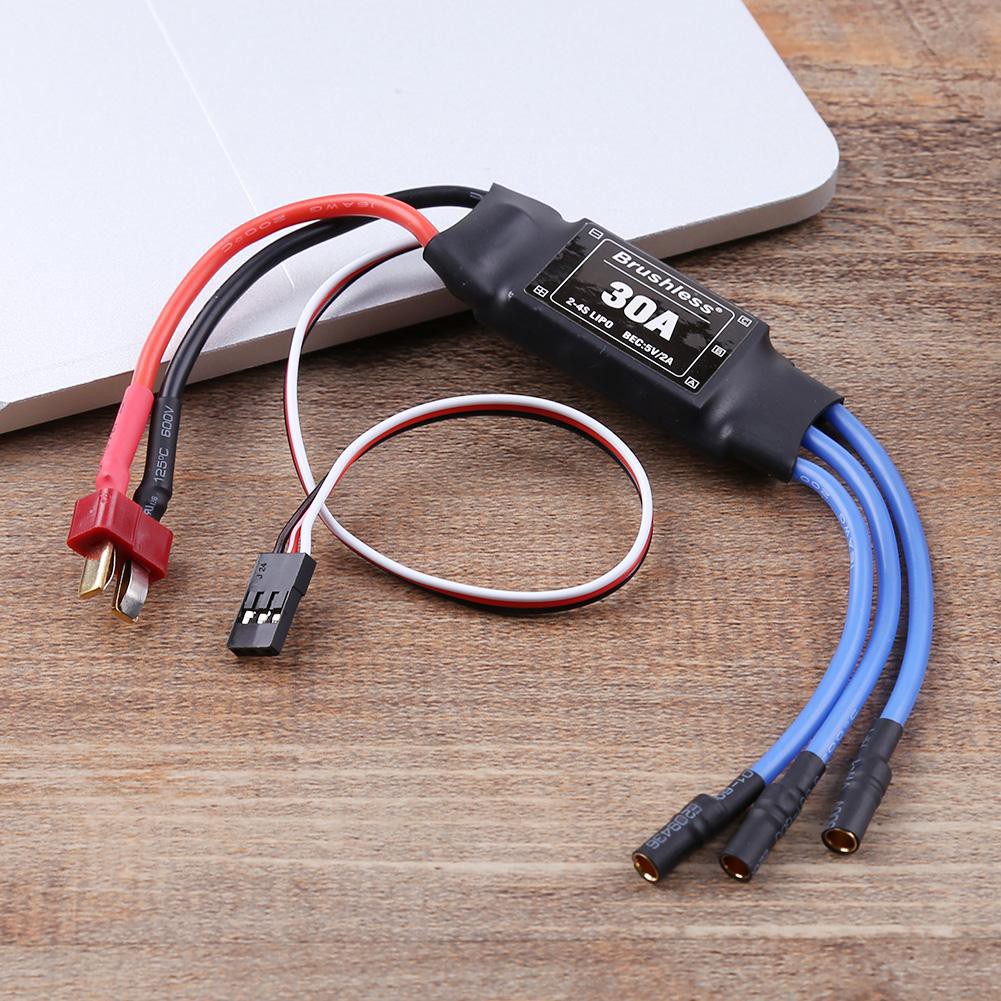

Extreme Use: Continuous current 30A, instant 35A, 40A for 10 seconds. Type: (1)Without Plug (2)Welded T plug (3)Gold Plug Size/Weight: 45 X 24 X 11mm/1.77 X 0.94 X 0.43", 25g (Including Cable) Voltage Range: 4V-16V Batteries Quantity: 2

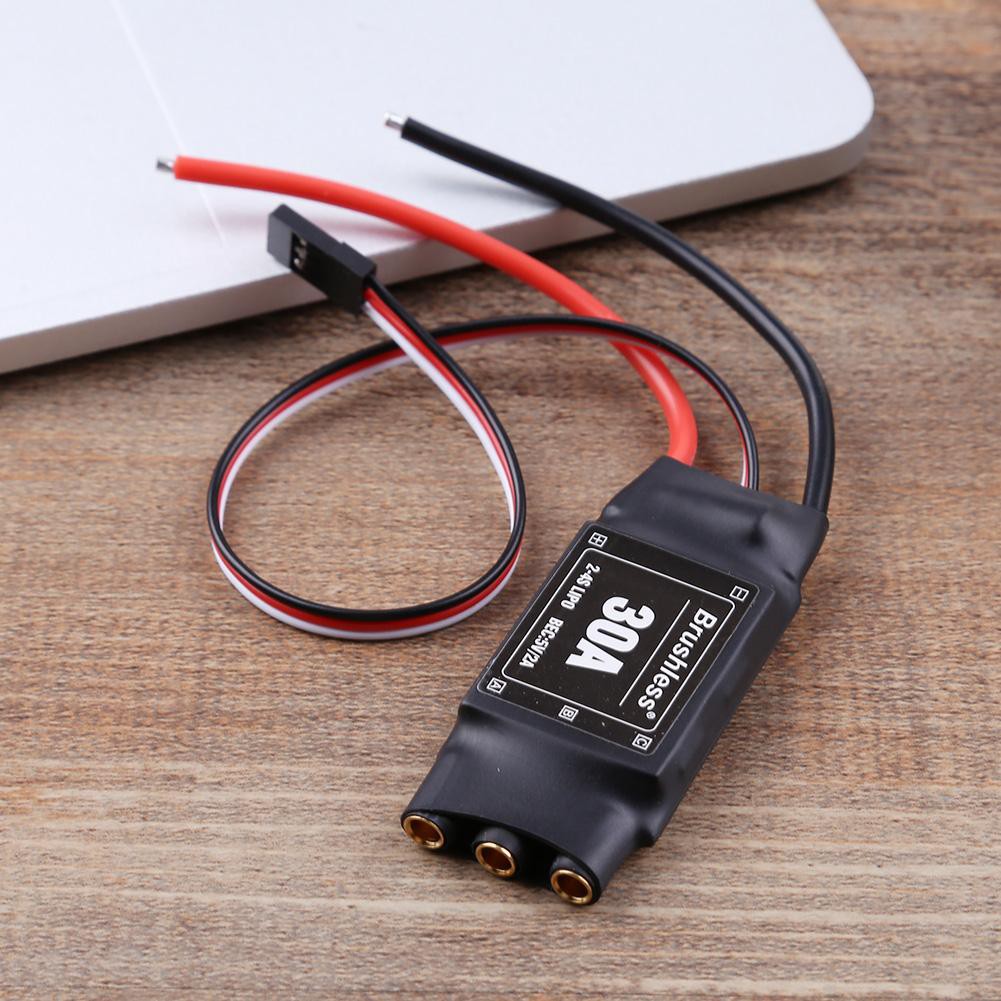

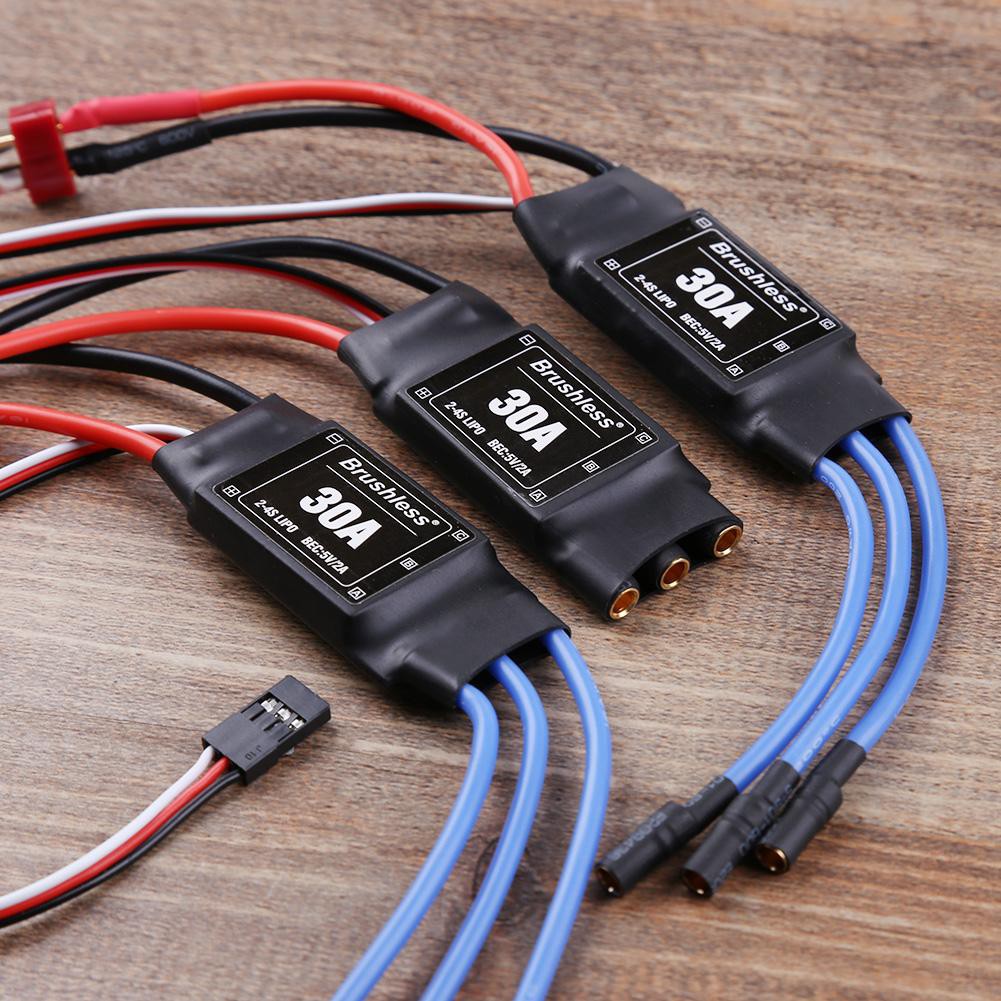

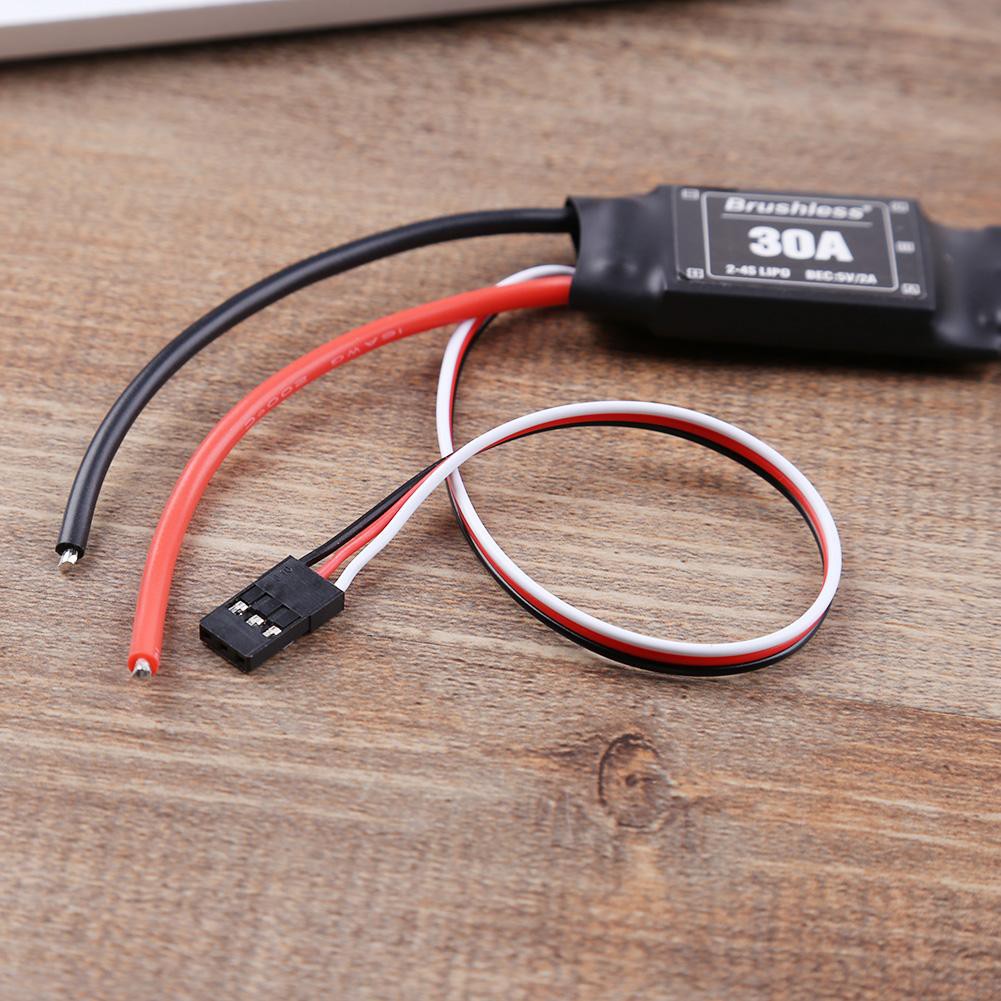

Gambar produk
