XPG PYLON - PSU Power Supply Unit 650W BRONZE

Detail XPG PYLON - PSU Power Supply Unit 650W BRONZE

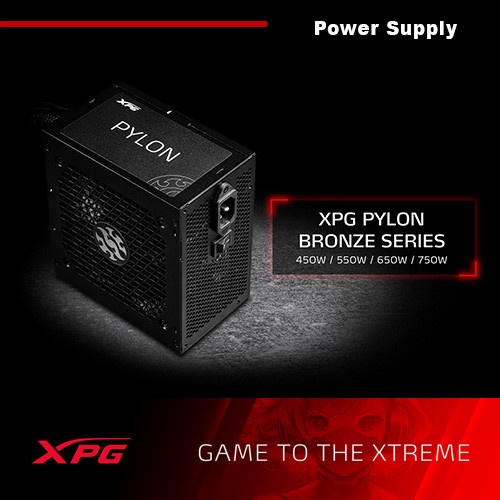

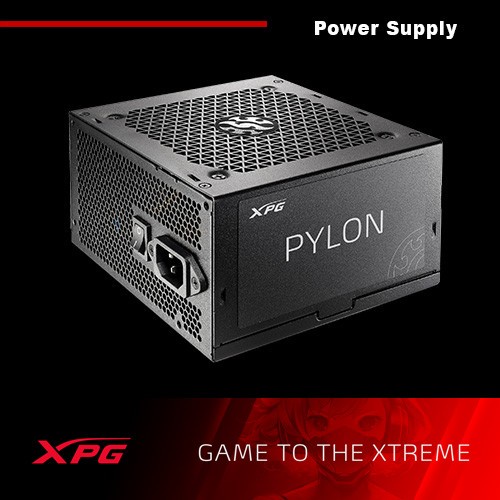

XPG PYLON Power Supply Unit 650W

- DC to DC Converters
- 80PLUS BRONZE Certified
- Continuous Power for 24/7 system operation
- 120mm FDB Silent-Performance Fan
- High Current +12V rail system compatibility
- Main Japanese Capacitor
- Multiple PCI-E 2.0 6+2 Pin Connectors
- Industrial-Level Protection OVP, OPP, SCP, OCP, UVP, OTP, NLO, SIP
- Complies with ErP 2014 Lot 3
- RoHS Compliance

Dimensions (L x W x H) : 150 x 140 x 86mm

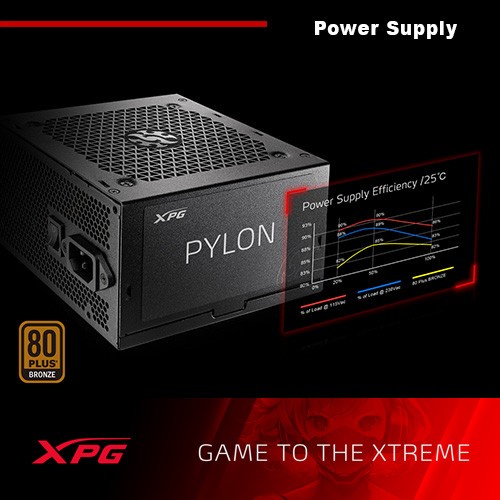

80 PLUS RATING : BRONZE
ATX Version :
Intel ATX 12V V2.4 (Timing complies with Intel ATX12V Specific guidelines to version 2.52)

Protections : OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification : CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC

PFC : 0.99
Input Voltage : 100-240V
Input Current : 650W10A/5A
Input Frequency : 50Hz - 60Hz
Operating Temperature : 50

Fan Size : 120mm
Fan Bearing : FDB (Fluid Dynamic Bearing)
Fan Speed : 2,000 RPM
MTBF : 100K Hours at 25

ATX 24 Pin Connector : 1
EPS 8 (4+4) Pin Connector : 1
SATA Connector : 8
Peripheral 4 Pin Connector : 1
PCI-E 6+2 Pin Connector : 4

Warranty : 3 Years
