Xm-18 Egg Incubator Termostat Hygrostat Termohygrostat Automatic

Detail Xm-18 Egg Incubator Termostat Hygrostat Termohygrostat Automatic

Digital Automatic Sensor Probe XM-18 Temperature and Humidity Controller Thermostat

Aplikasi :
1. Penetas Telur
2. Inkubator Bayi
3. Climat chamber
4. Gudang (warehouse)
5. aplikasi incubator lainnya di industri dan laboratoriun.

Main Technical Index:
1. Temperature display range: 0 ~ 99.9 C
2. Temperature measurement accuracy: 0.1 C
3. Humidity display range: 0-99% RH
4. Humidity control accuracy: 3% RH
5. Output path: 7 Road ( over-temperature, temperature control, insufficient temperature, egg-left turning, egg right-turning, humidity control, alarm )
6. The maximum output load current: temperature control, insufficient temperature <= 8A/AC 220V, over-temperature,egg-left turning, egg right-turning, humidity control, alarm<= 1A /AC 220V
7. Number of egg-turning : Maximum record 999 times.
8. Cycle of egg-turning: from 0 to 999 minutes (factory set at 90 minutes)
9. Turn the eggs time: 0 to 999 seconds (factory set at 180 seconds)
10. Ventilation cycle : 0-999 minutes (factory set at 120 minutes)
11. Ventilation time: 0-999 seconds (Factory set at 30 seconds)
12. The measuring line length: 1.5 meters

Working conditions:
1. Working voltage: AC 160V ~ 240V, 50Hz
2. Relative humidity: less than 85%
3. Ambient temperature: -10 ~ 60 C

Package content:
1 x XM-18 Incubator Controller Thermostat Hygrostat
1 x Temperature sensor
1 x Humidity sensor

catatan:
- Indahkan kata-kata egg pada manual ini jika incubator controller dipakai utk selain incubator penetas telur karena hakikatnya ini adalah alat pengatur otomatis utk mengontrol temperature dan humidity secara bersamaan
- tuning utk motor putar kiri dan kanan tidak harus pelu dipakai jika incubator yg qt bikin tdk memerlukannya. tuning motor tersebut biasanya dipakai utk incubator yg besar sehingga objectnya perlu digeser/diputar agar pemanasan merata.

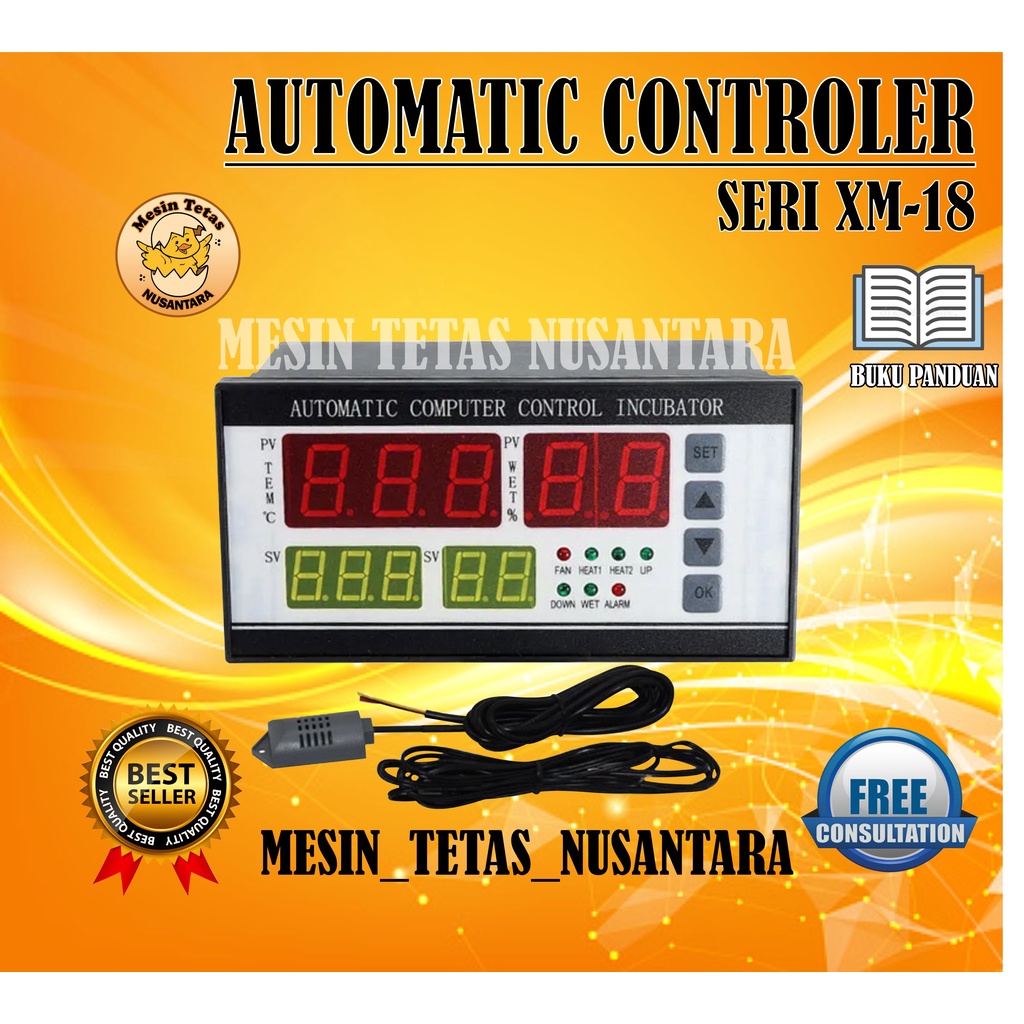

Gambar produk
