XL6009 MODUL PENAIK TEGANGAN BOOST STEP UP CONVERTER 3V 3,3V 5V 9V 12V 24V 32V MAX TINGGAL PUTAR POT
Deskripsi singkat
Elektronik > Elektronik Lainnya > XL6009 MODUL PENAIK TEGANGAN BOOST STEP UP CONVERTER 3V 3,3V 5V 9V 12V 24V 32V MAX TINGGAL PUTAR POT
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail XL6009 MODUL PENAIK TEGANGAN BOOST STEP UP CONVERTER 3V 3,3V 5V 9V 12V 24V 32V MAX TINGGAL PUTAR POT

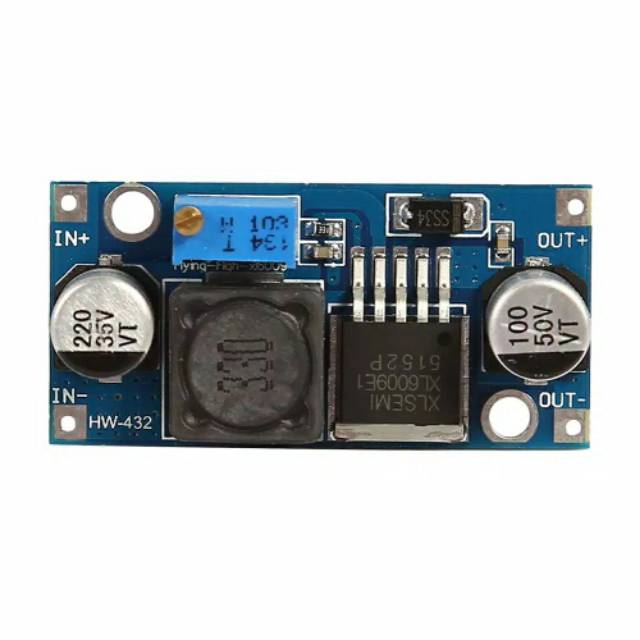

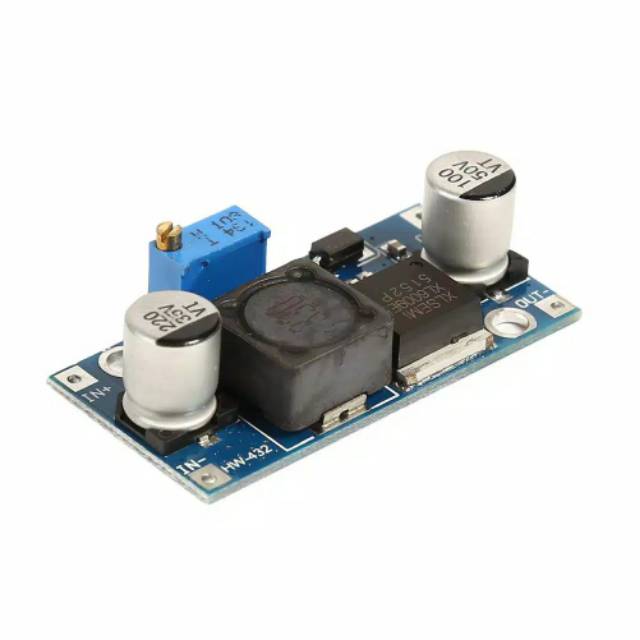

The XL6009 step-up module is a high-performance boost (boost) module with a 4A switching current. The module uses the second generation of high-frequency switch technology XL6009E1 as the core chip, performance far beyond the first generation of technology LM2577. XL6009 Booster Module Cost Lower, performance more excellent, LM2577 module is about to be eliminated.Ultra-wide input voltage 3v~32v, the best operating voltage range is 5~32v;
Ultra-wide output voltage 5v~35v;
Built-in 4A high efficiency MOSFET switch tube, make the efficiency up to 94%; (LM2577 current only 3A)
Ultra-high switching frequency 400KHz, can be used in small capacity filter capacitor can achieve very good results, ripple smaller, smaller size. (LM2577 frequency only 50KHz)
Gambar produk
