XL6009 DC to DC Boost Step up with Display

Detail XL6009 DC to DC Boost Step up with Display

Hi #RekanEasyWare ...
EasyWare Part#: EP000751

XL6009 is a 4A switching current performance boost (BOOST) module. The module uses a second-generation high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, higher performance, LM2577 module is about to be eliminated.

SPESIFIKASI :
- Wide input voltage of 3V ~ 32V (5V boost the following work, but digital does not work), the optimum operating voltage range is 5 ~ 32V;
- Wide boost output voltage 5V ~ 35V;
- Built-4A highly efficient MOSFET switch, so the efficiency of up to 94%; (LM2577 current is 3A)
- Ultra-high switching frequency 400KHz, can use a small-capacity filter capacitor that is able to achieve very good results, the ripple is smaller and smaller. (LM2577 frequency is only 50KHz)
- With power indicator light
- With a voltage meter display and voltmeter can be self-calibration. It uses a more advanced microprocessor voltage voltmeter error ± 0.05V, Range 0 ~ 35V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4.5V)
- Touch of a button to switch measuring input or output voltage, and has a light show which is being measured voltages, and save the settings, even if the power is off again.
- Voltmeter can be turned off when not required to display the touch buttons on the left can be easily achieved.
- With terminals, no iron can also be easy to use, and retention wire connection points.
- With thermal protection and short circuit protection

KELENGKAPAN :
- 1pcs XL6009 DC to DC Step Up with Display


*deskripsi diperoleh dari berbagai sumber di internet

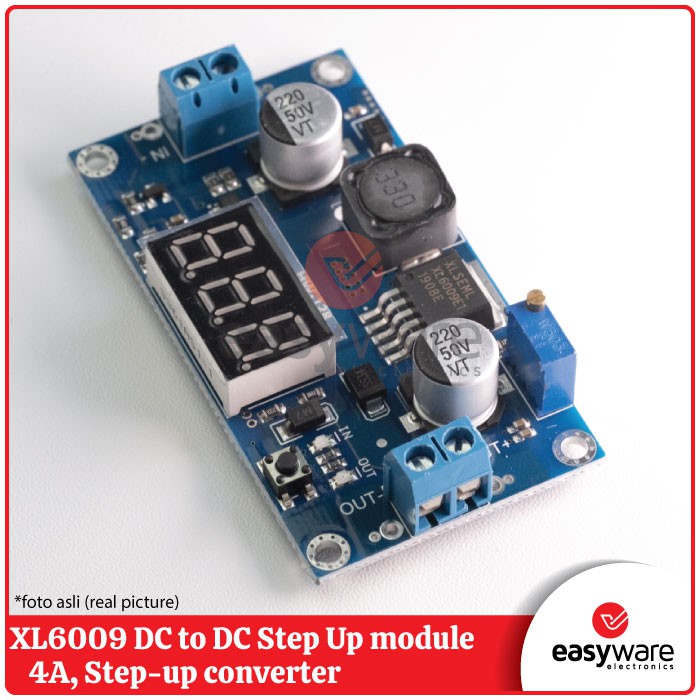

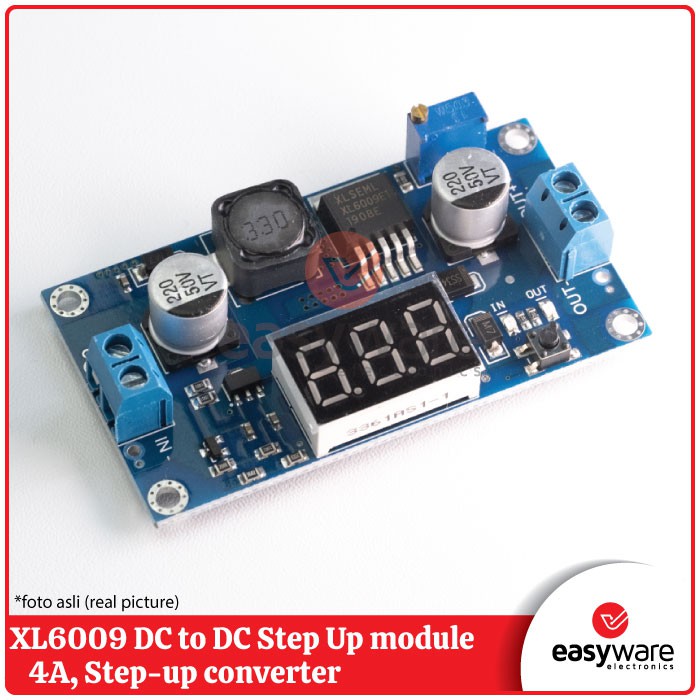

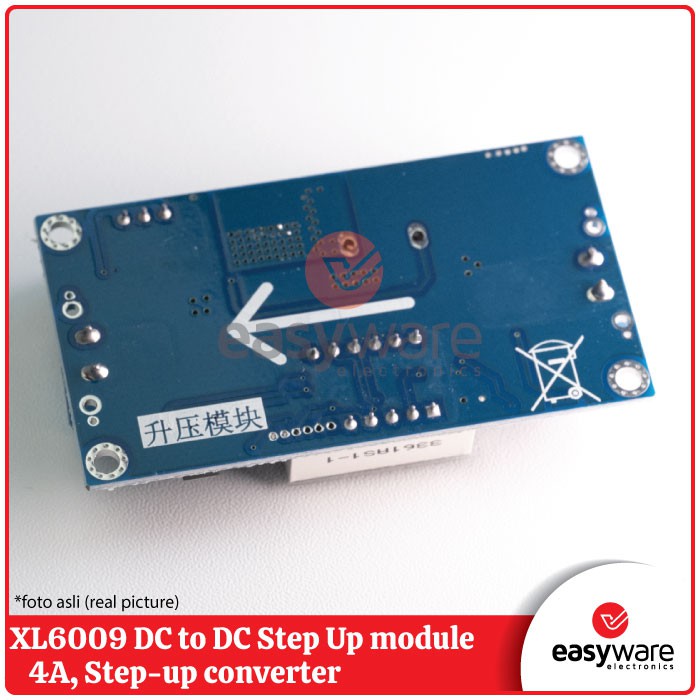

Gambar produk
