XL6009 DC DC ADJUSTABLE STEP UP POWER SUPPLY MODULE

Detail XL6009 DC DC ADJUSTABLE STEP UP POWER SUPPLY MODULE

P/N : PSU-0004

HARAP BACA DESKRIPSI


barang yang kami jual sudah melalui QC pabrik untuk jaminan kualitas dan fungsi. tidak ada garansi untuk barang yang kami jual, kecuali kesalahan kirim barang atau kekurangan barang dapat diselesaikan melalui diskusi. membeli berarti setuju dengan ketentuan ini.
==========

Modul Power supply step up nih gan. Pake XL6009, modul ini bisa naekkin tegangan dari batre ataupun sumber lain menjadi tegangan yag lebih tinggi sesuai kebutuhan :D Deskripsi DSN6009 4A is a high-performance step-up switching current (BOOST) module.

The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. Xst module at a lower cost, superior performance, LM2577 module is about to be eliminated.

Test comparison sample reference:
- Input 3V Output 12V 0.4A 4.8W
- Input 5V Output 12V 0.8A 9.6W
- Input 7.4V Output 12V 1.5A 18W
- Input 12V Output 15V 2A 30W
- Input 12V Output 16V 2A 32W
- Input 12V Output 18V 1.6A 28.8W
- Input 12V Output 19V 1.5A 28.5W
- Input 12V Output 24V 1 A 24W

Vin * Iin * Efficiency = Vout * Iout Vin: Input Voltage Iin: input current Vout: Output Voltage Iout: output current Spesifikasi Module properties: the isolation booster module.

The input voltage: 5-32 V. Output voltage: continuous adjustable (5.5-35 V). Output current: 3 A (MAX). The input current: 4 A (MAX). Input methods: IN+ input is level, IN- input negative. Output way: OUT+ output is level, OUT- output negative. Adjust way: first correct by input power supply (5-32 V, between) again using a multimeter to monitoring output voltage and the potentiometer (turn step-down, in reverse chronological turn boost). Output voltage: 5-35 V continuous adjustable (the construction no-load commissioning).

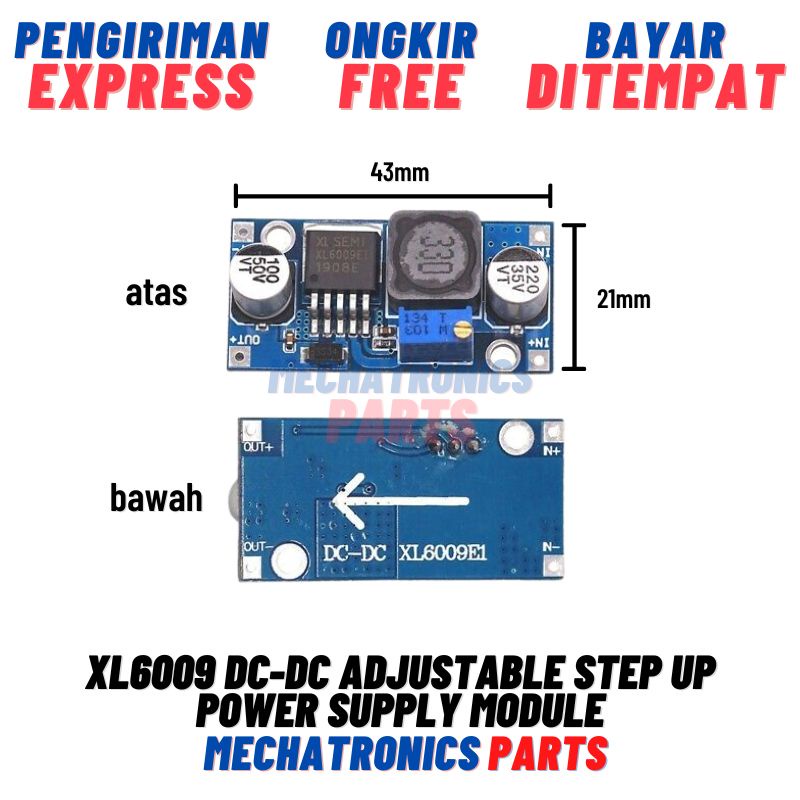

- Dimensi : 43mm x 21mm x 14mm.
- Fitur Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
- Wide Output voltage 5V ~ 35V;

Paket : 1x XL6009 DC-DC ADJUSTABLE STEP UP POWER SUPPLY MODULE

Gambar produk
