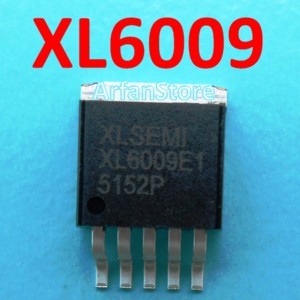

XL6009 Chip XL6009E1 60V 4A DC DC Buck Boost Converter Step Up Down
Deskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > Power Supply > XL6009 Chip XL6009E1 60V 4A DC DC Buck Boost Converter Step Up Down
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail XL6009 Chip XL6009E1 60V 4A DC DC Buck Boost Converter Step Up Down
XL6009 Chip XL6009E1 60V 4A DC DC Buck Boost Converter Step Up DownSpesifikasi:
- Wide 5V to 32V Input Voltage Range
- Positive or Negative Output Voltage Programming with a Single Feedback Pin
- Current Mode Control Provides Excellent Transient Response
- 1.25V reference adjustable version
- Fixed 400KHz Switching Frequency
- Maximum 4A Switching Current
- SW PIN Built in Over Voltage Protection
- Excellent line and load regulation
- EN PIN TTL shutdown capability
- Internal Optimize Power MOSFET
- High efficiency up to 94%
- Built in Frequency Compensation
- Built in Soft-Start Function
- Built in Thermal Shutdown Function
- Built in Current Limit Function

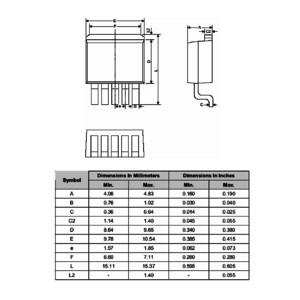

- Available in TO263-5L package
Datasheet:
http://www•datasheet-pdf•com/datasheet/XLSEMI/7...
Paket:
1x Chip XL6009
Gambar produk
