Detail XL4016 Step Down PWM Adjustable Speed Control Motor DC 8A 200w LED

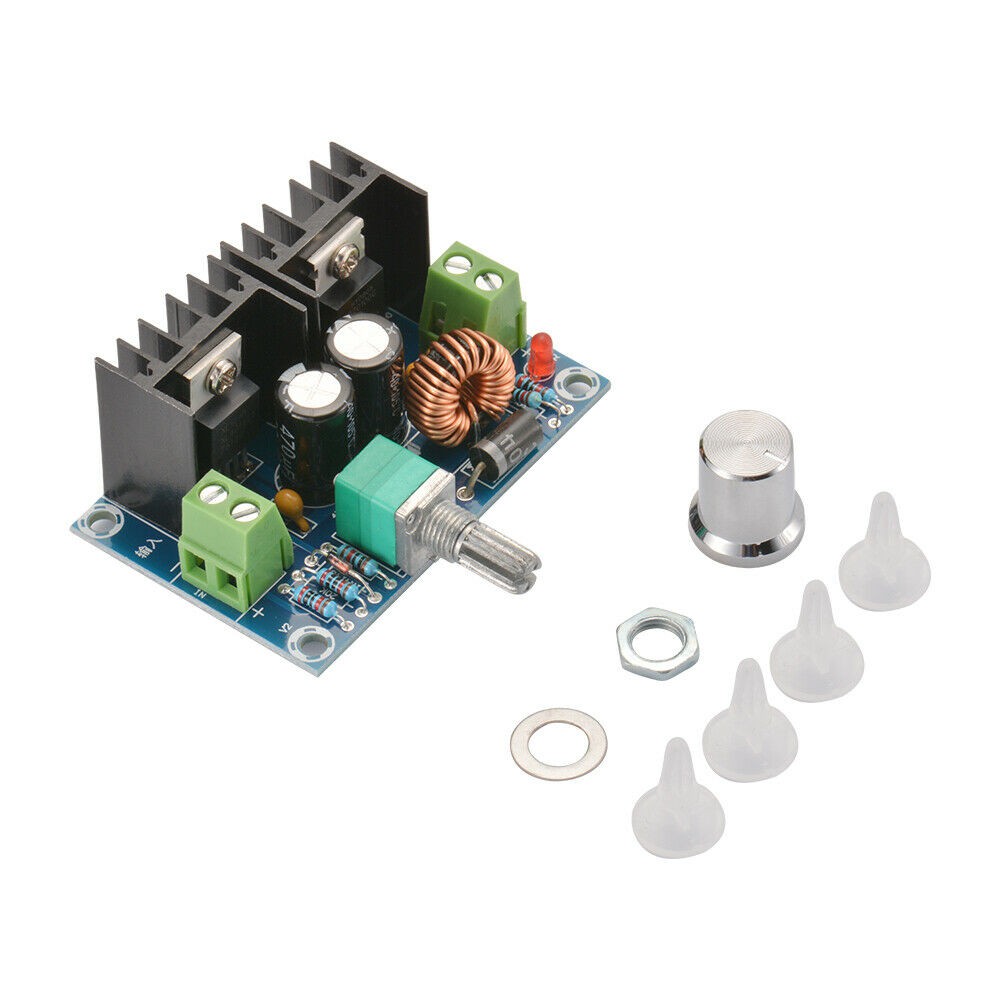

XL4016 Step Down 8A Regulator Power Supply DC

Alat penurun tegangan DC dari input 4~40v menjadi output 1.25~36v

**Kelebihan:
1. Sudah dilengkapi knob exclusive pengatur tegangan
2. Berkekuatan max 8A (continuous 5A)
3. Menggunakan komponen berkualitas terbaik XL4016, MBR20100CT dari berbagai produsen ternama
5. Dilengkapi terminal input dan output , tidak repot solder kabel lagi
6. Dilengkapi short circuit protection

Spesifikasi:
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A(more than 5A for long time use,need Fan if over 5A)
Max power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHZ
Dimensions: 61*41*27mm
