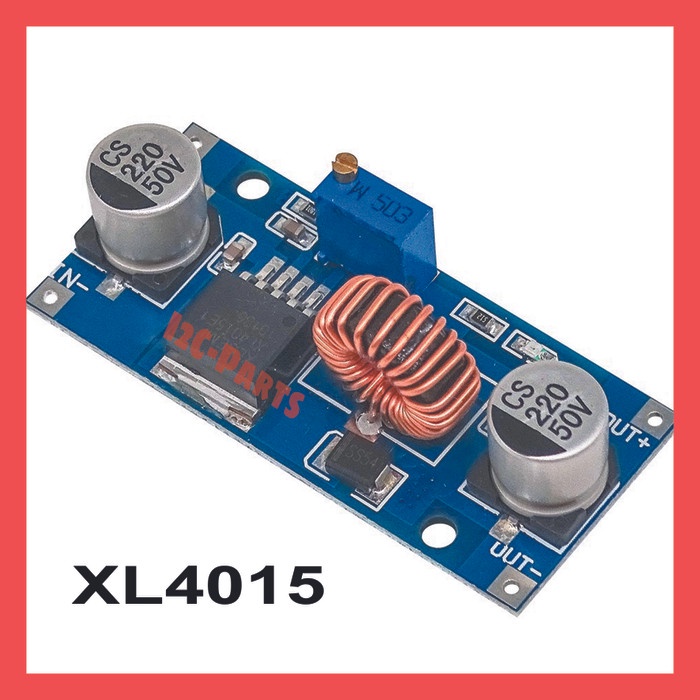

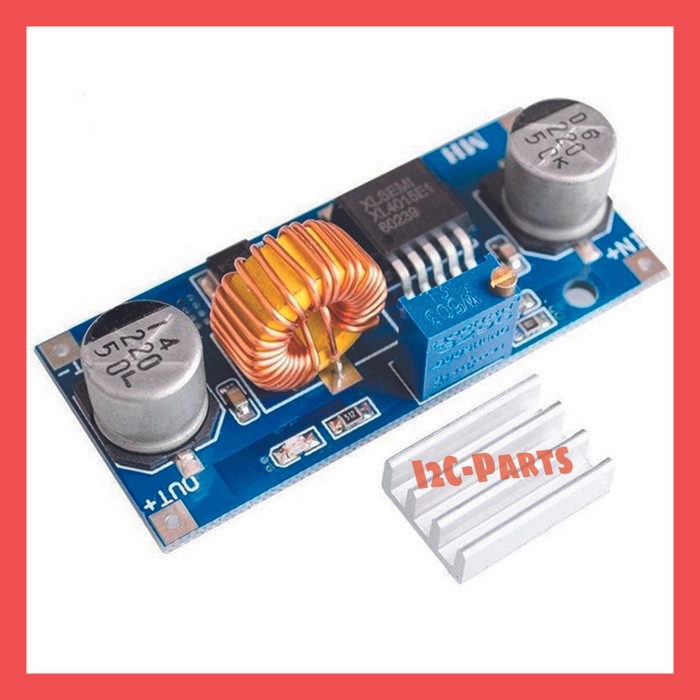

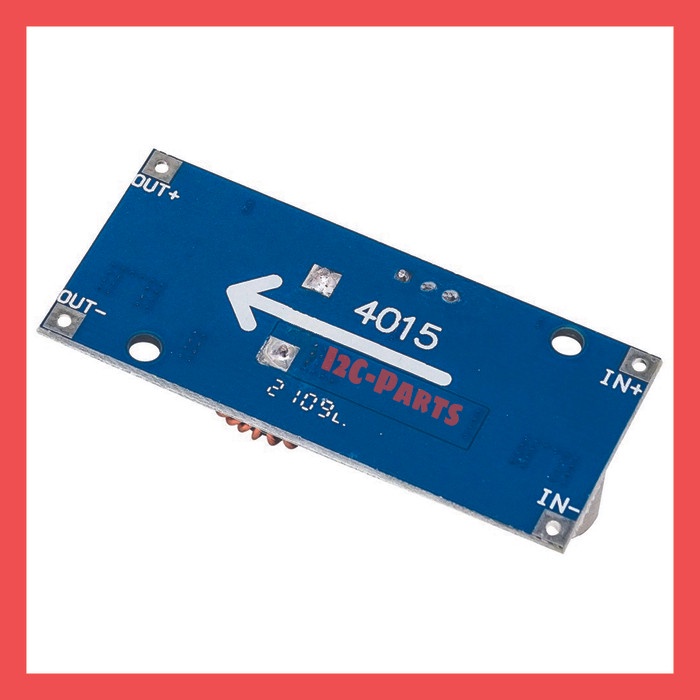

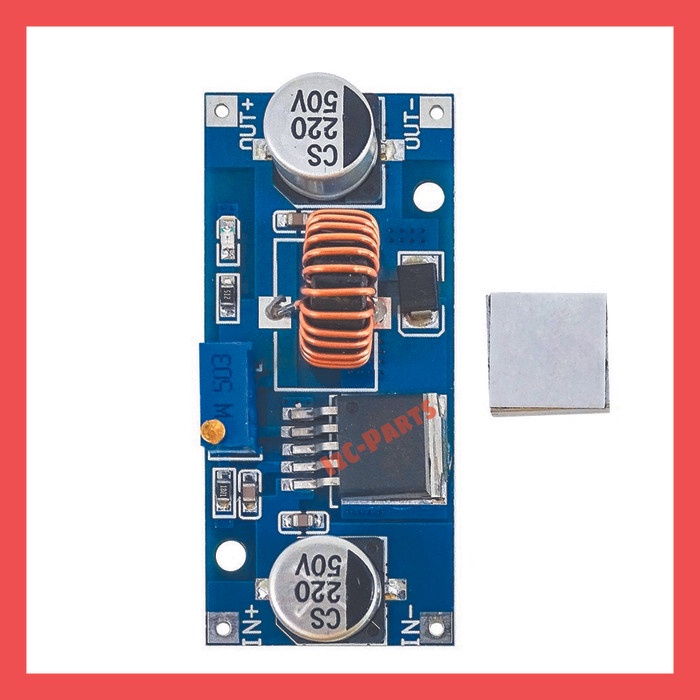

XL4015 DC-DC Step Down 5A Buck Converter Module Voltage + Heatsink

Detail XL4015 DC-DC Step Down 5A Buck Converter Module Voltage + Heatsink

XL4015 DC-DC Step Down 5A Buck Converter Module Voltage + Heatsink

Specifications:
Module nature: non-isolated step-down module (BUCK)
Input voltage: 4-38V (please try not to exceed 38V for input)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-5A, it is recommended to use within 4.5A
Output power: It is recommended to use within 75W.
Working temperature: -40~+85 degrees
Working frequency: 180KHz
Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and pressure difference)
Load regulation rate: S(I)0.8%
Voltage adjustment rate: S(u)0.8%
Power indicator: Yes
Short circuit protection: Yes (limited current 8A)
Over-temperature protection: Yes (automatically shut down the output after over-temperature)
Input reverse connection protection: None, (if necessary, please insert a high current diode in series in the input)
Installation method: 2 3mm screws
Connection method: welding, V-IN is input, V-OUT is output
Module size: length 54mm width 23mm height 18mm
