Detail XL4015 CC CV 5A DC Buck Step Down Converter Charging Lithium Battery

XL4015 CC CV 5A DC Buck Step Down Converter Charging Lithium Battery

Module DC DC Converter Step Down / Buck Converter sebagai penurun tegangan dengan fitur CC (Constant Current) dan CV (Constant Voltage)

Spesifikasi:
CHIPSET: REAL XL4015 ....!!! (bukan XL4005)
Input voltage: 5V-32V
Output voltage: 0.8V-30V
Output current: adjustable maximum 5A
Operating Temperature: -40 to +85
Voltage Regulation: 2.5%
Load Regulation: 0.5%
Output ripple: 50mV (max) 20M bandwidth
Switching frequency: 300KHz
Conversion efficiency: 95% (the highest)
Rectification: non-synchronous rectification
Module Properties: non-isolated constant current and voltage module.
Size: 50 * 26 * 11 (L * W * H) (mm)

Aplikasi:
- Charging Lithium Charger
- Driver LED
- Solar Controller
- Cas Hape
- Power Supply perangkan elektronik
- dll

Paket:
1 buah XL4015 CC CV Step Down

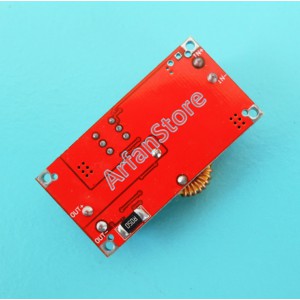

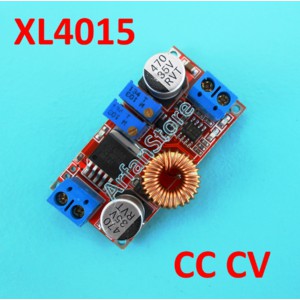

Gambar produk
