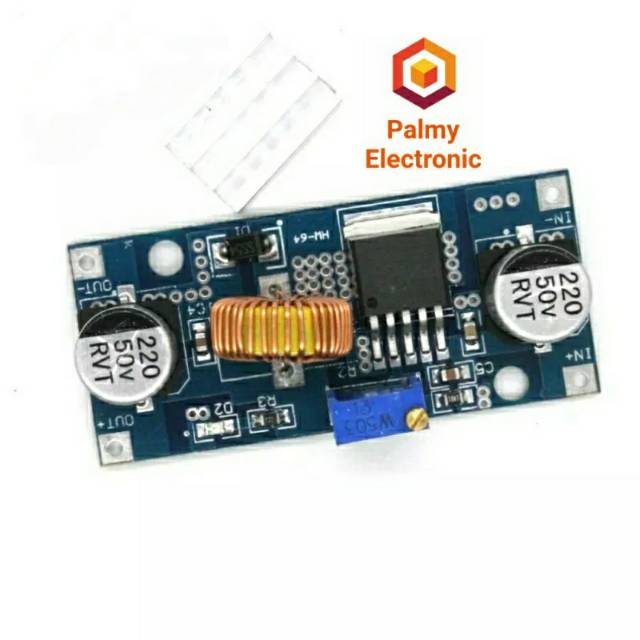

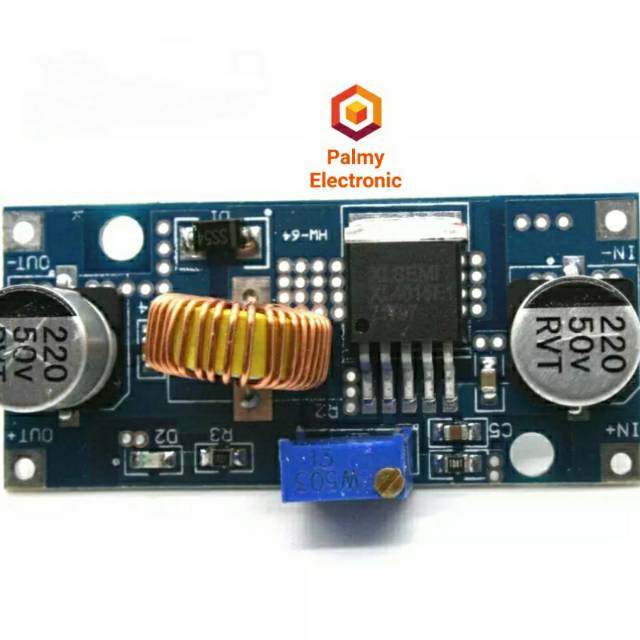

Detail XL4015 5A DC to DC Adjustable Step Down Buck Converter
XL4015 5A DC-DC Step Down Adjustable Power Supply Module Buck Converter
Specification: Module highlights: 5A high power, high efficiency and low ripple with power indicator Module Properties: non-isolated buck module (BUCK) Input voltage: 8-36V (input please try not to exceed 38V) Output voltage: 1.25-36V continuously adjustable Output Current: 0-5A Output Power: 75W Operating temperature: -40 to +85 degrees Operating frequency: 180KHz Conversion efficiency: up to 96% Load regulation: S (I) 0.8% (input 24V, output 12V, load varies from 1 ~ 4.5A measured) Voltage Regulation: S (u) 0.8% (output 12V, when 4A, when 18 ~ 32V voltage change from the measured) Power Indicator: Yes Short circuit protection: Yes (limit current 8A) Overtemperature protection: (automatically shut off the output after overtemperature) Input reverse polarity protection: No, (if necessary, please enter the string into the high current diode) Installation: two 3mm screws Connection: Welding, V-IN is the input, V-OUT is the output Module dimensions: 54 x 23 x 15mm (L x W x H) #xl4015 #buckconverter #stepdown
