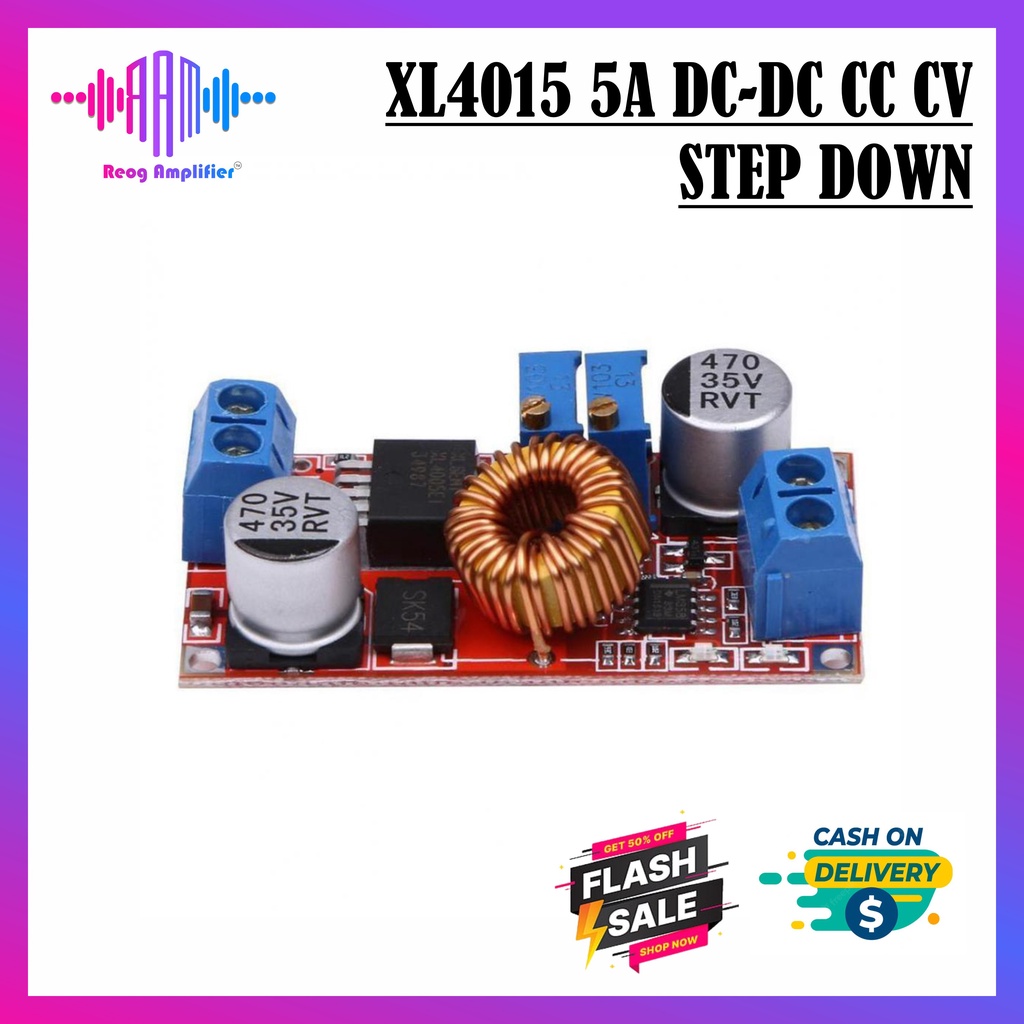

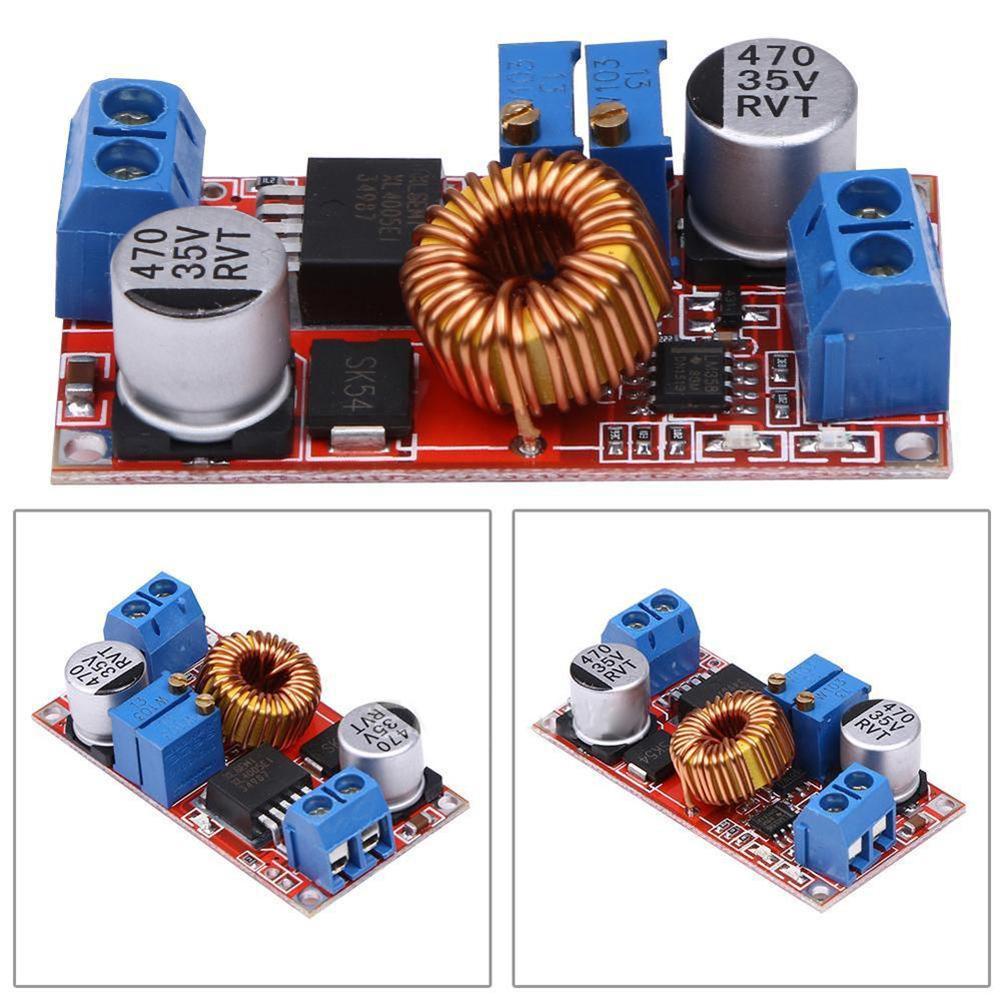

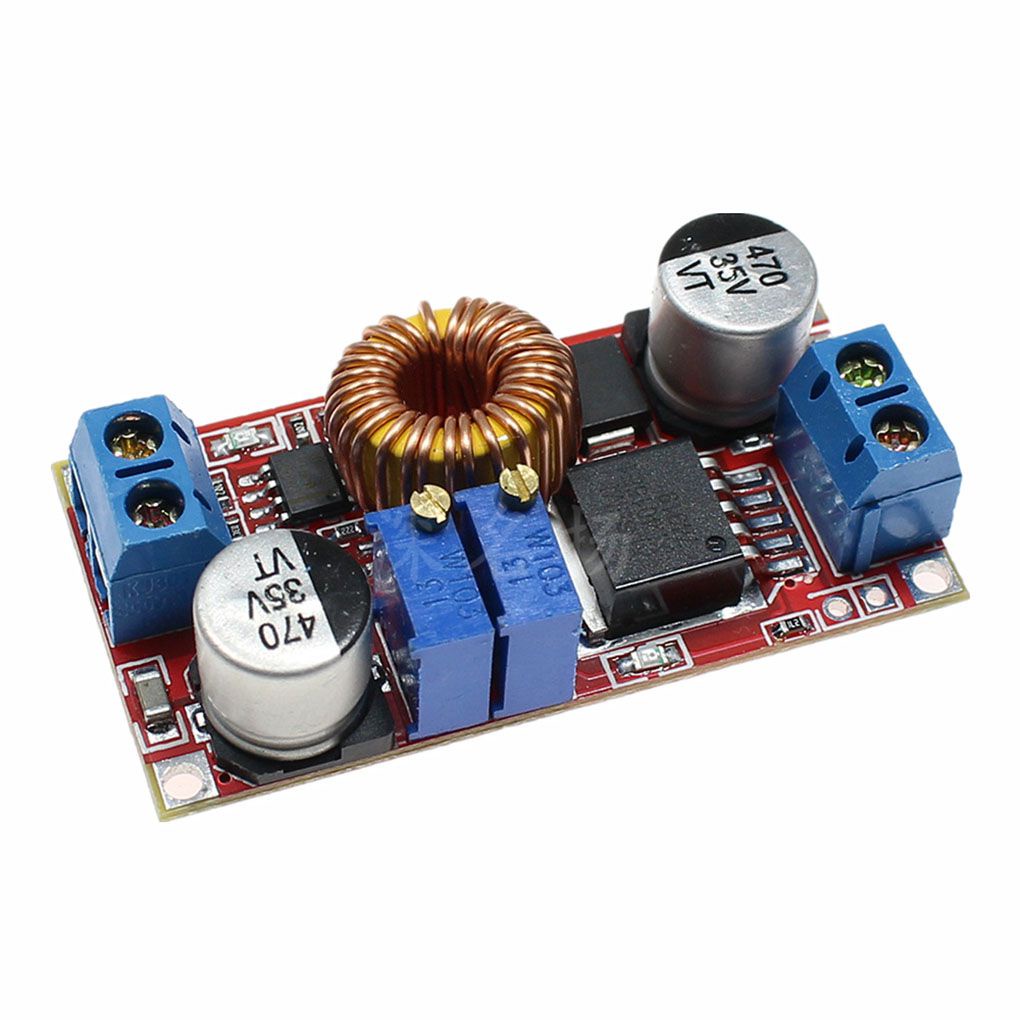

XL4015 5A DC-DC CC CV STEP DOWN LITHIUM CHARGER POWER SUPPLY

Detail XL4015 5A DC-DC CC CV STEP DOWN LITHIUM CHARGER POWER SUPPLY

Specification:
Module Properties:non-isolated constant current & voltage module
Rectification: Non-Synchronous Rectification
Input voltage: DC 5V-32V
Output voltage: DC 0.8V-30V
Output current: Adjustable Maximum 5A
Conversion efficiency: 95% (MAX)
Switching frequency: 300KHz
Output ripple: 50mV (maximum) 20M-bandwidth
Load regulation: � 0.5%
Voltage regulation: � 2.5%
Operating Temperature: -40� C to +85 � C
Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)
Size: approx. 50*25*10mm/1.96*0.98*0.39''
Gross weight: approx. 18g

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.

Included:

1 x Constant Current & Voltage Adjustable Module
