Detail XL4015 5A Adjustable Step Down DC CC CV Battery Charger Lipo Lithium
XL4015 CC CV dengan limiter Current dan Voltage AdjustableCC : Constant Current -> melakukan pembatasan/proteksi arus berlebih dengan Auto Cut-Off
CV : Constant Voltage -> melakukan pengaturan tegangan secara constant sesuai settingan selama tidak melebihi set CC
1.Input voltage range:438VDC(Note:input voltage not exceeding 38V)
2.Output voltage range:1.25 - 36VDC adjustable
3.Output current: 0 - 5A
4.Output power: 75W
5.Working temperature: -40~+85 degrees
6.Operating frequency: 180KHz
7.Efficiency:96%(max)
8.Short circuit protection: yes(limit current 8A).
9.Over temperature protection
10.Input reverse polarity protection: None (if required, high current diode in series with the input).

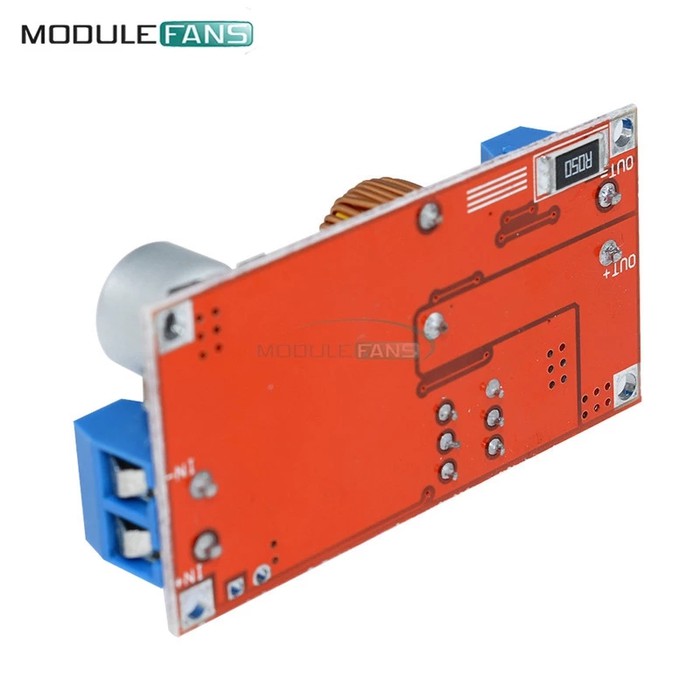

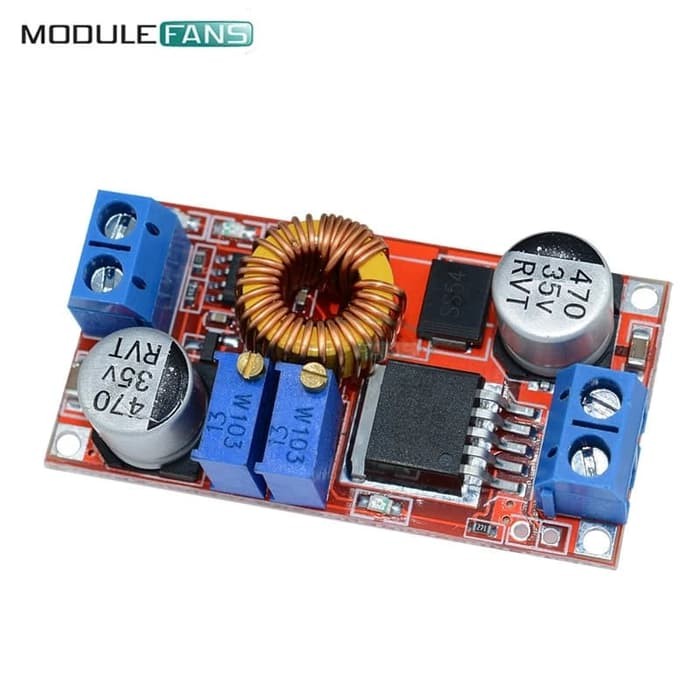

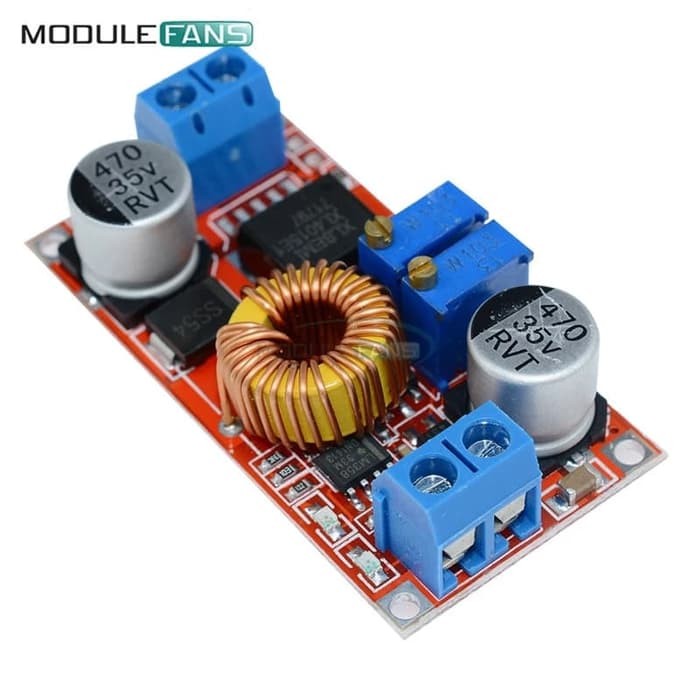

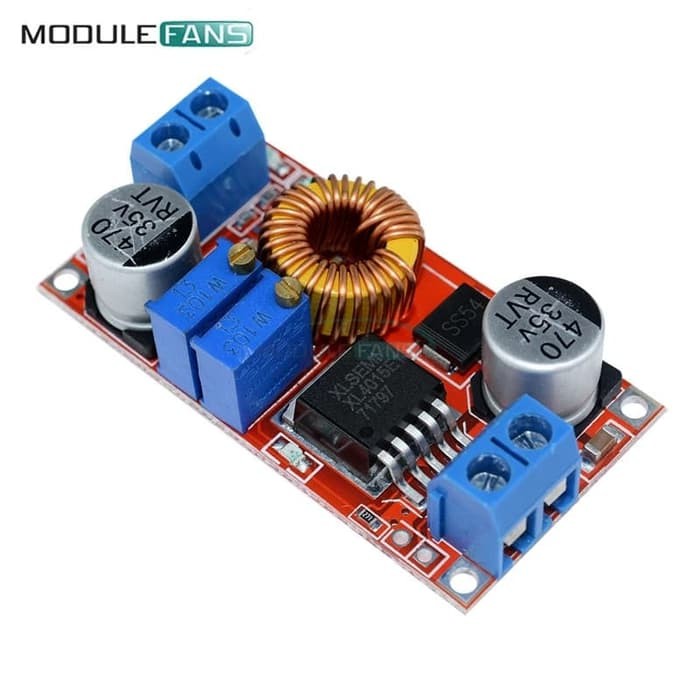

Gambar produk
