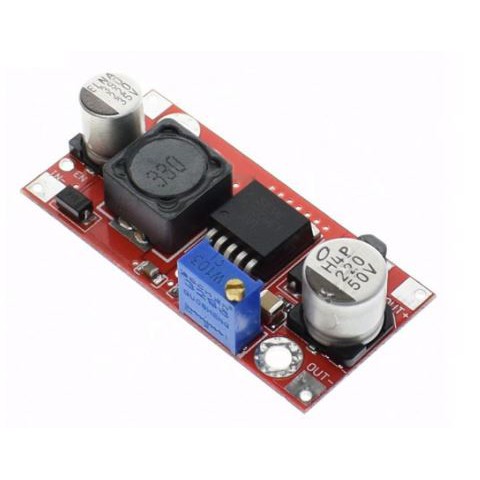

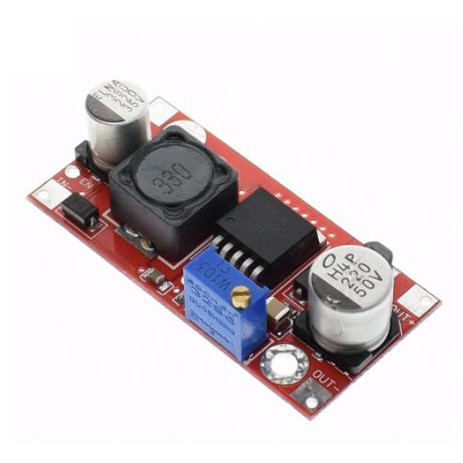

XL 6009 DC-DC Adjustable Power Boost Module LM 2577 High Perform Low ripple band enable (G3098)

Detail XL 6009 DC-DC Adjustable Power Boost Module LM 2577 High Perform Low ripple band enable (G3098)

Description:
PCB use kb of A grade sheet material, to prevent cardboard, garbage plate.
Up to 400Khz operating frequency, and LC filter circuit, output ripple is very low.
Input and output three MLCC Multilayer ceramic capacitors, interference enhance stability.
Increased enable the port, you can control whether the boost circuit. Import TDK inductors, the heat and noise to a minimum.
The new XLSEMI chip, eliminate fake, disassemble chip. Imported SMD electrolytic capacitors, not accompanied by homemade capacitance.
Specification:
Materials: Metal, Plastic, Electric Parts.
Size: 49*23.4*11.4mm.
Color: show as pictures.
Input voltage: 5-32V.
Output voltage: (1) continuously adjustable (5-50V).
Output Current: 2.5A (MAX).
Input Current: 4A (MAX).
Output power: natural cooling 15W, plus heat sink 25W (MAX) real power.
Maximum output power = input voltage conversion efficiency * 4A *conversion efficiency.
Note:
There might be a bit color distortions due to different computer resolutions.
There might be a slight error due to different hand measurement.
Package included:
1 * XL6009 DC-DC Module.
