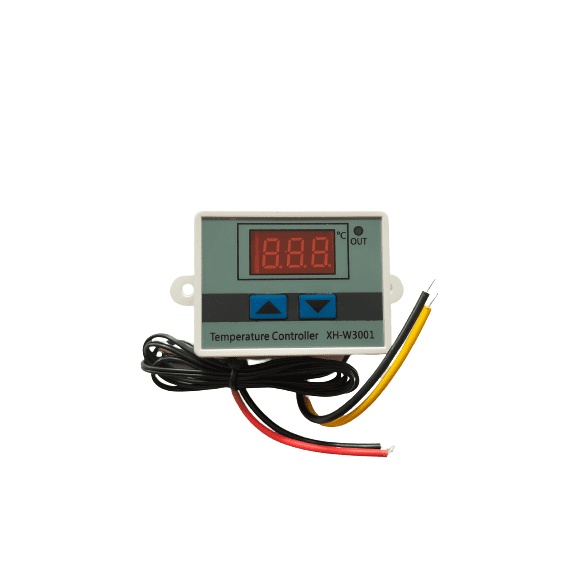

XH-W3001 XH-3001 AC 220V 1500W Digital Temperature Controller Thermostat Pengatur Suhu High Quality

Product Specification :

Item type: Digital temperature controller
Model: XH-W3001
Output Type: Direct Output
Output capacity:10A max
Power Supply: AC 220V
Load power:120/240/1500W
Temperature Measurement Range: -50° C~110° C
Temperature Control Range: -50° C~110° C
Temperature Control Precision: 0.1° C
Input measurement: NTC10K waterproof probe L = 1 meter waterproof
ldquoUp Buttonrdquo :Press once to display the start temperature,Long press set start temperature
ldquoDown Buttonrdquo:Press once to display the stop temperature,Long press set stop temperature

Installation And Setting
1. Press up button show the starting temperature.
2. Long press UP button the temperature display Flashing , Press the UP or Down button.
3. Set the start temperature value.
4. Press Down button show the Stop temperature.
5. Long press Down button the temperature display Flashing , press the UP or Down.
6. Button Set the stop temperature value
