Detail XH-W1209 W1209 DC 12V Thermostat Temperature Control switch

Hi #RekanEasyWare ...
EasyWare Part#: EP001742

SPESIFIKASI :
- Temperature range :-50-110 °
- Dimensions: 48.5 * 40mm
- Temperature control mode: ON / OFF
- Resolution:When temperature is0.1°, the resolution is -9.9~99.9, other
- Temperature segment is 1°
- Control accuracy: 0.1 °
- Hysteresis accuracy: 0.1°
- Refresh rate: 0.5S
- High temperature protection: 0-110°
- Supply voltage: DC 12V
- Static current: ≤ 35MA, attract current ≤ 65MA
- Output voltage: DC 12V
- Output power: 20A relay
- Measurement input: NTC (10K 0.5%) Waterproof Sensor
- Environmental requirements: -10 ~ 60 ° ,Humidity 20% -85%

PETUNJUK PEMAKAIAN :

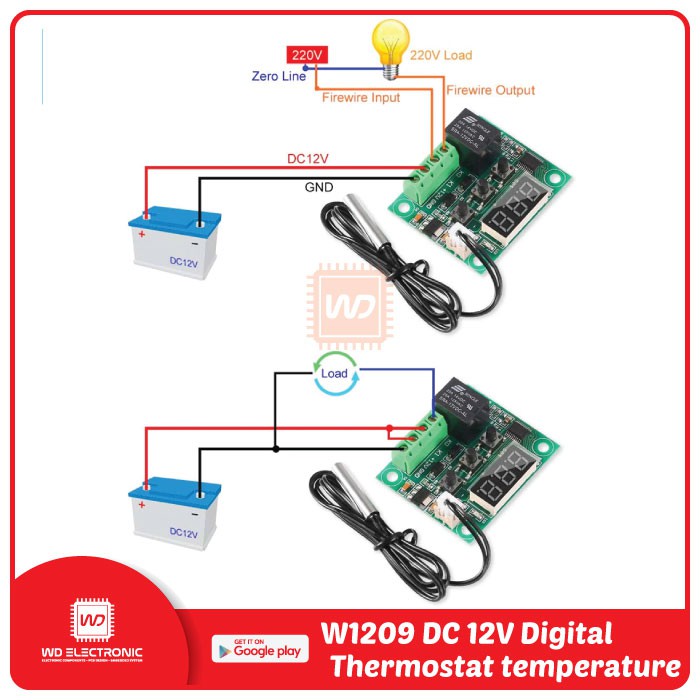

- Connect the power supply and the load, you can supply to the controller,
- Is displayed as a measured temperature,
- Press theSETbutton, the display flashes the temperature,
- Press - to set the desired temperature,
- After setting press SET to confirm return,
- The controller automatically performs the relay by setting off!

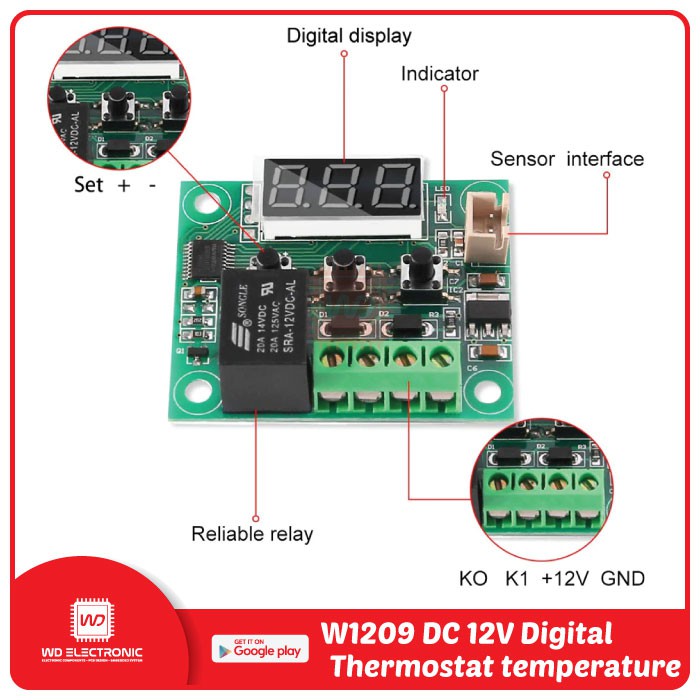

- Lights, LED status descriptions:
- Indicator: Off The relay is switched off, Always indicate the relay is closed.
- LED: Shows LL is the sensor open, showing ? HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.

KELENGKAPAN :

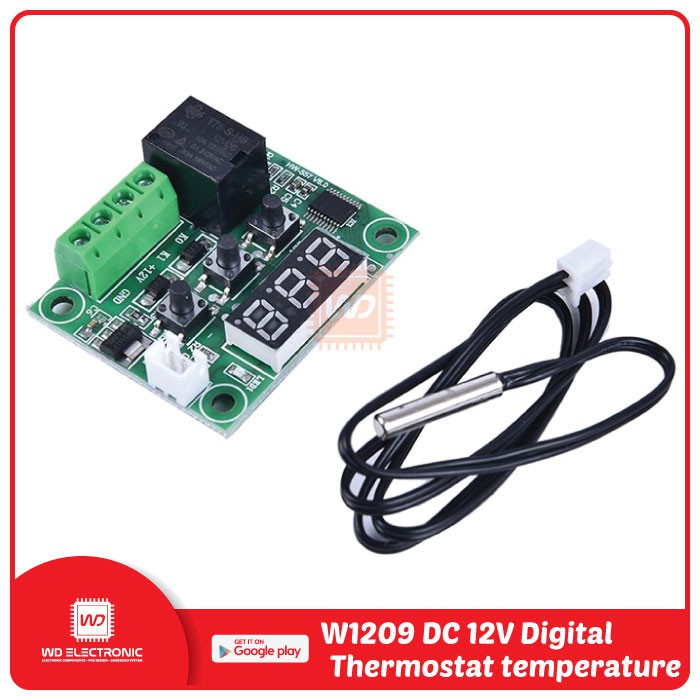

- 1pcs -50-110°C Digital thermostat Temperature Control Switch 12V + sensor
