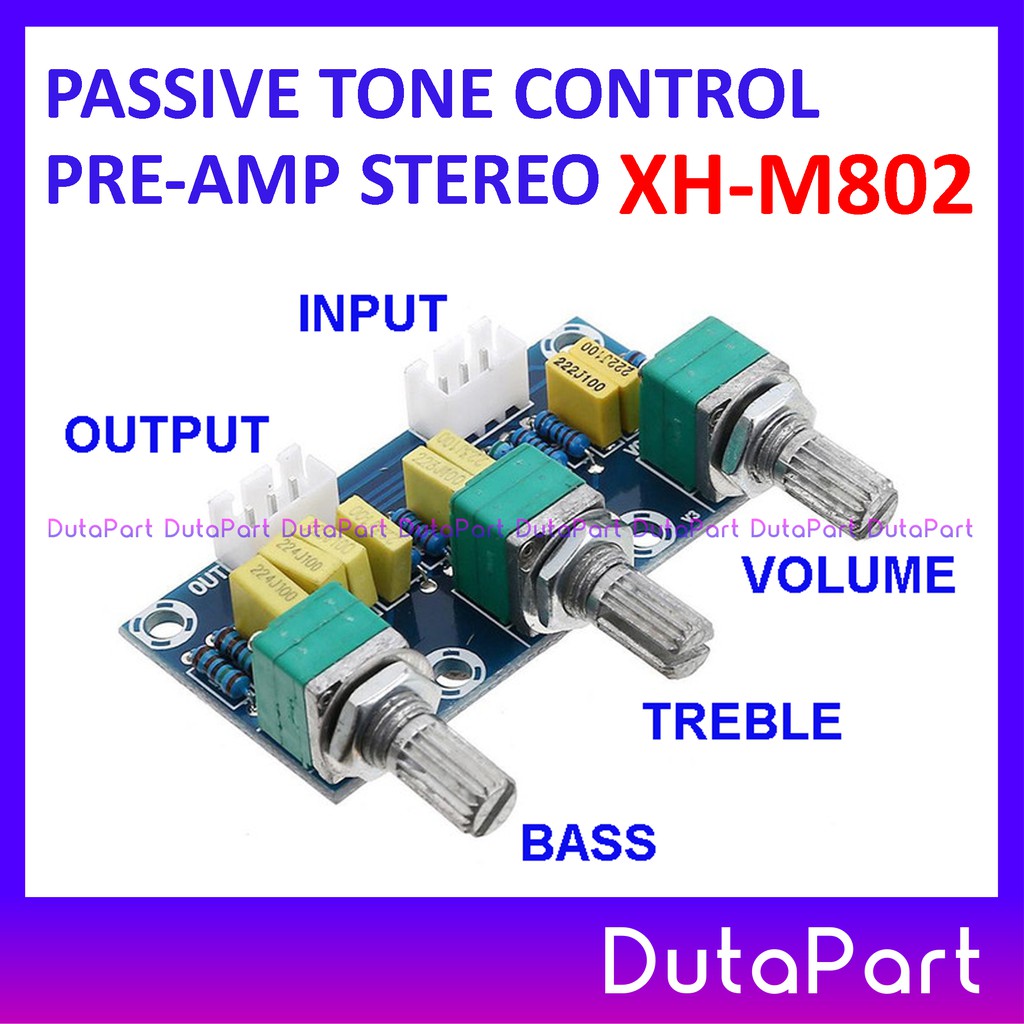

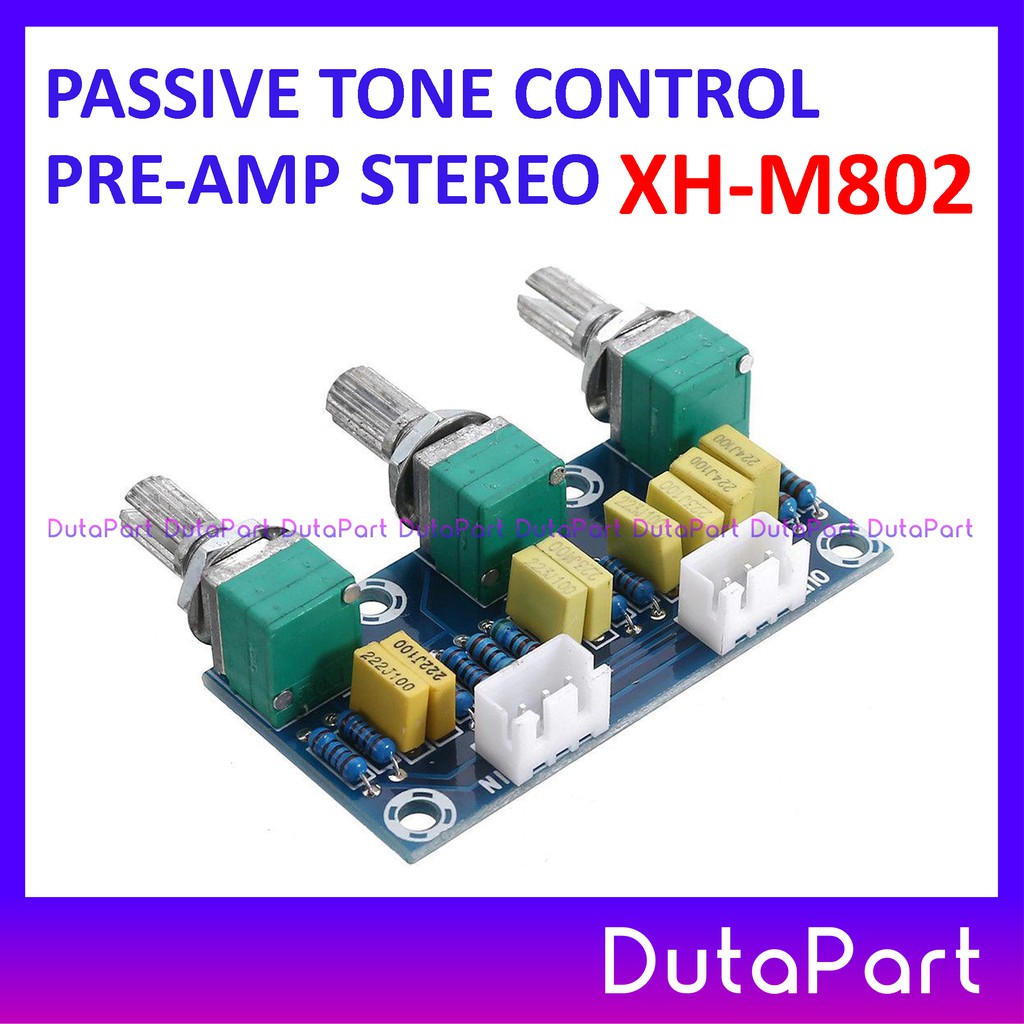

XH-M802 Passive Tone Control HiFi PreAmp Module Volume Bass Treble
Deskripsi singkat
Elektronik > Perangkat Audio & Speaker > Amplifier & Mixer > XH-M802 Passive Tone Control HiFi PreAmp Module Volume Bass Treble
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail XH-M802 Passive Tone Control HiFi PreAmp Module Volume Bass Treble
XH-M802 Passive Tone Control HiFi PreAmp Module Volume Bass Treble*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***
Product Description
This tuning version of passive tuning board, the main function of the input audio signal for high and low frequency adjustment, and then sent to the amplifier board to enlarge
The principle of the product is that the audio signal is directly filtered through the RC filter to get the desired high and low sound through the RC capacitor. The tone board does not need power supply, but the volume after processing will be much smaller.
Parameters
Product Name: Passive tone board
Adjustable items: total volume treble bass
Number of channels: 2-channel
Knob spacing: 22.5mm
Socket type: XH2.54 ~ 3P

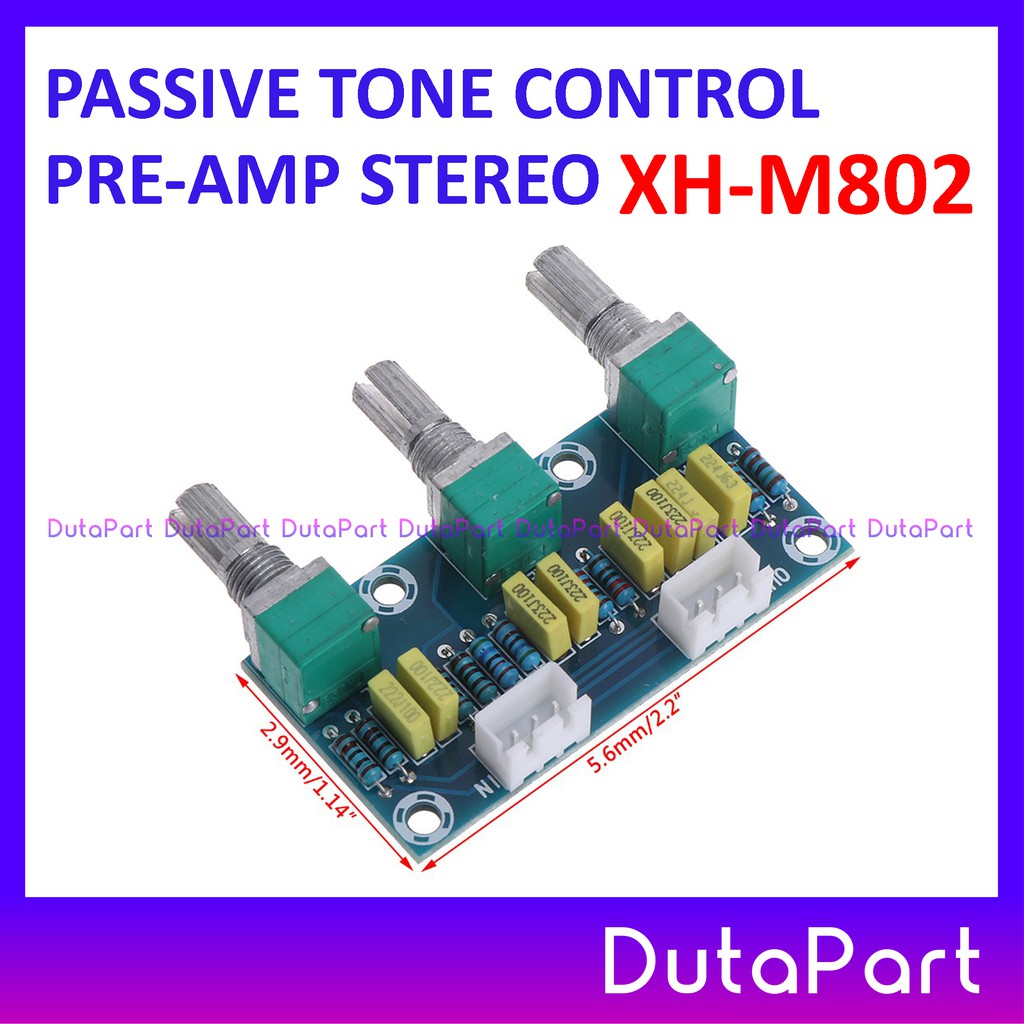

Appearance size: 56.28mm
Untuk info seputar hal teknis dan lainnya, Hubungi kami
Gambar produk
