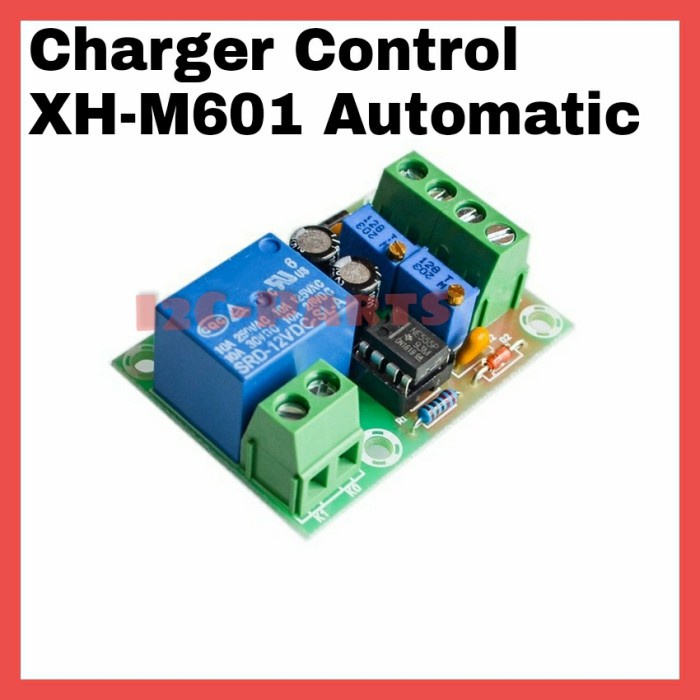

Detail XH-M601 Battery Charger Control Automatic Module 12V Auto Cut Off

Battery Charger Controller Module yang berfungsi untuk mengontrol charging sistem battery 12 Volt, memproteksi dari overcharging.

Specifications :

Model : XH-M601
Power Supply : 13.8V-14.8V
Relay closing voltage : 12.4V
Relay off voltage : 14.8V
Voltage error : 0.1V

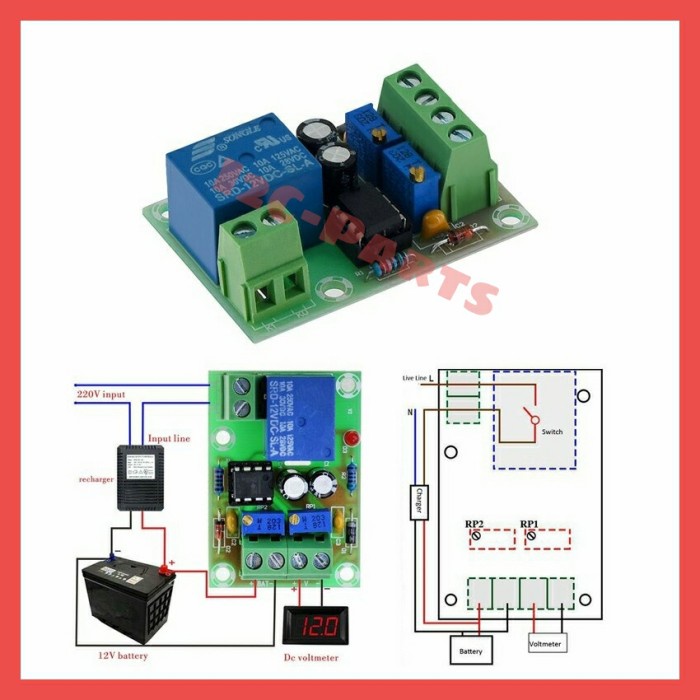

Voltage detection : DC voltmeter
Charging type : 12V battery

Potentiometer Adjustment:
1.RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
2.RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
