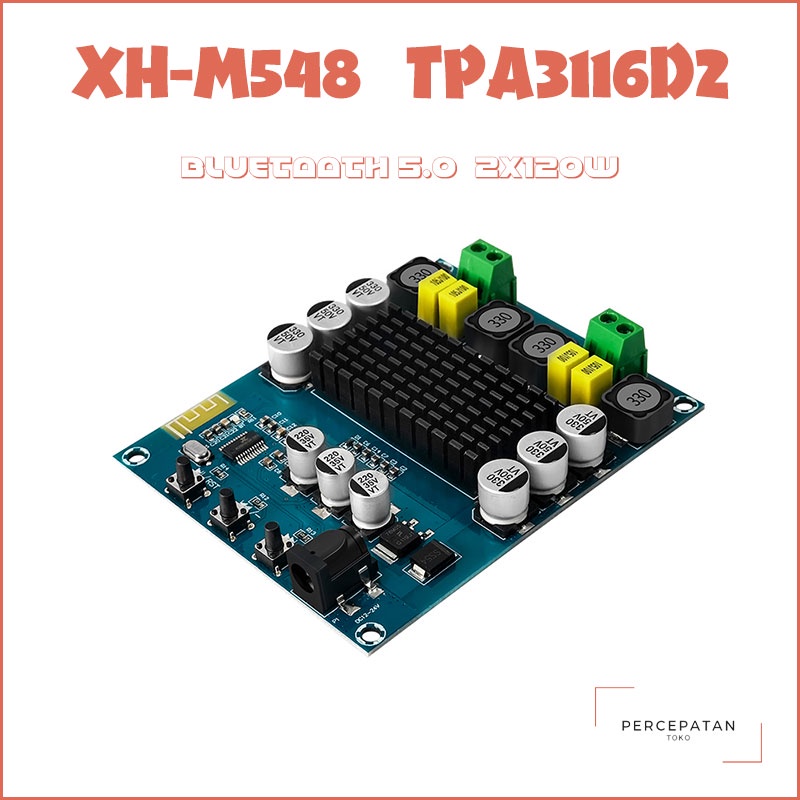

【XH-M548】Bluetooth 5.0 Digital Power Amplifier Board【TPA3116D2】Audio Amplifier Modul Dual Channel 2x120W Daya Tinggi

Detail 【XH-M548】Bluetooth 5.0 Digital Power Amplifier Board【TPA3116D2】Audio Amplifier Modul Dual Channel 2x120W Daya Tinggi

❥(^ _-) Welcome to my shop
All products are in stock
Please place an order if necessary
Pack it for you today!

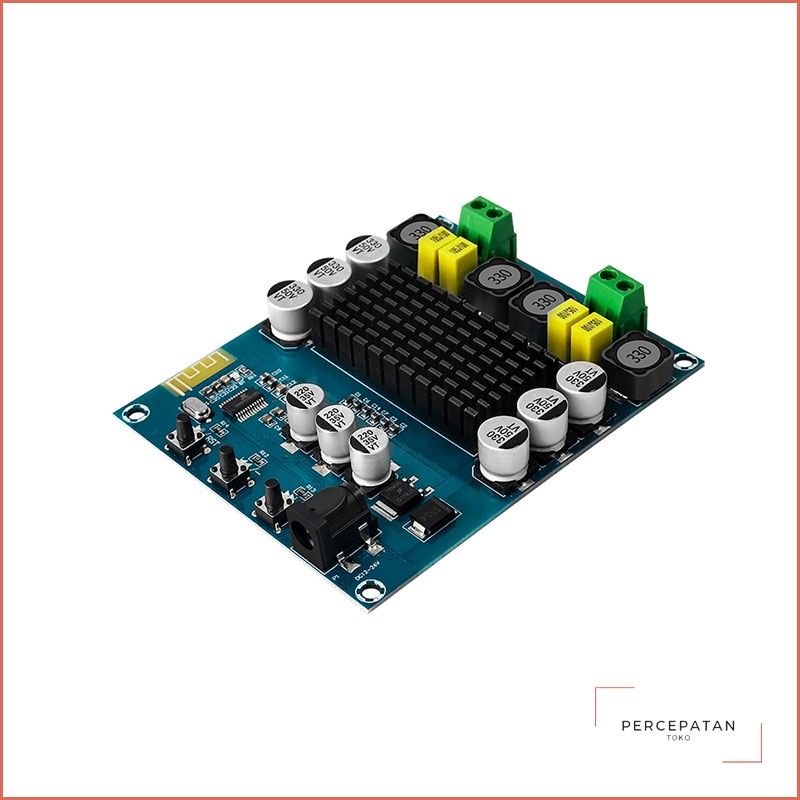

Specifications:
Parameter
Value
Chip
TPA3116D2
Supply voltage
DC12-24V
Output power
120W*2
Supply current
More than 3A
Power ratio
More than 90%
Bluetooth module
BTM835/CRS8635 (5.0 version)
Transmission distance
Max 10M( without interfere)
Vocal tract number
2 channel (High bass control)
switching frequency
1.2MHz

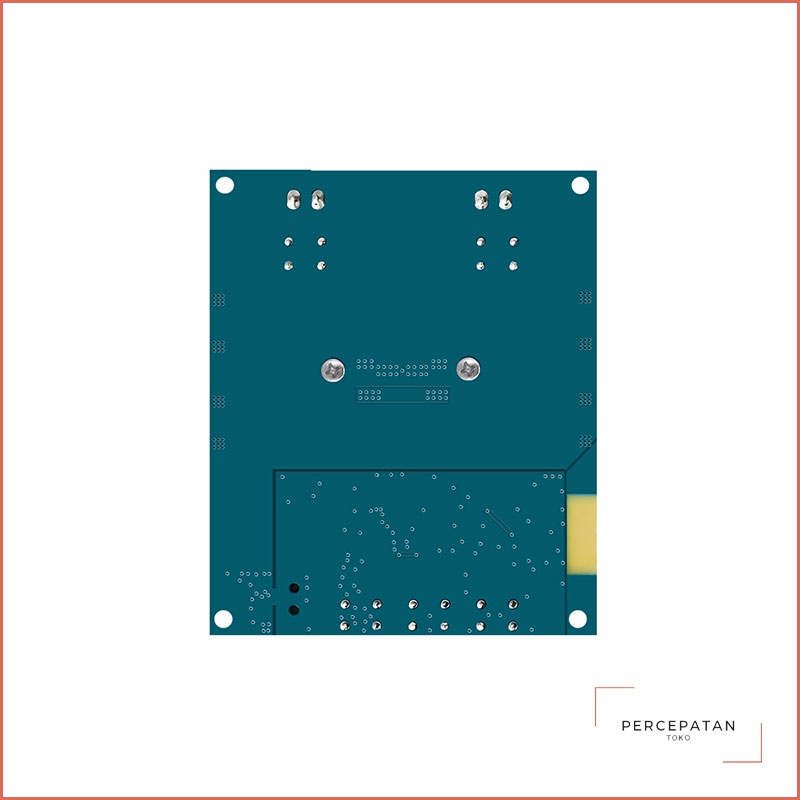

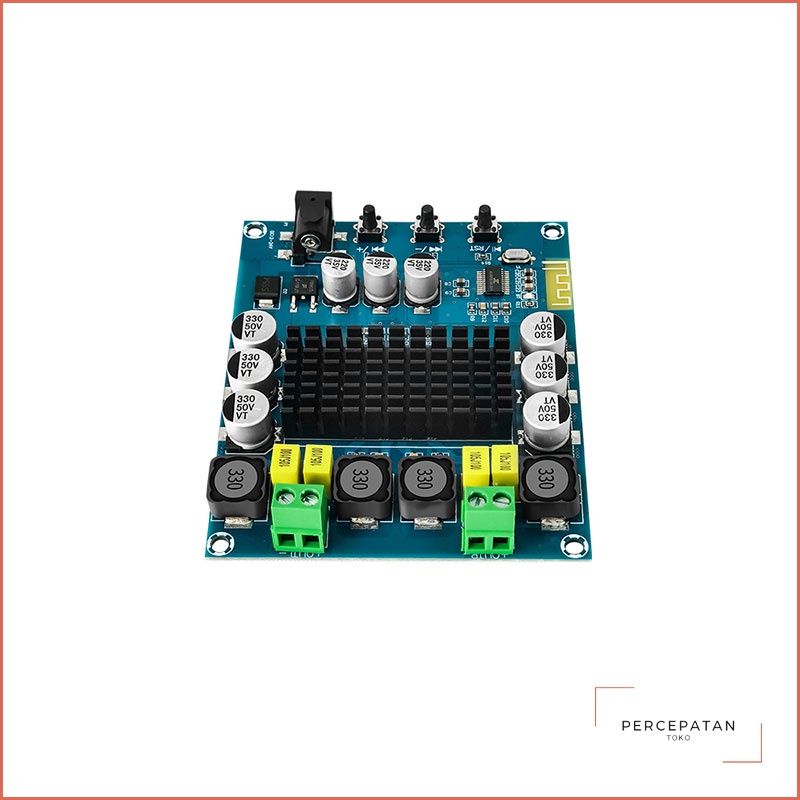

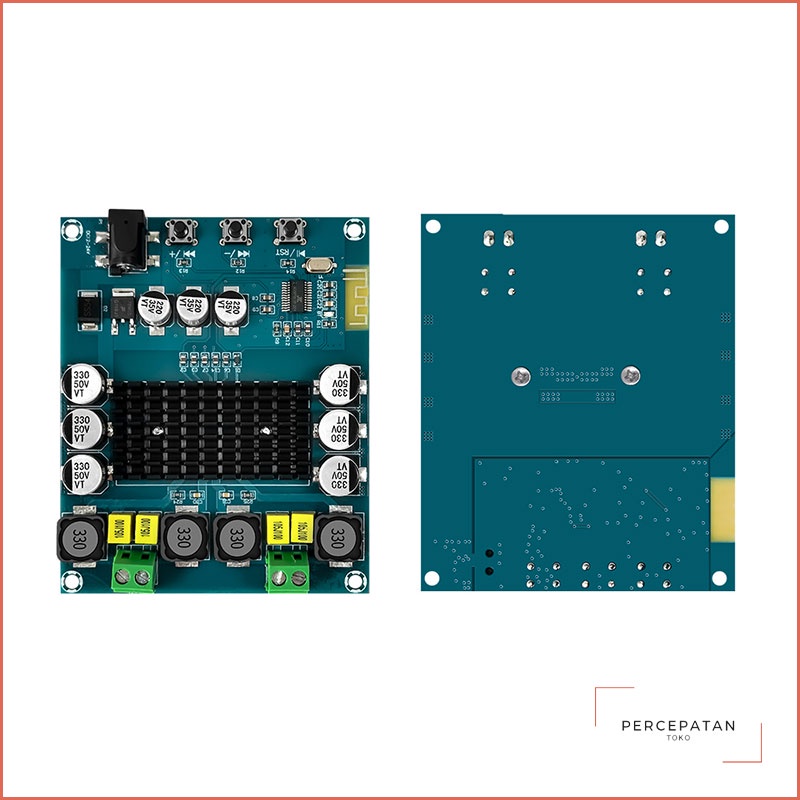

Appearance size

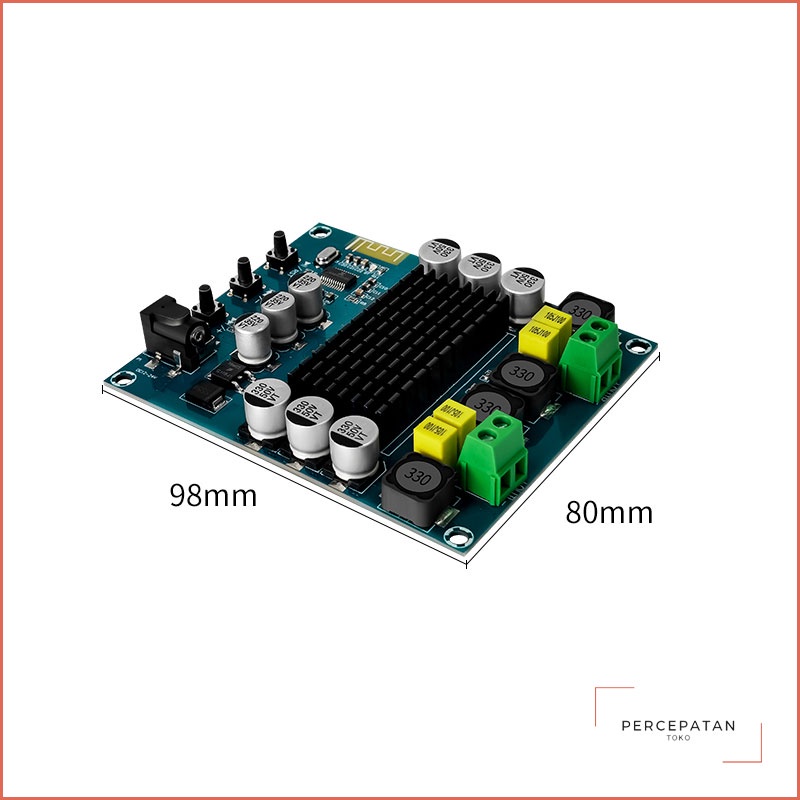

98*80*18mm

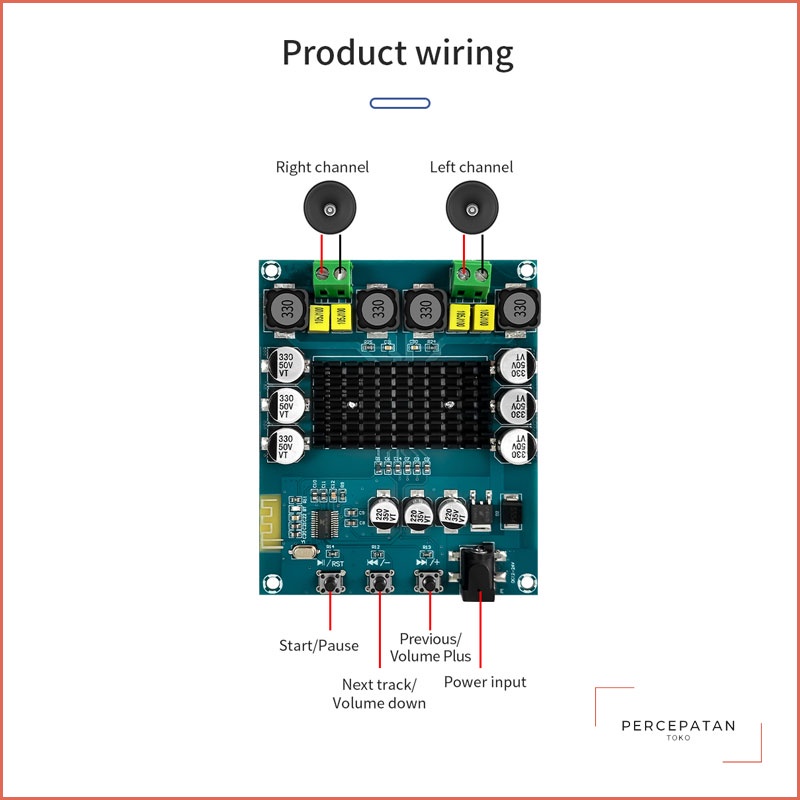

Bluetooth connection method:
Take mobile phone as an example
1>. Turn on Bluetooth.
2>. Open “Let all the devices around you detect your cell phone”.
3>. Click on the search device “Speaker”, to connect.
4>. Bluetooth state indicator does not blink alternately, open the player to listen to music.
Bluetooth module parameters:
Parameter
Value
Bluetooth specification
Bluetooth V5.0
modulation mode
GFSK,π/4 DQPSK,8DPSK
Supply voltage
3.3-4.2V
Bluetooth protocol
HFP V1.6,HSPV1.2,A2DPV1.2,AVRCPV1.4,DIV1.3

Working current
Less than or equal to 30 mA
Standby current
Less than 50 μA
temperature range
-40 celsius to +80 celsius
Wireless transmission range
10m
Transmission power
Support CLASS1/CLASS2/CLASS3 Max adjustable 8d8m
sensitivity
-80dBm less than 0.1%BER
frequency range
2.4GHz-2.480GHz
External interface
PIO,SPI,Audio in/out and PCM,USB
Audio performance support
AAC,MP3,SBS, Stereo
Audio to noise ratio
More than 75dB
Distortion degree
less than 0.1%
Module size
21.9*14.1*1.8mm

Application:
1>. Connected mobile phone and computer
2>. Home Theater
3>. DIY audio

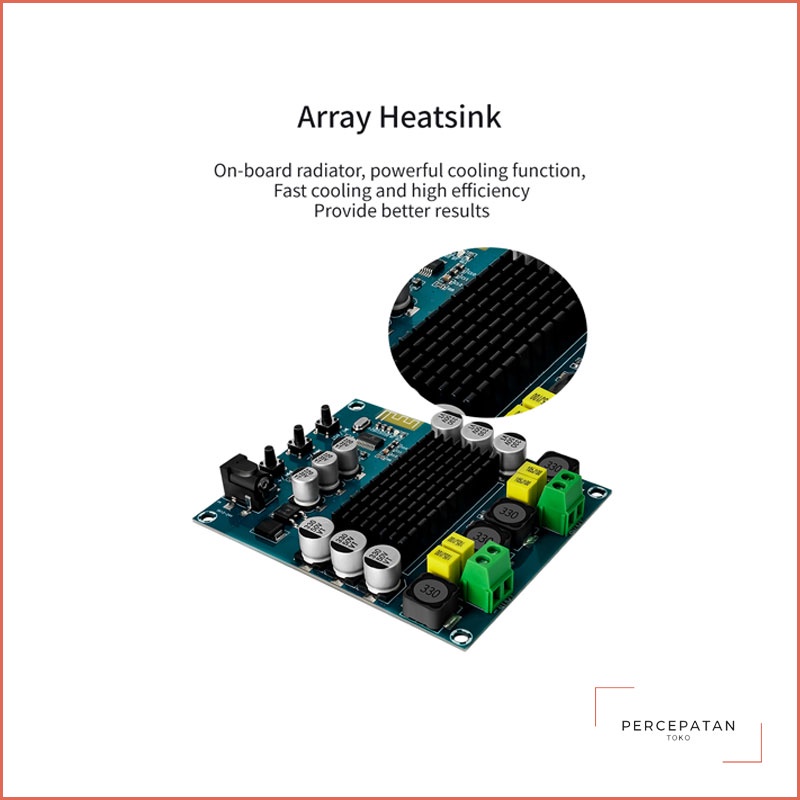

Using Attention:
Please do not connect the power and the speaker freely. Please refer to the data provided by the product description for reasonable collocation. Otherwise, the function board will be damaged.

Warm tips:
Power amplifiers can be noisy in some cases. Here are some common reasons
1>. Hardware problem:
The power supply is unstable, or the power supply module generates interference.
The influence of switching power supply as power supply.
Using transformer power supply, do not do shielding isolation.
There are electromagnetic interference in the use of the environment.
The audio input device itself has problems.
HOW TO SOLVE:
Power and power amplifier should maintain a certain distance. To avoid electromagnetic interference, it is best to use high quality power supply, power supply will be stable.
If you use transformer and other power supplies, it is best to use iron cover to prevent electromagnetic interference.
2>. Software problem:
Interference of Audio driver settings
Interference of Player effects
HOW TO SOLVE:
When the power amplifier is connected to the computer or mobile phone, the relevant special effects software or sound card driver special effects can be set off.
Using special effects to ensure that the output of the power amplifier is not affected.

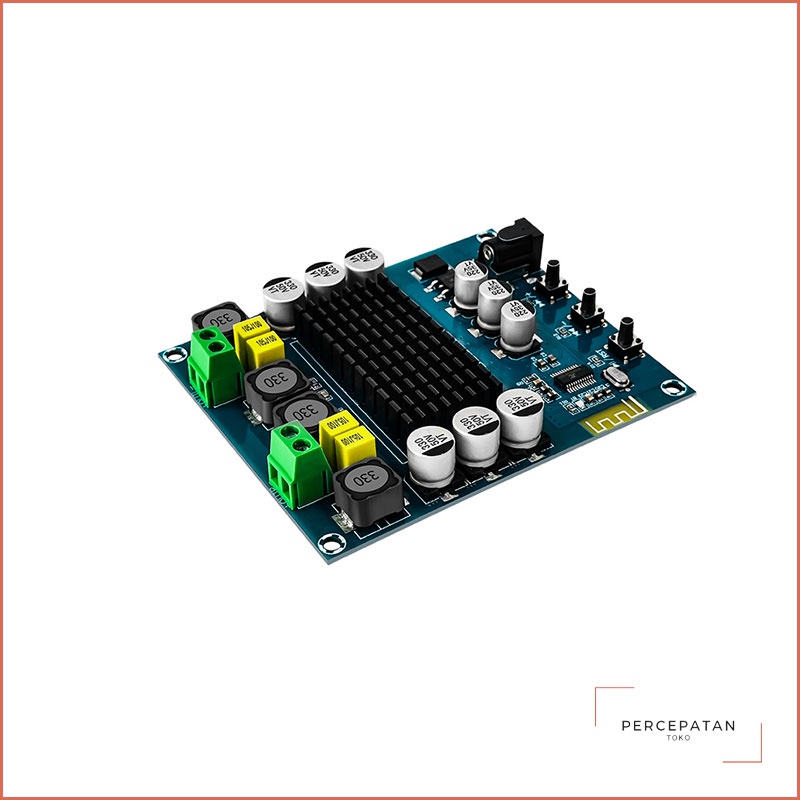

Package Included:
1 x XH-M548 2x120W Power Bluetooth Dual Channel Digital Amplifier
