XH-M131 Photosensitive Resistor Light LDR Relay Module Detection Saklar Otomatis Relay 12V Sensor La

Detail XH-M131 Photosensitive Resistor Light LDR Relay Module Detection Saklar Otomatis Relay 12V Sensor La

Description:

- using the photoresistor induction light intensity comes with the relay, direct control load
-Distribution bit sensitivity adjustment, start relay threshold set by adjusting potentiometer, when the dark this threshold, the module relay is energized, bright this threshold, the relay release;
-12 V power input is designed for relay board regulator transistor to provide sensor Used to make the product more stable and reliable;
-onboard optocoupler isolation drive relay, the effective protection of the chip to make the product more reliable work;
-has four fixed bolt hole for easy installation


Specification:

Module using the instructions:
1, photoresistors module is most sensitive to ambient light, generally used to detect the brightness of the ambient light.
2, the module when the ambient light is darker than the threshold value is set, the relay is energized, the common terminal and the normally start is turned on, when external ambient light is brighter than the set threshold value, the relay is switched off, the common terminal and the normally closed end connected;
3, the public side, normally open, normally closed three ports, the equivalent of a dual-control switch, relay coil power, public end and often the beginning of conduction, radio, public end normally closed terminal conduction;
Supply voltage: 12VDC
Current: Greater than 100mA
Load: 250V 10A AC or 30V 10A DC (the current is less than this range can be used)
Size: 5.3cm * 3cm

Package Includes:
1Piece DC 12V Photoresistor Module Relay Light Detection Sensor Light Control Switch

**Aplikasi:
1. PJU (Penerangan Jalan Umum)
2. Rumah
3. Pabrik
4. Restoran
5. Rumah Ibadah
6. dll

**Spesifikasi:
Power supply: 12V DC (with reverse protection)
Relay 10A 250VAC atau 10A 28VDC
Dengan 3 output: COM, CK (NO), CB (NC)
Sensitivitas dapat diatur dengan trimpot
Ukuran: 53x31x19mm

**Catatan:
NO: Normally Opened
NC: Normally Closed
COM: Common

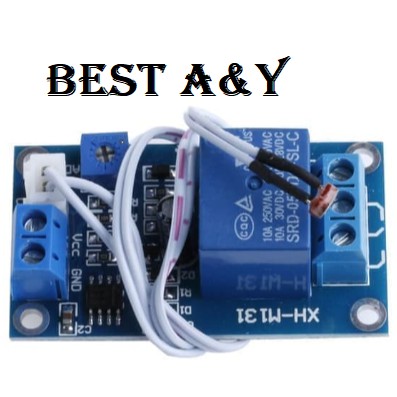

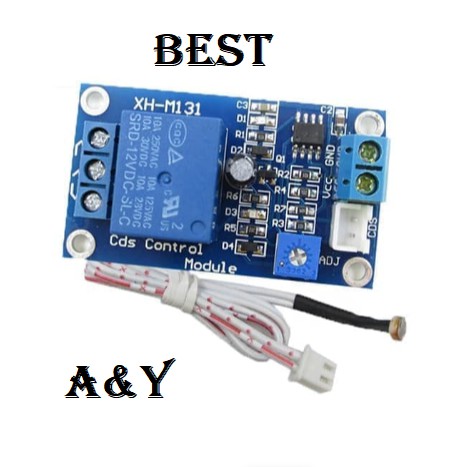

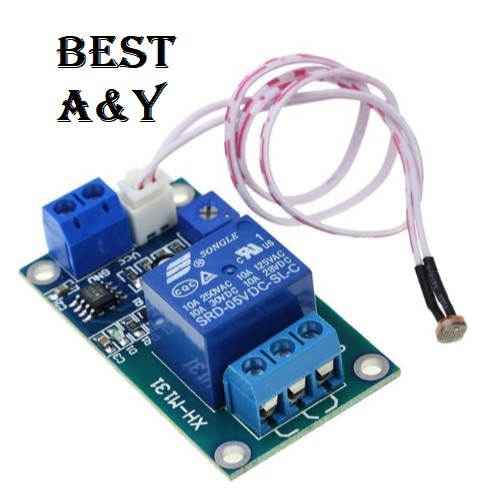

Gambar produk
