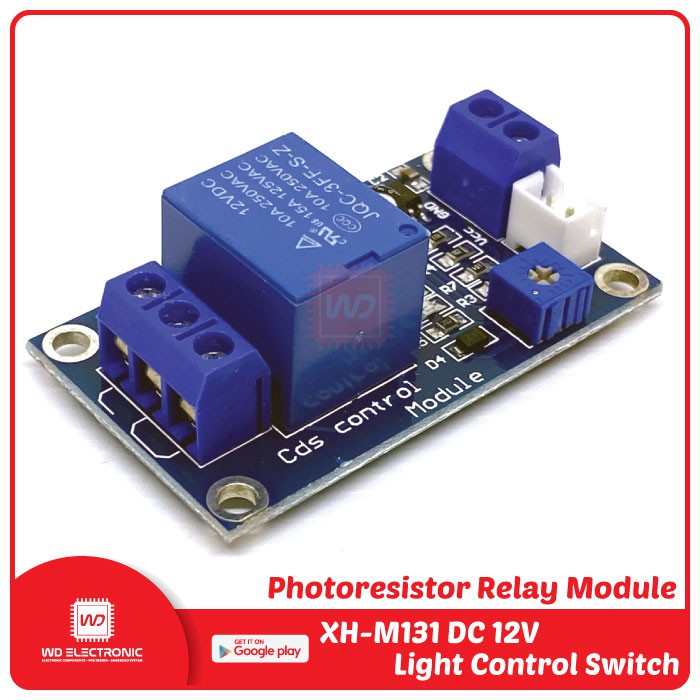

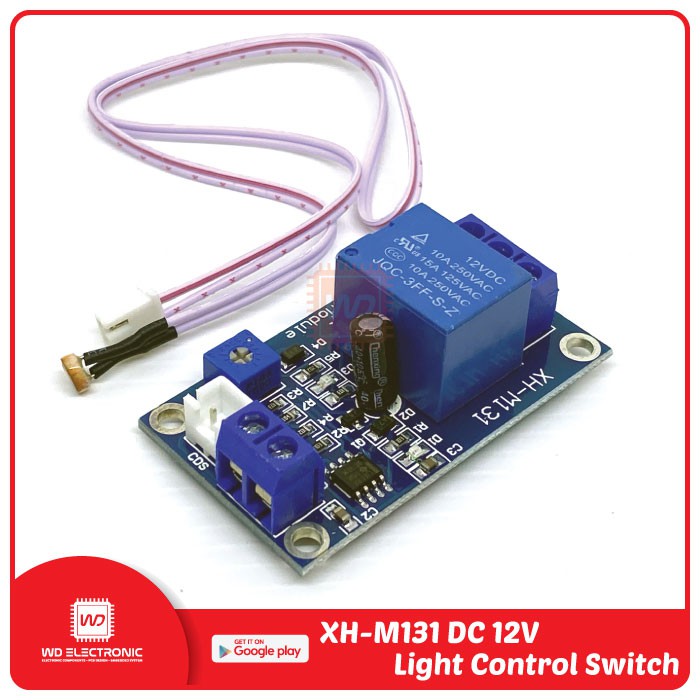

Detail XH-M131 DC 12V Light Control Switch Photoresistor Relay module

Hi #RekanEasyWare ...
EasyWare Part#: EP000772

SPESIFIKASI :
- Light threshold can be adjusted by potentiometer to set the relay start
- Input: DC 12V
- Load capacity: 10A / AC 250V or DC up to 30V
- RED LED ON: Indicate the Power ON
- BLUE LED ON: Relay is working

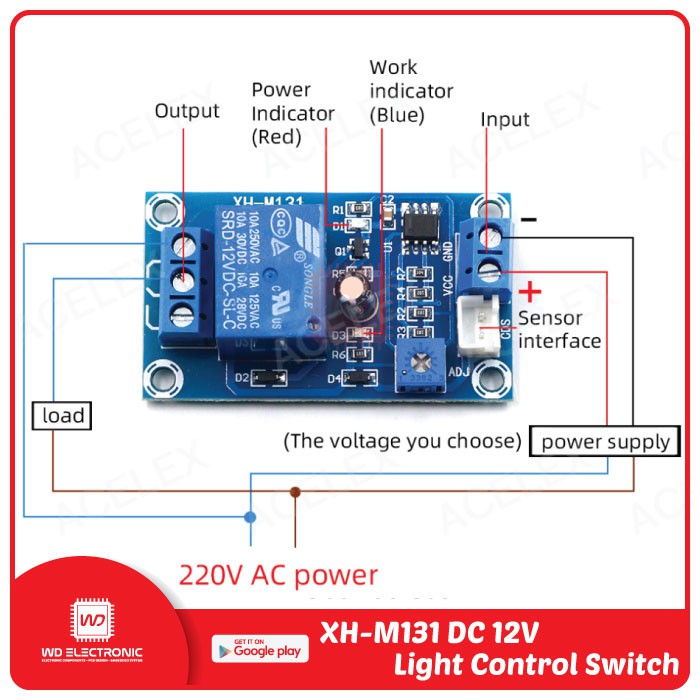

- Module output terminal has three ports
- Normally open ( NO )
- Common terminal ( COM )
- Normally closed ( NC )

KELENGKAPAN :
- 1pcs XH-M131 DC 12V Light Control Switch Photoresistor Relay Module
