XGECU T48 TL866 Universal Programmer Mendukung 31000 + IC Untuk EPROM

Detail XGECU T48 TL866 Universal Programmer Mendukung 31000 + IC Untuk EPROM

Ready Stok langsung order saja
100% unit BARU
-----
Garansi quality CHECK sebelum kirim
GARANSI toko 1BULAN
-----
Dikirim dari JOGJA
Garansi packing AMAN (GRATIS bublewarp/kardus)

Deskripsi produk:
Outstanding advantages of TL866II Plus programmer
1. Support one computer with 4 programmers to burn at the same time.
2. Small size, high density, low power consumption, high performance, a comprehensive programmer that really does not generate heat.
3. All chips do not need an external power supply, and their own low power consumption ensures that the USB port can provide sufficient power.
4. Internal 40-pin overvoltage protection, VPP, VCC four-level overcurrent protection. Doing a short circuit will not reset the PC or programmer.
5. Wide range of chips 15000+ support, support serial series, parallel series 40/44/48PIN high-capacity FLASH.
6. Unique serial programming ICSP interface, supports serial download and high-speed parallel high-voltage programming at the same time. Note: TL866CS does not support ICSP interface programming.
7. Really test 74/54 CMOS4000 series integrated circuits. Can locate the gate circuit error.
8. The chip serial number function is complete and practical.
9. The original support AVR single-chip microcomputer uses the internal RC correction byte Calibration to encrypt the mass production operation of the chip. The software after brute-force cracking cannot be directly run on another chip of the same model.
10. Poor contact or wrong insertion of automatic chip pins to avoid damage to the device.

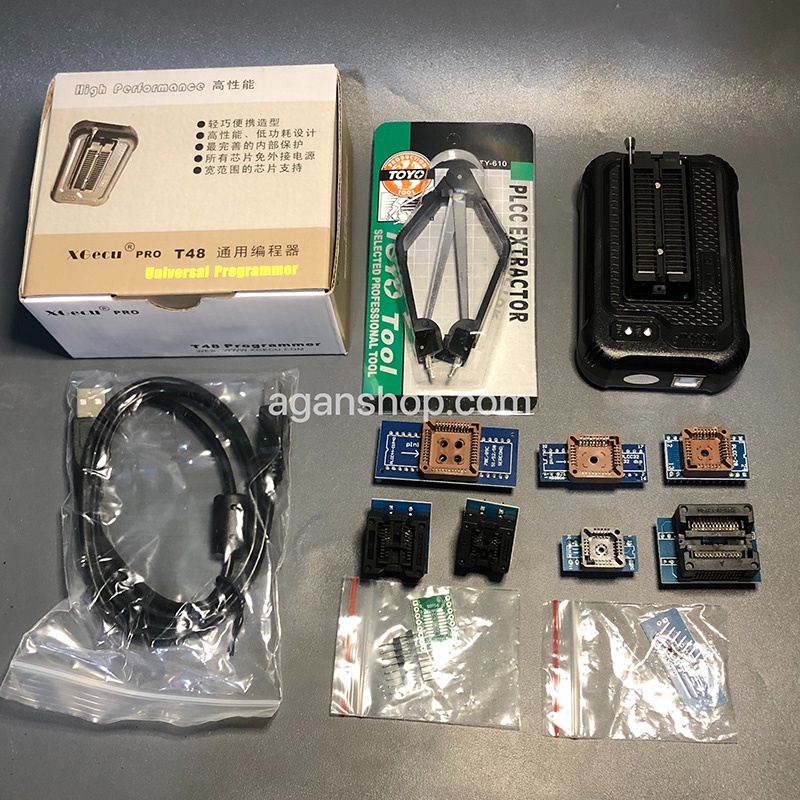

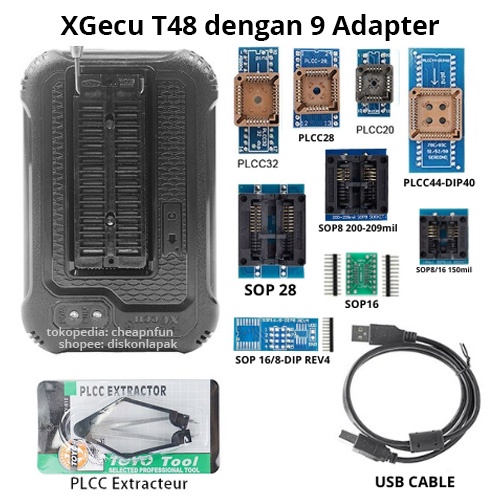

Isi dalam paket:

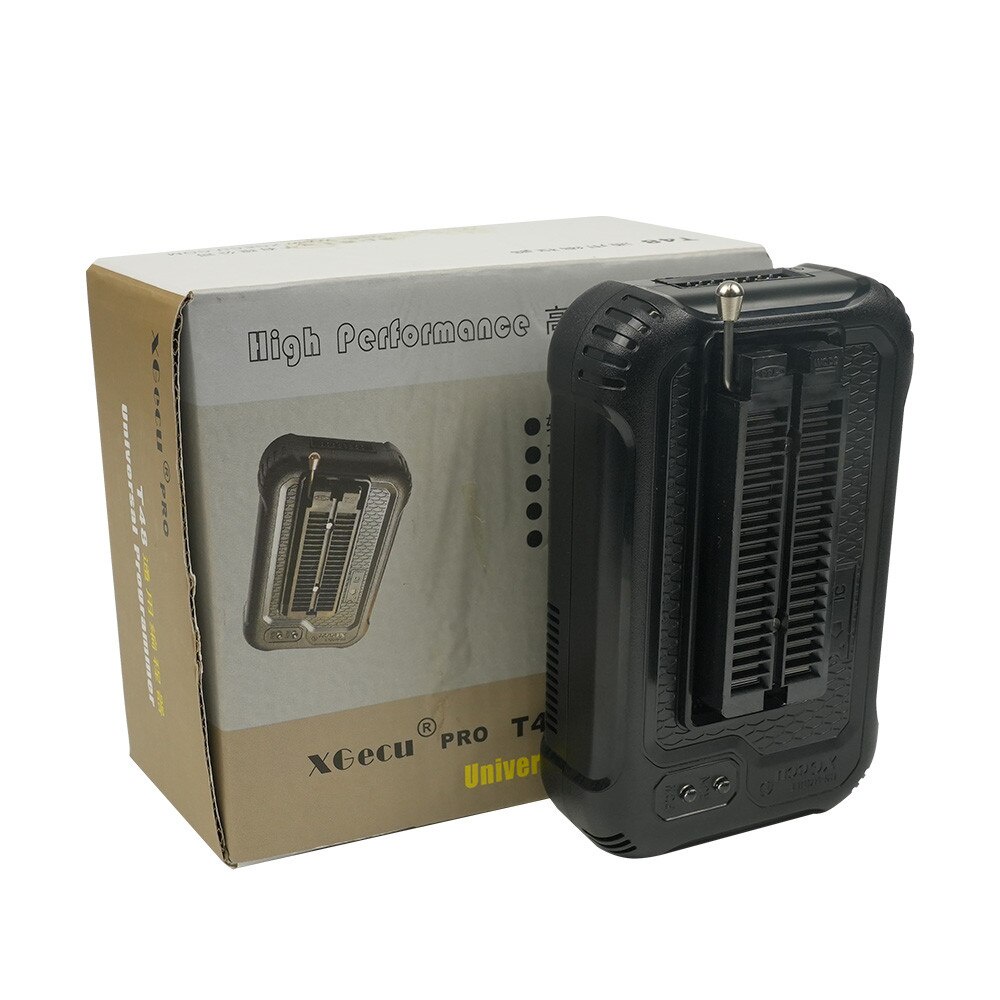

1 x XGECU T48 TL866
1 x USB Cable
1 x PLCC44-DIP40
1 x PLCC28
1 x PLCC32
1 x PLCC20
1 x SOP16/8-DIP8 REV4
1 x SOP16
1 x SOP8 200-209mil
1 x SOP8/16 150mil
1 x SOP28 300mil
1 x Box Kemasan

Gambar produk
