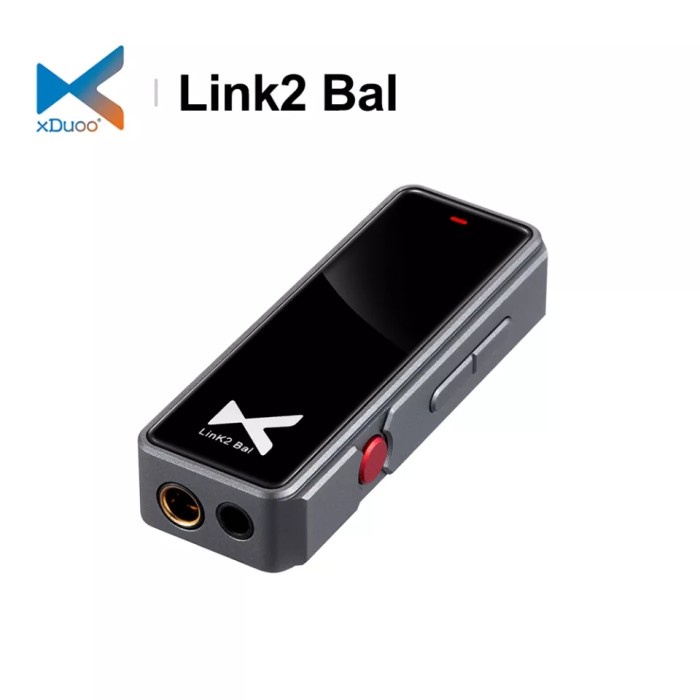

XDUOO Link2 Bal DAC Amplifier Type-C to 3.5 4.4 Dual CS43131 DSD256

Detail XDUOO Link2 Bal DAC Amplifier Type-C to 3.5 4.4 Dual CS43131 DSD256

Dual CS43131 DAC Chips
270mW High Power
High Resolution& 3.5mm/4.4mm Dual Output

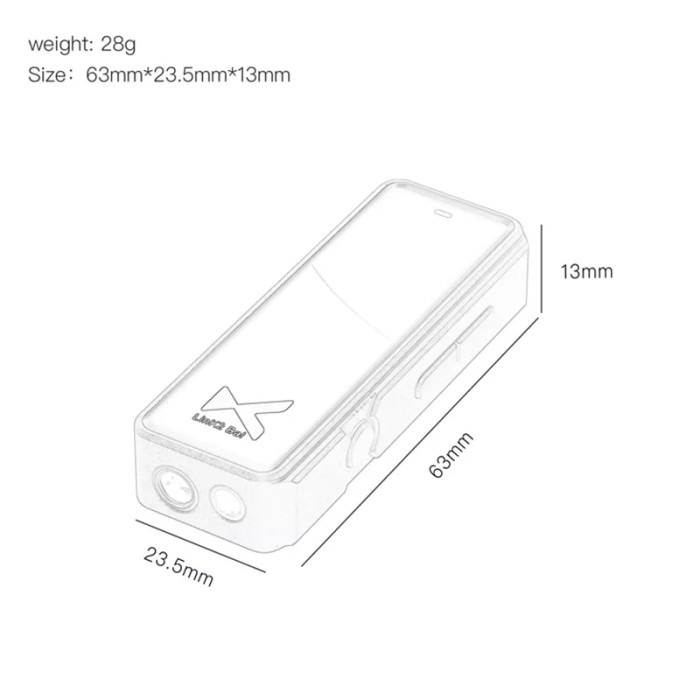

Lightweight and Compact

Dual CS43131 DAC Chips, Low Distortion
Link2 Bal uses two CS43131 as DAC chips, each channel has better decoding performance and high resolution. The SNR up to 127dB to ensure a clean and clear sound, with most earphones, you don't have to worry about the existence of background noise. And the decoding chip, amp, and digital receiving chip are all powered separately to further reduce distortion and floor noise of the output.

270mW High Power, Release The Potential of Earphone
Using the Tl LM27762 chip with a conversion efficiency of more than 85%, Link2 Bal provides ultra-low noise electricity, and the current output of up to 250mA is used to power the amp circuit, thus providing high precision and high output current drive capability to ensure dynamic output and restore the sense of hearing.

270mW High Power, Release The Potential of Earphone

Using the Tl LM27762 chip with a conversion efficiency of more than 85%, Link2 Bal provides ultra-low noise electricity, and the current output of up to 250mA is used to power the amp circuit, thus providing high precision and high output current drive capability to ensure dynamic output and restore the sense of hearing.

High Resolution& 3.5mm/4.4mm Dual Output

Ordinary mobile phones can only decode 16bit/48kHz audio while LINK2 BAL supports up to PCM32bit/384kHz and native DSD256, maximize the potential your dynamic driver headphones. It will be more brilliant with high-quality headphones. Link2 Bal has 4.4 balanced output and 3.5 unbalanced output, no need for adapters even if you have a variety of headphones.

Tips for use
The LED Color Will Change According To The Sample Rate Of The Song:
LED Color／Format／Sampling Rate:
Red-PCM-48k/44.1kHz
Blue-PCM-88.2k-384kHz
Green-DSD-64-256(DOP-NATIVE)

Mode Instruction:
Red Button: Pause/playback
Volume Button: +/-
USB Switch: UAC2.0/UAC1.0
Power Mode: Normal/Turbo
