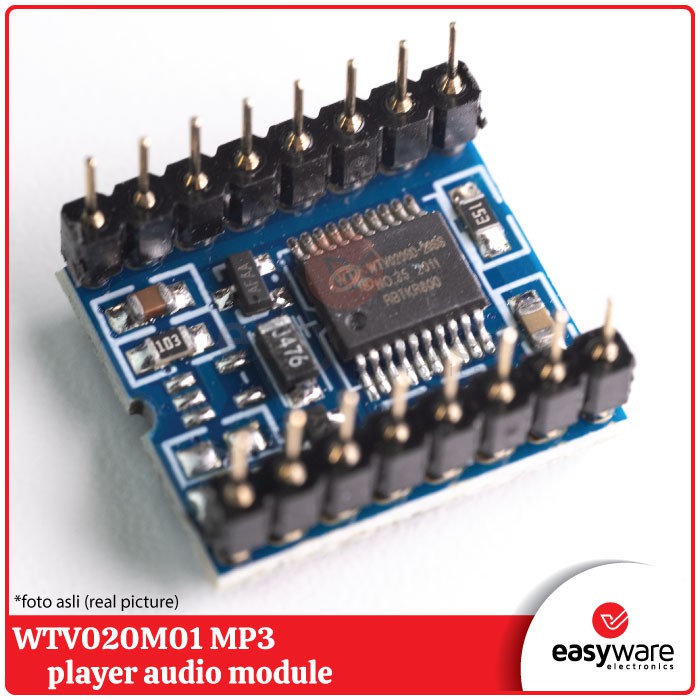

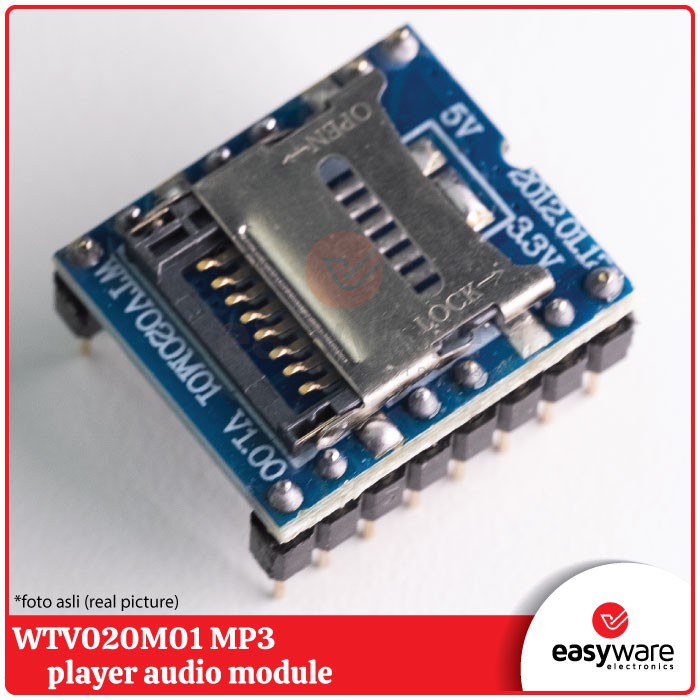

Detail WTV020M01 MP3 player audio module

Hi #RekanEasyWare ...
EasyWare Part#: EP001796

Product characteristics :
- The product supports plug-maximum the 1G capacity of the SD card;
- Supports playback of 4Bit ADPCM format files;
- Automatically recognize the voice files;
- Loadable 6KHz to 32KHz, 36KHz sampling rate AD4 audio;
- Loadable 6KHz ~ 16KHz sampling rate WAV audio;
- 16bitDAC and PWM audio output;
- Can store up to 512 voice;
- WTV020-SD-20S, WTV020-SD-16P two module types;
- Support micro-processor and key control;
- Voice playback can call any paragraph;
- Power-down save operation data capabilities;
- Loaded voice without software assistance to the SD card can be placed directly on the voice;
- Support file combination play, including mute combination;
- Operating voltage: DC2.5 ~ 3.6V;
- Quiescent Current: 16uA (SD card is not inserted)

Package :
- 1 pcs WTV020M01 MP3 player audio module
