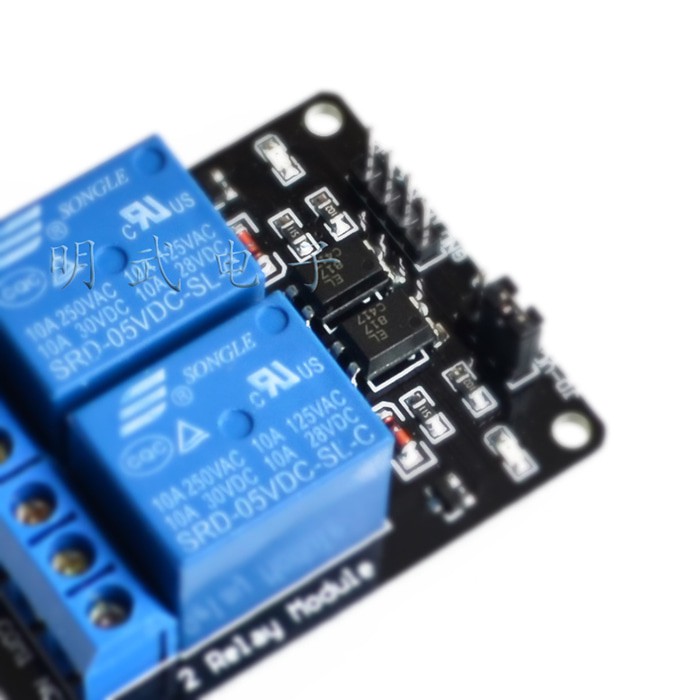

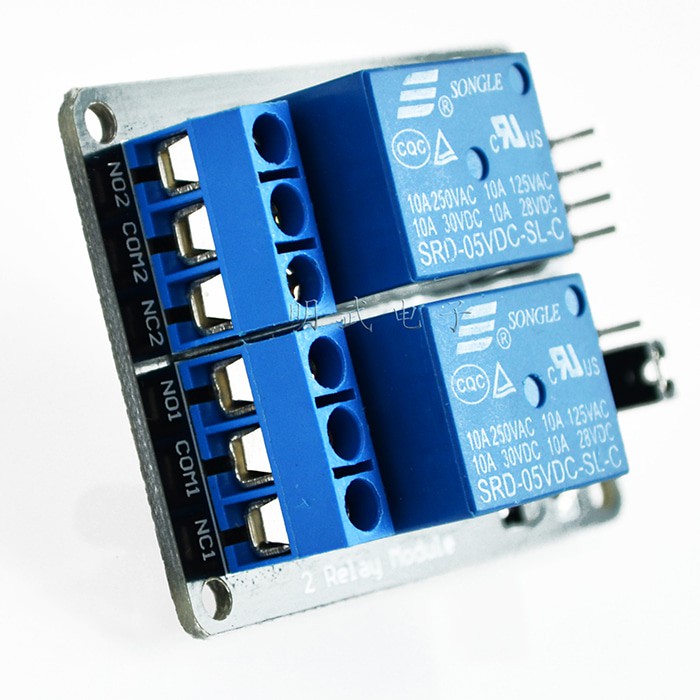

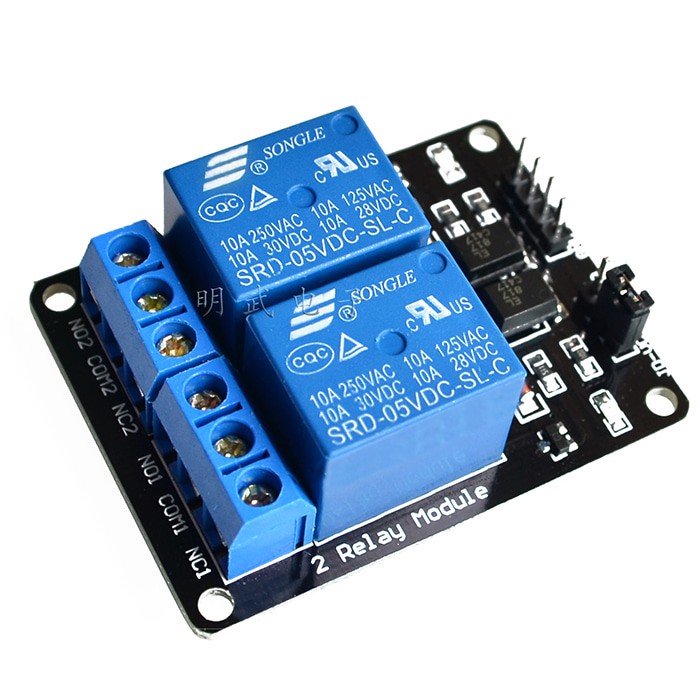

Detail With optocoupler 12v 2 channel relay module

stock per 18 okt = 100 pcs
Module parameters:

1. Size: 50.5mm (length) * 38.5mm (W) * 18.5 (H)
2. Weight: 31g
3.PCB Color: Black
4. board four weeks with four fixed screw holes, hole diameter 3.1mm, easy to
install and fixed
5. Relay selection of quality loose music relay, SPDT. A common terminal, a
normally open, a normally closed terminal
6. optocoupler isolation, good anti-jamming
7. pull low, high release. Energisation status indicator light, the release
status LED is off
8.VCC system power, JD_VCC relay power. It can plug in jumper

Electrical parameters:
Supply voltage: 12VDC
Current: More than 100mA
load: 250V 10A AC or DC 30V 10A


Wiring instructions:
VCC: positive power supply system
GND: negative power supply system
IN1 - IN2: Relay control port
(Do not reversed, we do not cause the module to burn to be returned.)
