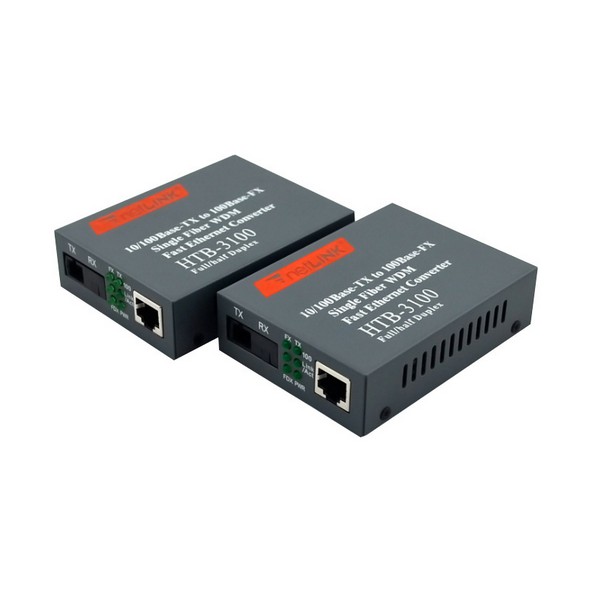

【With adapter】1 Pair HTB-3100AB Optical Fiber Media Converter Fiber Transceiver Single Fiber Converter SC 10/100M Singlemode Single Fiber

Detail 【With adapter】1 Pair HTB-3100AB Optical Fiber Media Converter Fiber Transceiver Single Fiber Converter SC 10/100M Singlemode Single Fiber

Feature :
With new ic core chipset , The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex.
UTP port supports MDI / MDI-X auto crossover
Supporting flow control
Supporting 1552 Byte packet
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
the fo plug is flat.
Specification
Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
MAC address table: 1K
Connector:
UTP: RJ-45 10/100Mbps;
Fiber: SC 100Mbps
Cable:
UTP: Cat. 5 UTP (the max distance up to 100m)
Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
Flow Control
Full Duplex: IEEE802.3x
Half Duplex: Backpressure
LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power: AC 110V - 220V to DC 5V; DC48V to DC 5V
Ambient temperature0 ～ 50℃
Storage temperature-20 ～ +70℃
Humidity: 5% ～ 90%
Dimensions:
Internal power: 30×110×140mm
External power: 26×70×93mm
Product Compatibility 8 pin he can a usb to lan cable , so that it can work,with 2A adapter
no poe function it can to 200m, not net link s

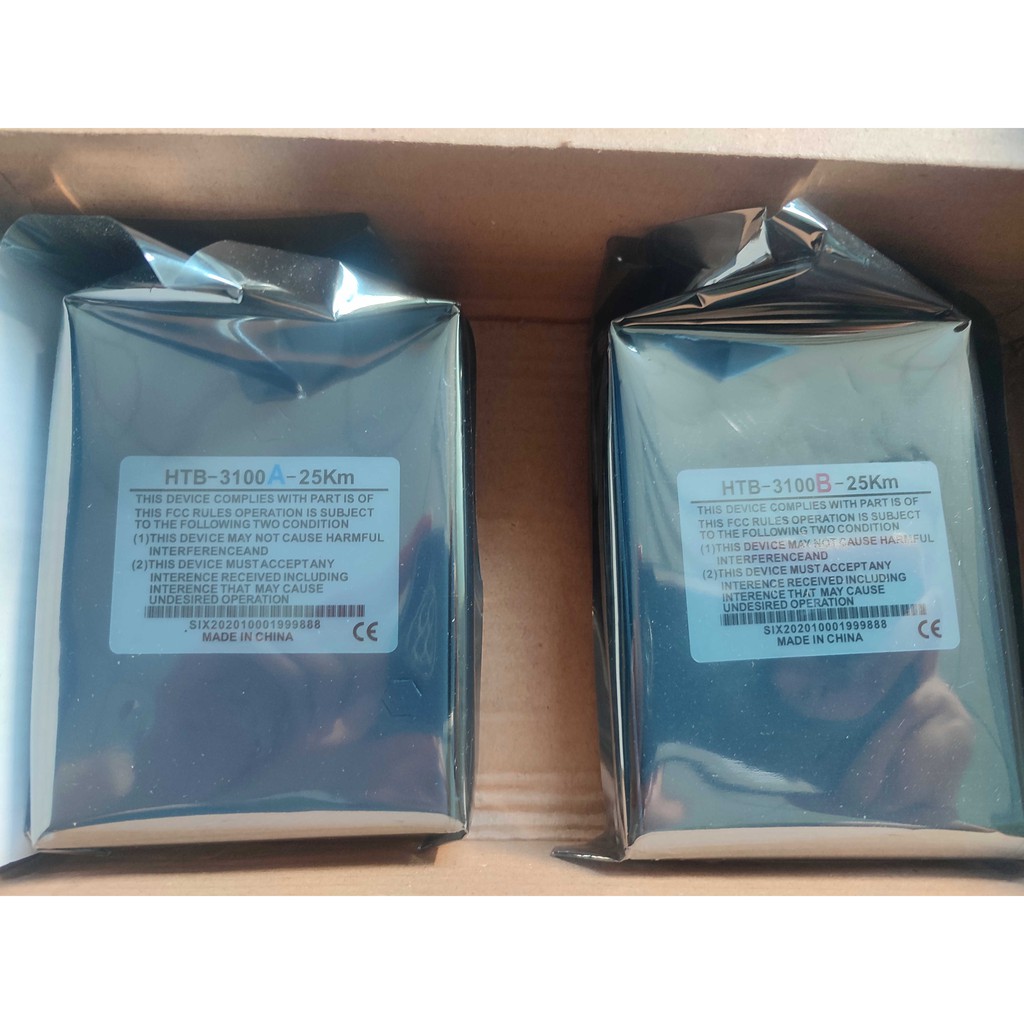

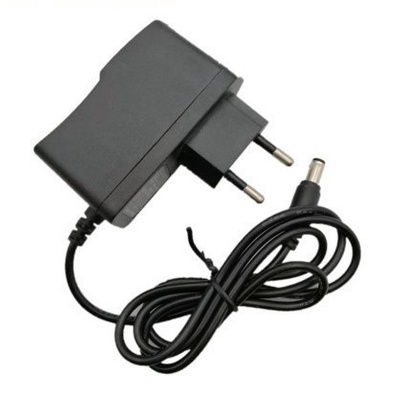

Pacakge: 1 pair HTB-3100AB , 2 Pcs EU adapter
