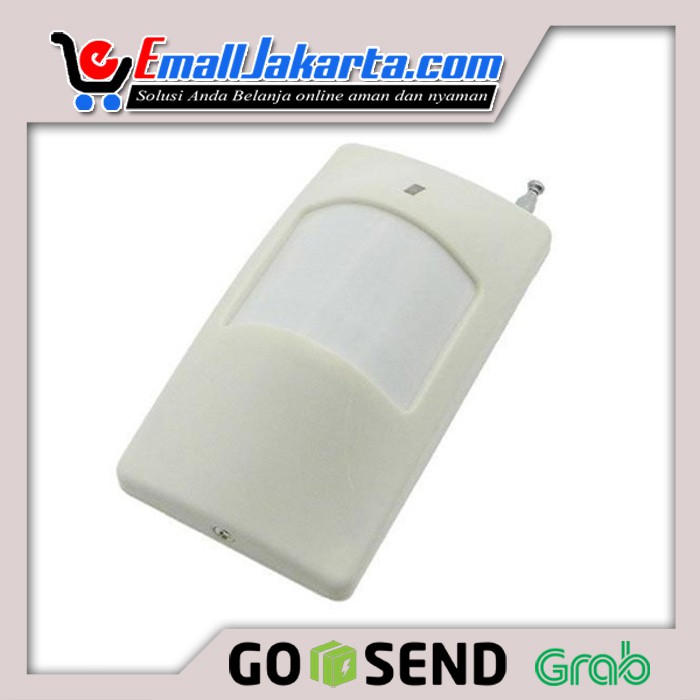

Detail WIRELESS MOTION SENSOR DUAL PIR DETECTOR SENSOR GERAK
Deskripsi WIRELESS MOTION SENSOR DUAL PIR DETECTOR SENSOR GERAK TECHNICAL SPECIFICATION
Operating voltage: DC 3V (2*AA battery) Static current: 25uA Alarm current :15mA Detecting distance 9-18m Detecting agle :110 Code form :2262 or 1527 Radio frequecny : 315MHz or 433MHz Radio distance :200m (open area) Low battery indicator : Yellow LED Alarm indicator :red LED Range of coverage :11 distance ,8 middle,5 vicinites Sensor : dual element infrared sensor Operanting temperature :95% RH ( no congelation ) Anti RF interference ; 10MHz -1GHz 20V/m Installation mode: wall mounted or hanged in corner Installation height :1.7 to2.5m (2.2m is proposed) Outline Size: 59L*39.5W*107H mm
