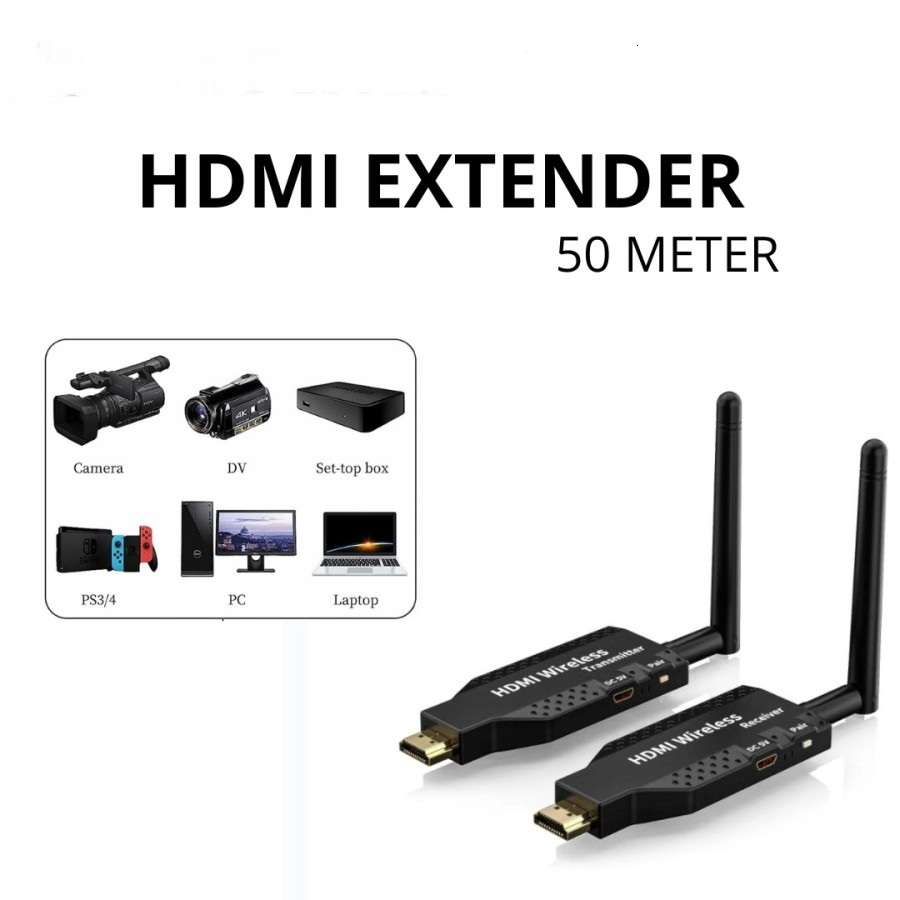

Wireless 5G HDMI Extender 50 meter

Detail Wireless 5G HDMI Extender 50 meter

Wireless 5G HDMI Extender 50 meter

This HDMI wireless extender includes transmitter unit and receiver unit, allows to transmit and extend HDMI signal up to 50 meters long away wirelessly, it has strong anti-interference ability by running at 5GHz operation frequency, and supports point to point connection. IR passback with 20-60KHz frequency helps to remote control the source device from the receiver side. It is really a very good solution for meeting, conference, home entertainment and multi-media education etc.

Features :
- Plug and play, easy installation
- Highest resolution up to 1080p full HD.
- Support IR passback with 20-60KHz frequency
- 50 meters long range transmission distance
- Support HDMI1.3, compatible with HDCP1.2

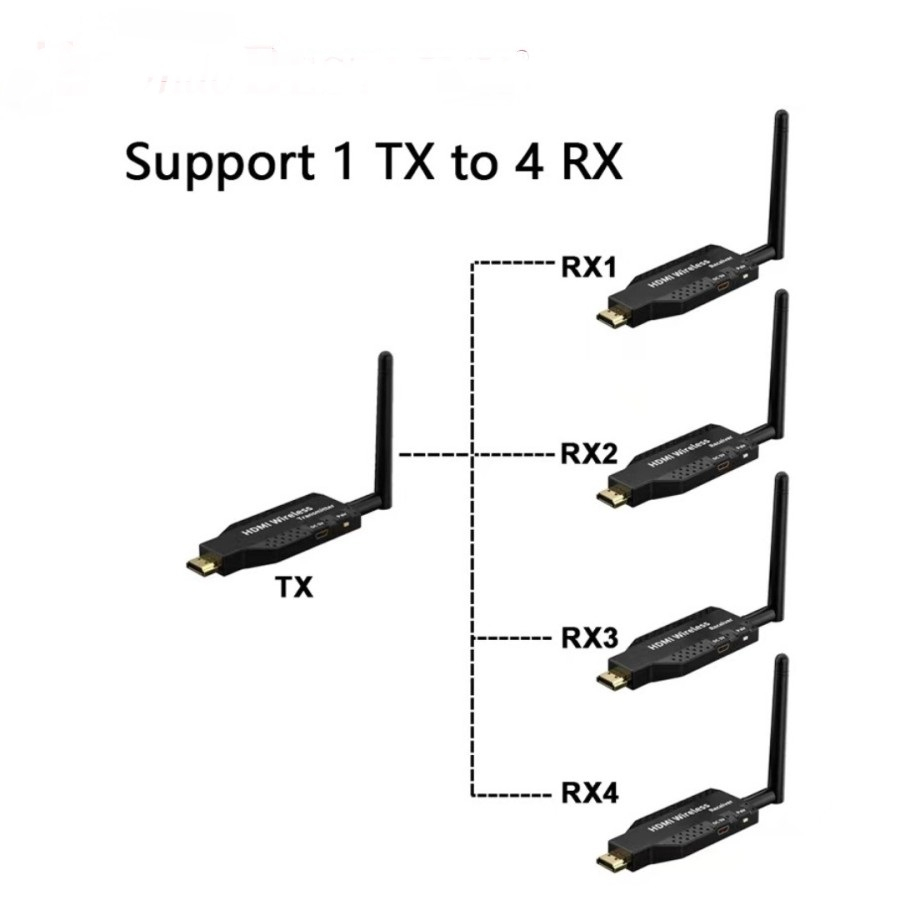

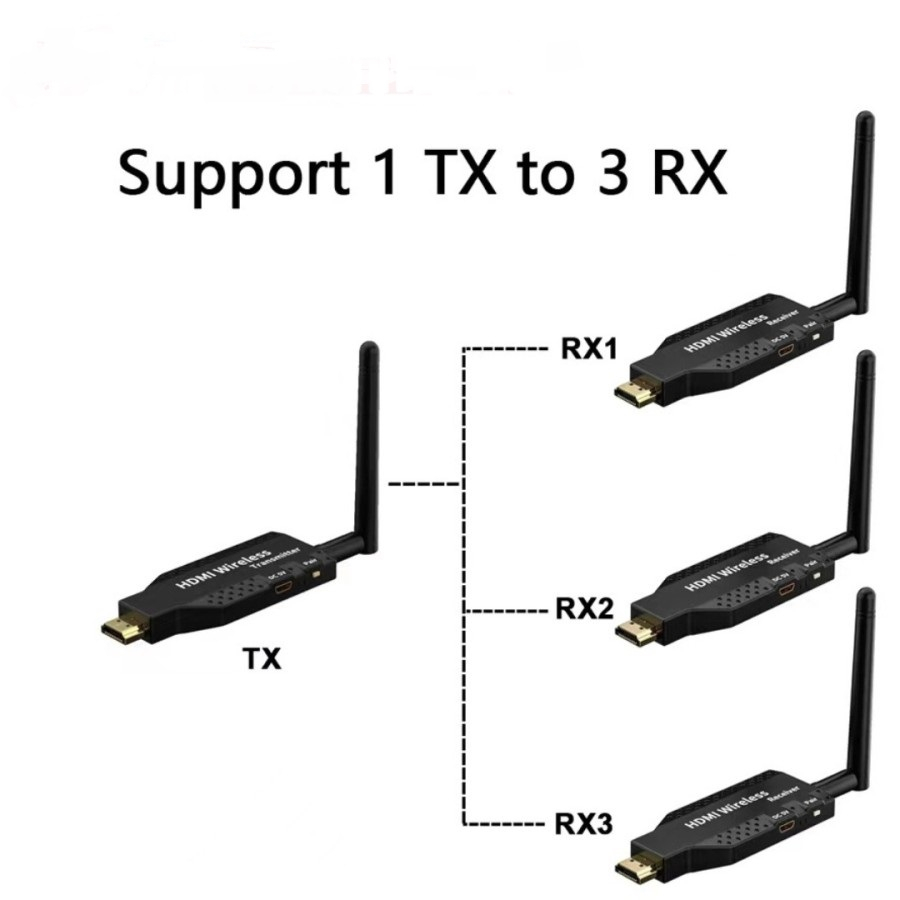

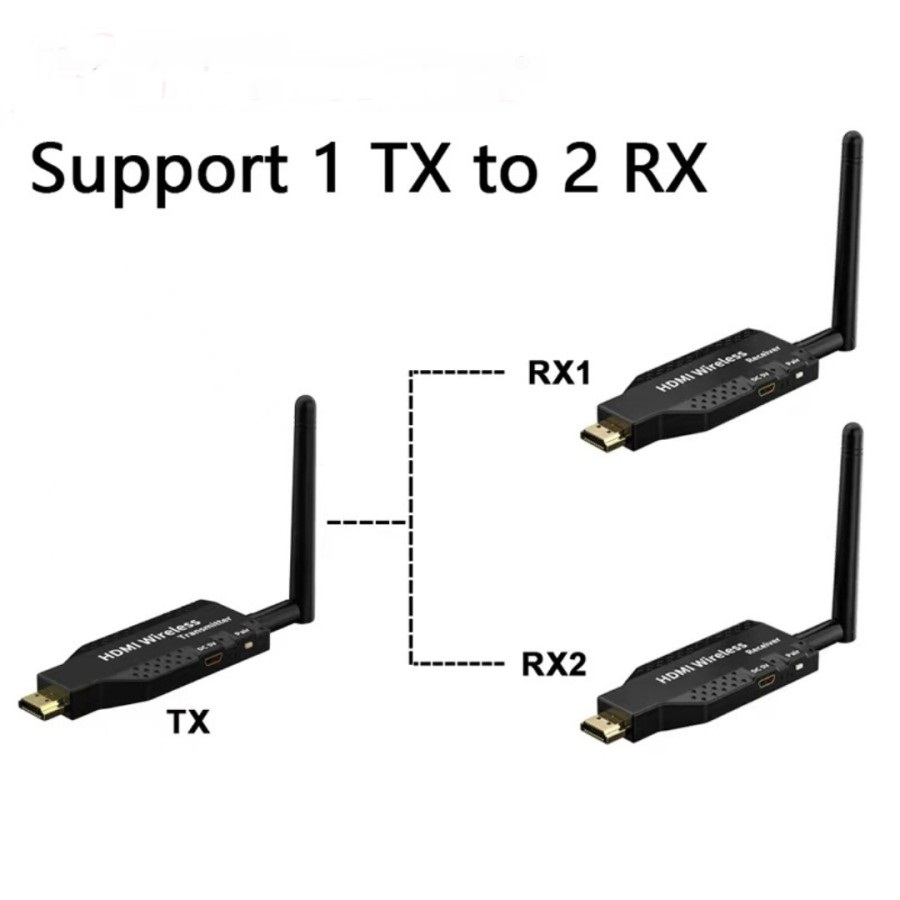

- Support point to point wireless configuration
- Strong anti-- HDMI compliance : HDMI 1.3
- HDCP compliance : HDCP 1.2
- HDMI resolution supported : 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
- IR remote control : Support IR passback with 20-60Khz frequency
- Audio format supported : L/R stereo audio
- Maximum transfer rate : 10.2Gbps
- Input Output TMDS signal : 0.7 - 1.5Vp-p ( TMDS )
- Input Output DDC signal : 5Vp-p ( TTL )
- Transmission methods : 5G Wireless Transmission
- Transmission distance : 50meters sight distance
- Latency : ≤ 200 ms
- Power supply : TX (DC5V 1A) , RX (DC5V 2A)
- Dimension : TX ( 88.9 x 38.9 x 15.7mm ), RX ( 131.6 x 95.0 x 19.9mm )
- Material : TX ( plastic ), RX ( Iron alloy metal )
- Weight : TX ( 30gram ), RX ( 220gram )
- Color : Black

Package Content :

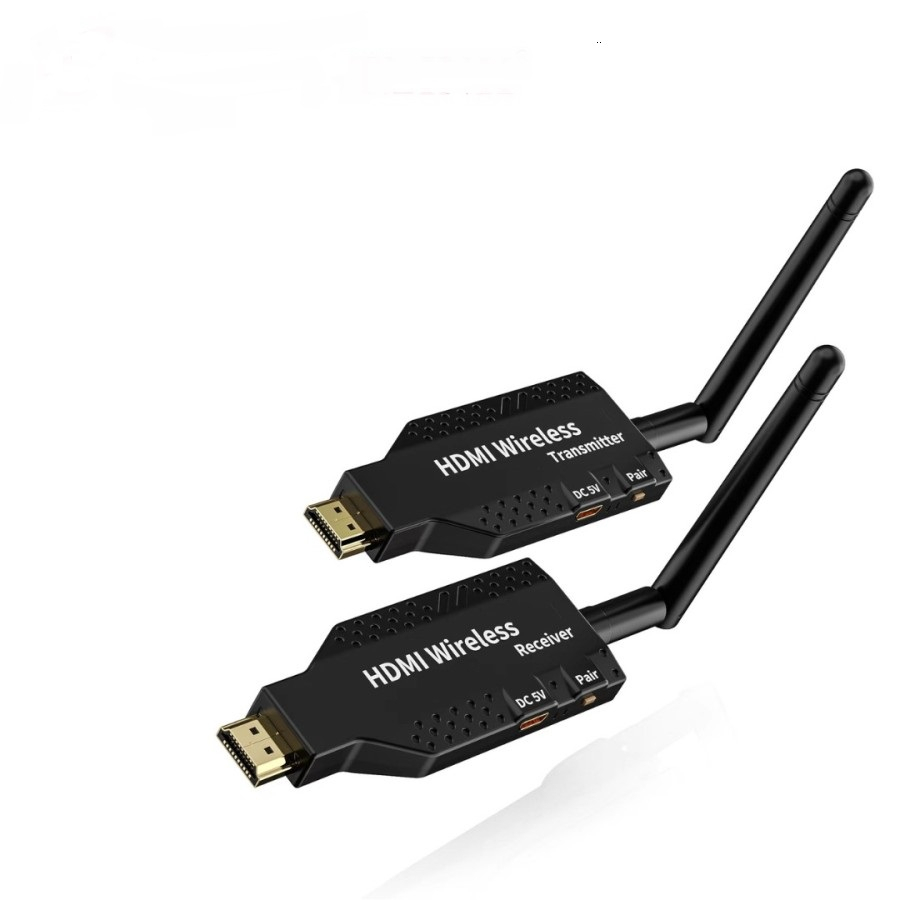

1x Wireless HDMI Transmitter Dongle
1x Wireless HDMI Receiver
2x Antenna
1x hdmi female2 konektor
2x USB power cable
2x hdmi extension
