WIRE TRACKER XQ-350 / LAN TESTER / KABEL TESTER

Detail WIRE TRACKER XQ-350 / LAN TESTER / KABEL TESTER

Wire Tracker berfungsi untuk Mencari dan menentukan kabel dalam suatu sistem elektronik ataupun sistem kelistrikan umum

Fungsi Wire Tracker :

1. Tracking kabel telepon atau kabel elektronik /listrik lainnya

2. Tracking kabel dalam suatu jaringan

3. Tes kontinuitas / konektivitas kabel

4. Mengecek Apa ada kabel jaringan ada yang terputus atau tidak

Deskripsi :

1. Cable Tester for UTP STP RJ45 RJ11;

2. Automatic efficient scan for the miss wiring, disorder cable, open and short circuit;

3. TEL BNC test available(Adapter needed);

4. Remotely test cable up to 1000 ft in length ( remote kit included );

5. Protective power switch for low power consumption;

6. High quality protecive case provides more secure protection;

7. Judge continuity of the cables or wires;

8. Track the cables or wires, and diagnose the break point;

9. Receiver the tone signal on the cables or wires (telephone line);

10.Identify the state in the working telephone line (clear ring, busy);

a single solid tone or a dual alternating tone to the object cables or wires.

Fitur :

1. 100% brand new

2. Streamlined design and easy to carry

3. Comes with earphones usable in noisy situation

4. Flexible and versatile interface

5. Sensitive and adjustable volume control

Daya :

Emiter: 10mA Receiver: 30mA

Signal transfe mode: Digital signal

Signal output level: 8Vp-p

Signal transfer distance: 3Km

Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm

Power: by 2 x DC 9V Battery

Paket Sudah Termasuk :

1 x Cable Emitter

1 x Cable Receiver

1 x RJ11 Cable

1 x RJ45 Cable

1 x Cable with Crocodile Clamp

2 x DC 9V Battery

1 x Tas hitam kecil sehingga mudah di bawa pergi

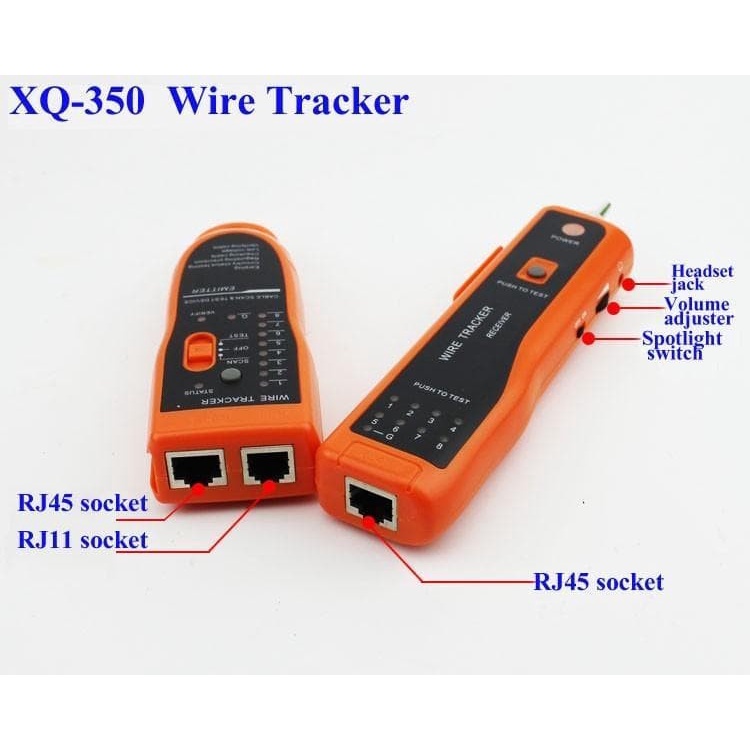

Gambar produk
