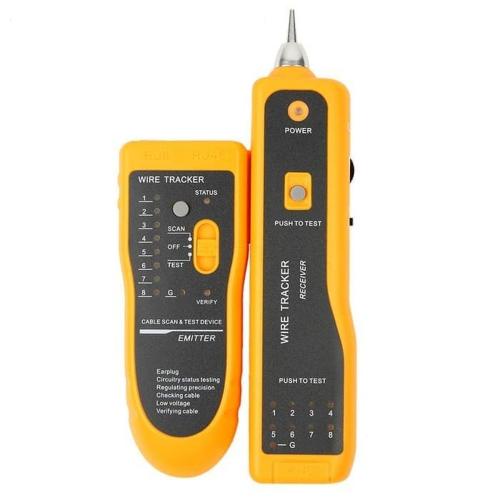

Wire Tracker JW-36 LAN Ethernet Network Telephone Cable Tester Finder M

Detail Wire Tracker JW-36 LAN Ethernet Network Telephone Cable Tester Finder M

1 pc Telephone Wire Tracker Tracer Toner Ethernet LAN Network Cable Tester Detector Finder AUA168 RJ11 RJ45 Cat5 Cat6
Description:
1. Cable Tester for UTP STP RJ45 RJ11;
2. Automatic efficient scan for the miss wiring, disorder cable, open and short circuit;
3. TEL BNC test available(Adapter needed);
4. Remotely test cable up to 1000 ft in length ( remote kit included );
5. Protective power switch for low power consumption;
6. High quality protecive case provides more secure protection;
7. Judge continuity of the cables or wires;
8. Track the cables or wires, and diagnose the break point;
9. Receiver the tone signal on the cables or wires (telephone );
10.Identify the state in the working telephone (clear ring, busy);
11.Send a single solid tone or a dual alternating tone to the object cables or wires.
color:yellow

Package List
1 x Cable Emitter
1 x Cable Receiver
1 x RJ11 Cable
1 x RJ45 Cable
1 x Earphone
1 x Cable with Crocodile Clamp
1 x User Manual
Spesifikasi:
- Transmitter Working Current: '10mA
- Receiver Working Current: '30mA
- Signal Transfer Mode: Digital Signal
- Signal Output Level: 8Vp-p
- Signal Transfer Distance: '3km
- Transmitter Size: 126 x 49 x 34mm
- Receiver Size: 175 x 42 x 25mm
- Power Supply: 2 x 9V 6F22 Batteries
- Weight: 159g

Kelengkapan:
- Wire Tracker Transmitter JW-360
- Wire Tracker Receiver JW-360
- RJ11 Cable
- RJ45 Cable
- Cable With Crocodile Clamp
- Earphone
- User Manual

Gambar produk
